JY30D-QDT3 (1980)
Toyota Toyoace
Production
Apr 1980
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8004-8308)JY30..15T

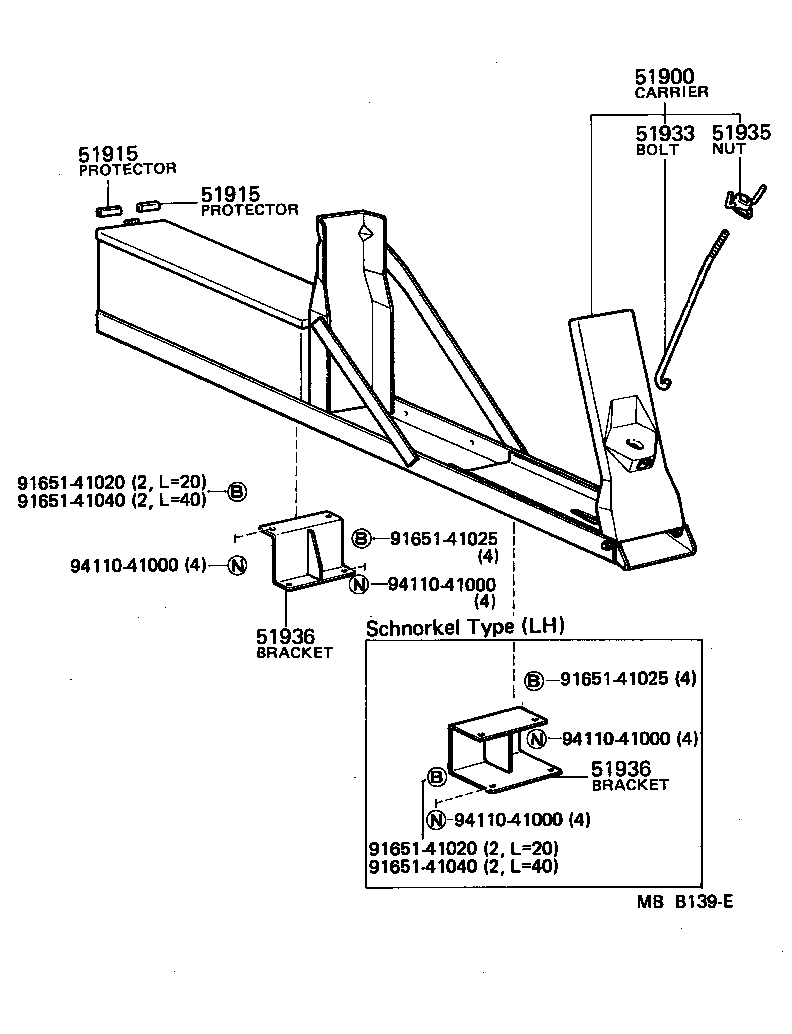

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-25022 |
LY20,30,RY20,31..T3..15T FR=6.00-15-8,RR=7.00-15-10 |
1 | ||
| 51900-35080 |
LY20,30,RY20,31..WT RR |
1 | ||
| 51900-35081 |
LY20,30,RY20,31..WT RR |
1 | ||
| 51930-96250 |
JY30..15T |
1 | ||
| 51930-96251 |
JY30..15T |
1 | ||
| 51900-25040 |
LY20,30,RY20,31..WT FR |
1 | ||
| 51915 - PROTECTOR, SPARE WHEEL CARRIER | ||||
| 38989-96301 |
JY30..15T |
2 | ||
| 51915 - PROTECTOR, SPARE WHEEL CARRIER | ||||
| 38989-96301 |
JY30..15T |
2 | ||
| 51933 - BOLT, SPARE WHEEL CARRIER EYE | ||||
| 51951-96307 |
JY30..15T |
1 | ||
| 51935 - NUT, SPARE WHEEL CARRIER EYE | ||||
| 51903-96302 |
JY30..15T |
1 | ||
| 51936 - BRACKET, SPARE WHEEL CARRIER | ||||
| 51938-96250 |
JY30..15T LH,W/SCHNORKEL |
1 | ||
| 51937-96250 |
JY30..15T |
2 | ||
| 51937-96250 |
JY30..15T RH,W/SCHNORKEL |
1 | ||
| 51937-96251 |
JY30..15T |
2 | ||
| 51937-96251 |
JY30..15T RH,W/SCHNORKEL |
1 | ||
| 51938-96251 |
JY30..15T LH,W/SCHNORKEL |
1 | ||
| 51936 - BRACKET, SPARE WHEEL CARRIER | ||||
| 51938-96250 |
JY30..15T LH,W/SCHNORKEL |
1 | ||
| 51937-96250 |
JY30..15T |
2 | ||
| 51937-96250 |
JY30..15T RH,W/SCHNORKEL |
1 | ||
| 51937-96251 |
JY30..15T |
2 | ||
| 51937-96251 |
JY30..15T RH,W/SCHNORKEL |
1 | ||
| 51938-96251 |
JY30..15T LH,W/SCHNORKEL |
1 | ||
| Common parts | ||||
| 91651-41020 | ||||
| 91651-41025 | ||||
| 91651-41040 | ||||
| 94110-41000 | ||||
(8201- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-25022 |
LY20,30,RY20,31..T3..15T FR=6.00-15-8,RR=7.00-15-10 |
1 | ||
| 51900-35080 |
LY20,30,RY20,31..WT RR |
1 | ||
| 51900-35081 |
LY20,30,RY20,31..WT RR |
1 | ||
| 51930-96250 |
JY30..15T |
1 | ||
| 51930-96251 |
JY30..15T |
1 | ||
| 51900-25040 |
LY20,30,RY20,31..WT FR |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
