JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

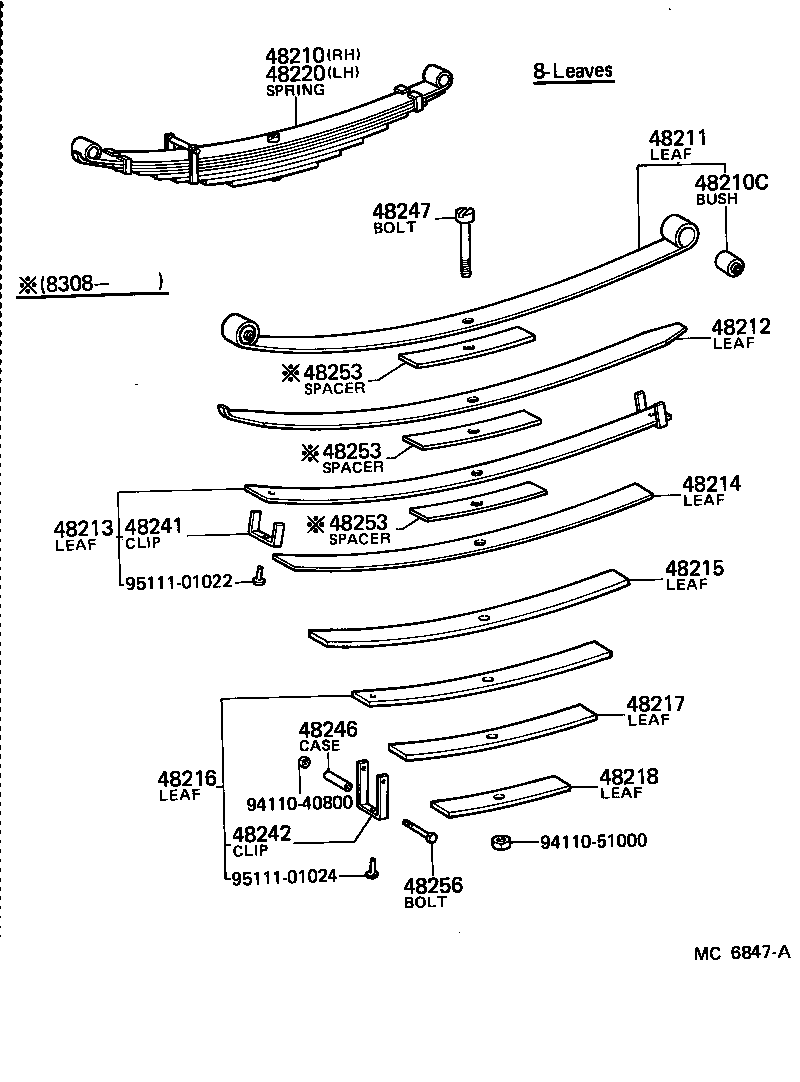

ILLUST NO. 2 OF 2(8004-8308)DMP,VPA ; (8308- )VPA

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48218 48220 48241 48242 48246 48247 48253 48253 48253 48256 9411040800 9411051000 9511101022 9511101024
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36220

JY30..WT

6枚ﾘｰﾌ

 1
48210-36211

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48210-36212

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16003

BY30,JY30..DMP,T2,VPA

 4
90389-16002

BY30,JY30..T1,T3

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36210

BY30,JY30..DMP,VPA

 2
48212 - LEAF, REAR SPRING, NO.2
48212-36210

BY30,JY30..DMP,VPA

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36210

BY30,JY30..DMP,VPA

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36210

BY30,JY30..DMP,VPA

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36210

BY30,JY30..DMP,VPA

 2
48216 - LEAF, REAR SPRING, NO.6
48203-36210

BY30,JY30..DMP,VPA

 2
48217 - LEAF, REAR SPRING, NO.7
48217-36210

BY30,JY30..DMP,VPA

 2
48218 - LEAF, REAR SPRING, NO.8
48218-36210

BY30,JY30..DMP,VPA

 2
48220 - SPRING ASSY, REAR LH
48210-36220

JY30..WT

6枚ﾘｰﾌ

 1
48210-36212

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48210-36211

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36210

BY30,JY30..DMP,T2,VPA

 4
48242 - CLIP, REAR SPRING, NO.2
48242-36211

BY30,JY30..DMP,VPA

 2
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

JY30;BY3#..T2,VPA

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36210

BY30,JY30..DMP,VPA

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

JY30;BY3#..T2,VPA

 2
Common parts
94110-40800
94110-51000
95111-01022
95111-01024

ILLUST NO. 1 OF 2(8004-8308)JY30..15T

Click highlighted areas on diagram

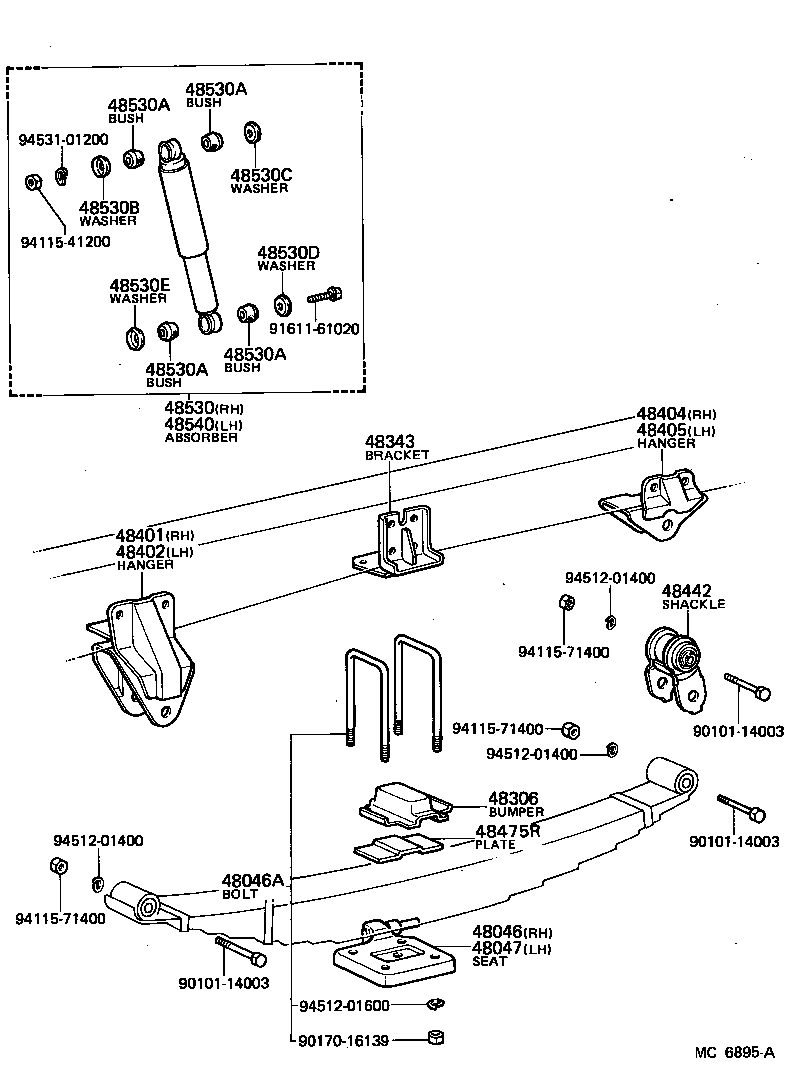

diagram 48046 48046A 48047 48306 48343 48401 48402 48404 48405 48442 48475R 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010114003 9010114003 9010114003 9017016139 9161161020 9411541200 9411571400 9411571400 9411571400 9451201400 9451201400 9451201400 9451201600 9453101200
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-25050

LY2#,3#,RY2#,3#

 1
48046-36100

BY30,JY30..DMP,VPA

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-16157

BY30,JY30..DMP,VPA

長さ=265,L=265

 4
90118-14171

LY20,30,RY20,31..WT

L=153

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36100

BY30,JY30..DMP,VPA

 1
48047-25050

LY2#,3#,RY2#,3#

 1
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-25070

JY30..15T

 2
48343 - BRACKET, REAR AXLE CUSHION
48308-25020

JY30..15T

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-36081

BY30,JY30..DMP,VPA

 1
48414-36080

BY30,JY30..DMP,VPA

 1
48414-25050

LY2#,3#,RY2#,3#..WT

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-36020

BY30,JY30..DMP,VPA

 1
48415-36021

BY30,JY30..DMP,VPA

 1
48415-25020

LY2#,3#,RY2#,3#..WT

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-36100

BY30,JY30..DMP,VPA

 1
48416-25060

LY20,30,RY21,32..WT

 1
48416-25050

LY20,30,RY20,31..WT

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-25050

LY20,30,RY20,31..WT

 1
48417-36030

BY30,JY30..DMP,VPA

 1
48416-25060

LY20,30,RY21,32..WT

 1
48442 - SHACKLE, SPRING, NO.2
48042-36021

BY3#,JY30

 2
48475R - PLATE, DISTANCE(FOR REAR)
48475-36051

BY3#,JY30

 1
48475-25010

LY2#,3#,RY2#,3#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39465

BY30,JY30..DMP,T2,VPA

 1
48531-39355

JY30..WT

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

BY3#,JY30,LY2#,3#,RY2#,3#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

LY20,30,RY20,31

 2
90948-03003

BY30,JY30..WT

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

BY3#,JY30,LY2#,3#,RY2#,3#

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03007

JY30..WT

 2
90948-03007

LY20,30,RY20,31

 2
90948-03003

BY30,JY30..T1,T3

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

BY3#,JY30,LY2#,3#,RY2#,3#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39465

BY30,JY30..DMP,T2,VPA

 1
48531-39355

JY30..WT

 1
Common parts
90101-14003
90170-16139
91611-61020
94115-41200
94115-71400
94512-01400
94512-01600
94531-01200

ILLUST NO. 2 OF 2(8009- )T3..WT ; (8308- )DMP

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48217 48220 48241 48242 48247 48261 48262 48263 48264 48265 48281 9411041000 9411061000 9511100816 9511100818 9511100818 9511100820 9511100822
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-36220

JY30..WT

6枚ﾘｰﾌ

 1
48210-36211

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48210-36212

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16003

BY30,JY30..DMP,T2,VPA

 4
90389-16002

BY30,JY30..T1,T3

 4
48211 - LEAF, REAR SPRING, NO.1
48201-36210

BY30,JY30..DMP,VPA

 2
48212 - LEAF, REAR SPRING, NO.2
48212-36210

BY30,JY30..DMP,VPA

 2
48213 - LEAF, REAR SPRING, NO.3
48202-36210

BY30,JY30..DMP,VPA

 2
48214 - LEAF, REAR SPRING, NO.4
48214-36210

BY30,JY30..DMP,VPA

 2
48215 - LEAF, REAR SPRING, NO.5
48215-36210

BY30,JY30..DMP,VPA

 2
48216 - LEAF, REAR SPRING, NO.6
48203-36210

BY30,JY30..DMP,VPA

 2
48217 - LEAF, REAR SPRING, NO.7
48217-36210

BY30,JY30..DMP,VPA

 2
48220 - SPRING ASSY, REAR LH
48210-36220

JY30..WT

6枚ﾘｰﾌ

 1
48210-36212

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48210-36211

BY30,JY30..DMP,VPA

8枚ﾘｰﾌ

 1
48241 - CLIP, REAR SPRING, NO.1
48241-36210

BY30,JY30..DMP,T2,VPA

 4
48242 - CLIP, REAR SPRING, NO.2
48242-36211

BY30,JY30..DMP,VPA

 2
48247 - BOLT, REAR SPRING, CENTER
48247-36210

BY30,JY30..DMP,VPA

 2
Common parts
94110-41000
94110-61000
95111-00816
95111-00818
95111-00820
95111-00822
