JY30D-QDT3 (1980)
Toyota Toyoace

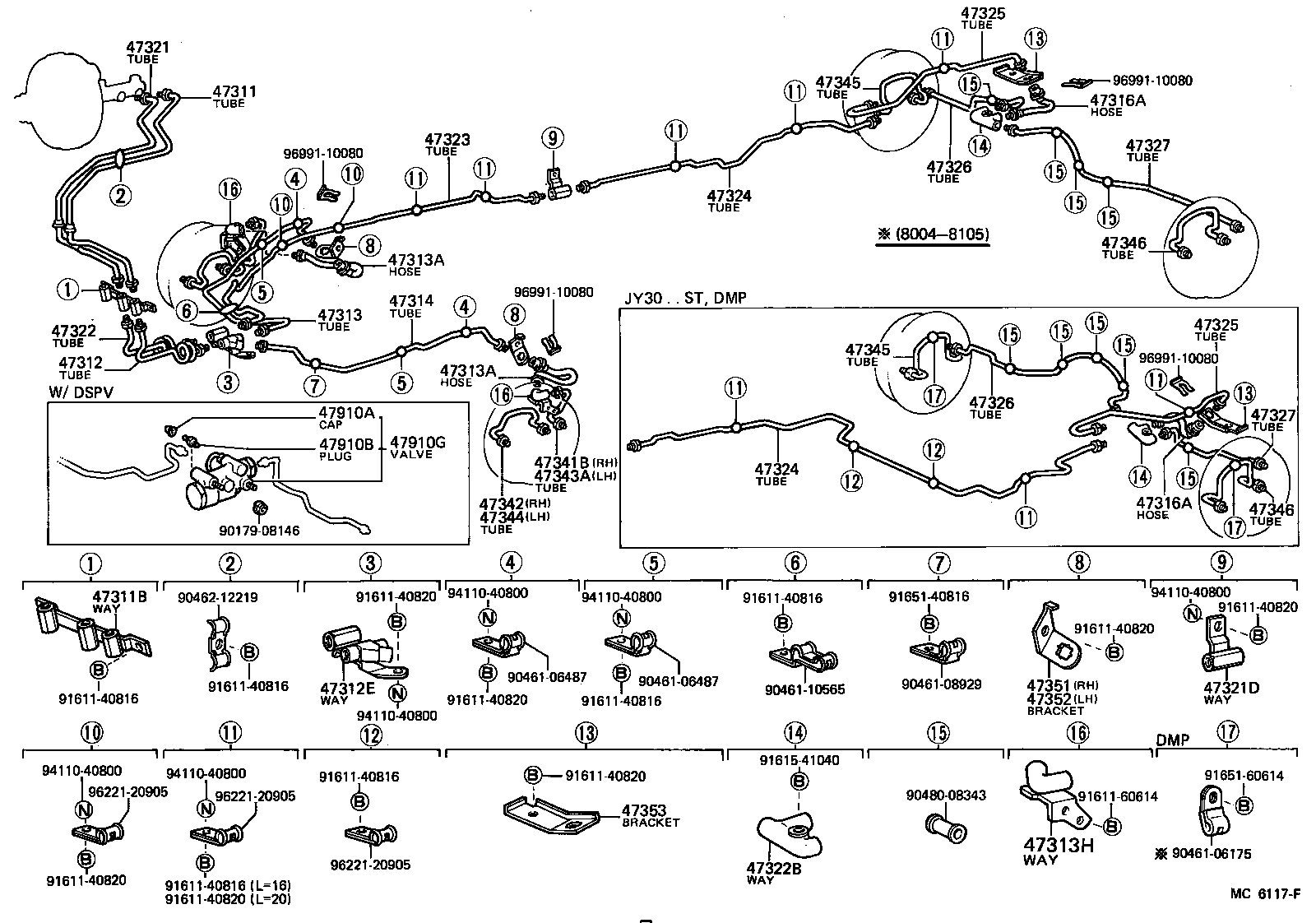

ILLUST NO. 1 OF 2(7903-8201)LY20,30,RY20,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25120 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10050 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25030 |
LY20,30,RY2#,3# |
1 | ||
| 47312-25050 |
JY30 |
1 | ||
| 47312-25051 |
JY30 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10073 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25080 |
JY30 |
1 | ||
| 47313-25070 |
LY20,30,RY2#,3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25111 |
JY30 |
1 | ||
| 47314-25110 |
JY30 |
1 | ||
| 47314-25100 |
LY20,30,RY2#,3# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 90947-02373 |
BY30,JY30..DMP,T2,VPA |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10054 |
LY2#,3#,RY2#,3# |
1 | ||
| 90412-10040 |
BY3#,JY30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25010 |
LY20,30,RY2#,3# |
1 | ||
| 47322-25031 |
JY30 |
1 | ||
| 47322-25030 |
JY30 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BY30,JY30 |
1 | ||
| 90413-10147 |
LY2#,3#,RY2#,3# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25030 |
BY30,JY30..DMP,VPA |
1 | ||
| 47323-25010 |
LY20,30,RY20,31 |
1 | ||
| 47323-25050 |
LY20,30,RY2#,3# |
1 | ||
| 47323-25060 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36080 |
BY30,JY30..DMP,VPA |
1 | ||
| 47326-25030 |
LY20,30,RY2#,3#..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47331-36110 |
BY30,JY30..DMP,VPA |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36030 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47341-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47341-36040 |
JY30..15T |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
JY30..15T |
1 | ||
| 47342-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36040 |
JY30..15T |
1 | ||
| 47343-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343-36020 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47342-36030 |
JY30..15T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36020 |
JY30..15T |
1 | ||
| 47345-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345-36020 |
JY30..15T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36050 |
BY3#,JY30 |
1 | ||
| 47351-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-36050 |
BY3#,JY30 |
1 | ||
| 47352-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-25020 |
JY30 |
1 | ||
| 47353-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-25010 |
LY2#,3#,RY2#,3# |
2 | ||
| 47910A - CAP, BLEEDER PLUG | ||||
| 31478-30010 |
JY30..15T;LY20,30,RY20,31..WT |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-12010 |
JY30..15T;LY20,30,RY20,31..WT |
1 | ||
| 47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING | ||||
| 47910-25041 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47910-25060 |
JY30..15T |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06179 | ||||
| 90461-06487 | ||||
| 90461-10565 | ||||
| 90462-12219 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||

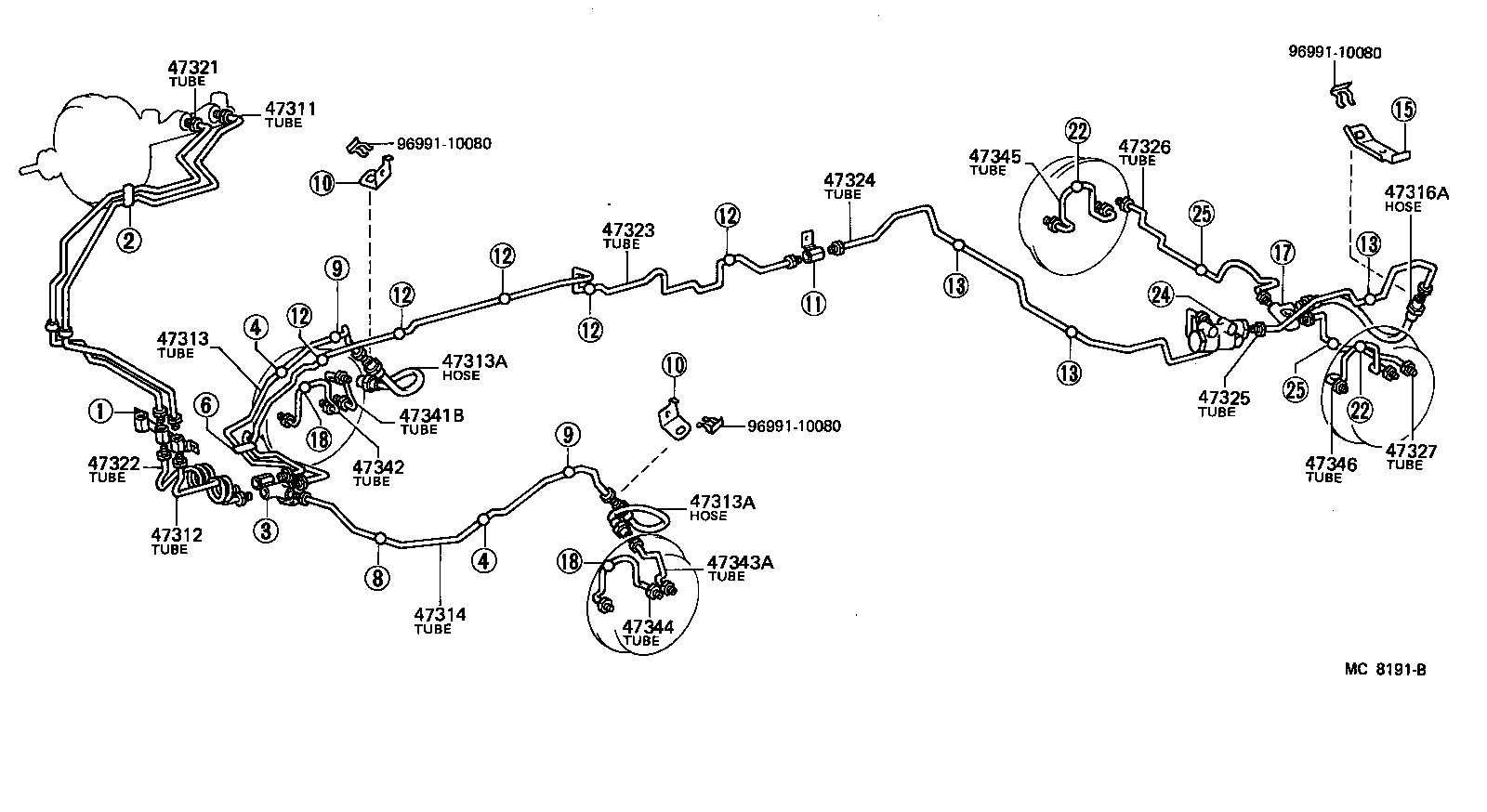

ILLUST NO. 1 OF 2(7903-8201)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25120 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10050 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25030 |
LY20,30,RY2#,3# |
1 | ||
| 47312-25050 |
JY30 |
1 | ||
| 47312-25051 |
JY30 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10073 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25080 |
JY30 |
1 | ||
| 47313-25070 |
LY20,30,RY2#,3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90412-10037 |
BY30,JY30 RH |
1 | ||
| 90412-10043 |
BY30,JY30 LH |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25111 |
JY30 |
1 | ||
| 47314-25110 |
JY30 |
1 | ||
| 47314-25100 |
LY20,30,RY2#,3# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 90947-02373 |
BY30,JY30..DMP,T2,VPA |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 90947-02373 |
BY30,JY30..DMP,T2,VPA |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10054 |
LY2#,3#,RY2#,3# |
1 | ||
| 90412-10040 |
BY3#,JY30 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25010 |
LY20,30,RY2#,3# |
1 | ||
| 47322-25031 |
JY30 |
1 | ||
| 47322-25030 |
JY30 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BY30,JY30 |
1 | ||
| 90413-10147 |
LY2#,3#,RY2#,3# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25030 |
BY30,JY30..DMP,VPA |
1 | ||
| 47323-25010 |
LY20,30,RY20,31 |
1 | ||
| 47323-25050 |
LY20,30,RY2#,3# |
1 | ||
| 47323-25060 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36080 |
BY30,JY30..DMP,VPA |
1 | ||
| 47326-25030 |
LY20,30,RY2#,3#..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36080 |
BY30,JY30..DMP,VPA |
1 | ||
| 47326-25030 |
LY20,30,RY2#,3#..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47331-36110 |
BY30,JY30..DMP,VPA |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47331-36110 |
BY30,JY30..DMP,VPA |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36030 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47341-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47341-36040 |
JY30..15T |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
JY30..15T |
1 | ||
| 47342-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36040 |
JY30..15T |
1 | ||
| 47343-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343-36020 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47342-36030 |
JY30..15T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36020 |
JY30..15T |
1 | ||
| 47345-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36020 |
JY30..15T |
1 | ||
| 47345-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345-36020 |
JY30..15T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345-36020 |
JY30..15T |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36050 |
BY3#,JY30 |
1 | ||
| 47351-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-36050 |
BY3#,JY30 |
1 | ||
| 47352-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-25020 |
JY30 |
1 | ||
| 47353-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 47910A - CAP, BLEEDER PLUG | ||||
| 31478-30010 |
JY30..15T;LY20,30,RY20,31..WT |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-12010 |
JY30..15T;LY20,30,RY20,31..WT |
1 | ||
| 47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING | ||||
| 47910-25041 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47910-25060 |
JY30..15T |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06175 | ||||
| 90461-06487 | ||||
| 90461-08929 | ||||
| 90461-10565 | ||||
| 90462-12219 | ||||
| 90480-08343 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-60614 | ||||
| 91615-41040 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
| 96221-20905 | ||||
| 96991-10080 | ||||
ILLUST NO. 1 OF 2(8201- )LY2#,3#,RY21,32
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25120 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25030 |
LY20,30,RY2#,3# |
1 | ||
| 47312-25050 |
JY30 |
1 | ||
| 47312-25051 |
JY30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25080 |
JY30 |
1 | ||
| 47313-25070 |
LY20,30,RY2#,3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25111 |
JY30 |
1 | ||
| 47314-25110 |
JY30 |
1 | ||
| 47314-25100 |
LY20,30,RY2#,3# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 90947-02373 |
BY30,JY30..DMP,T2,VPA |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 90947-02373 |
BY30,JY30..DMP,T2,VPA |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25010 |
LY20,30,RY2#,3# |
1 | ||
| 47322-25031 |
JY30 |
1 | ||
| 47322-25030 |
JY30 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25030 |
BY30,JY30..DMP,VPA |
1 | ||
| 47323-25010 |
LY20,30,RY20,31 |
1 | ||
| 47323-25050 |
LY20,30,RY2#,3# |
1 | ||
| 47323-25060 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36080 |
BY30,JY30..DMP,VPA |
1 | ||
| 47326-25030 |
LY20,30,RY2#,3#..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36080 |
BY30,JY30..DMP,VPA |
1 | ||
| 47326-25030 |
LY20,30,RY2#,3#..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47331-36110 |
BY30,JY30..DMP,VPA |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47331-36110 |
BY30,JY30..DMP,VPA |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36030 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47341-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47341-36040 |
JY30..15T |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
JY30..15T |
1 | ||
| 47342-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36040 |
JY30..15T |
1 | ||
| 47343-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343-36020 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47342-36030 |
JY30..15T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36020 |
JY30..15T |
1 | ||
| 47345-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36020 |
JY30..15T |
1 | ||
| 47345-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345-36020 |
JY30..15T |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345-36020 |
JY30..15T |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
ILLUST NO. 1 OF 2(8201-8308)JY30..15T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25120 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25030 |
LY20,30,RY2#,3# |
1 | ||
| 47312-25050 |
JY30 |
1 | ||
| 47312-25051 |
JY30 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25080 |
JY30 |
1 | ||
| 47313-25070 |
LY20,30,RY2#,3# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-33605 |
BY30,JY30 |
2 | ||
| 96950-33605 |
LY20,30,RY20,31 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25111 |
JY30 |
1 | ||
| 47314-25110 |
JY30 |
1 | ||
| 47314-25100 |
LY20,30,RY2#,3# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33805 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 90947-02373 |
BY30,JY30..DMP,T2,VPA |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25010 |
LY20,30,RY2#,3# |
1 | ||
| 47322-25031 |
JY30 |
1 | ||
| 47322-25030 |
JY30 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25030 |
BY30,JY30..DMP,VPA |
1 | ||
| 47323-25010 |
LY20,30,RY20,31 |
1 | ||
| 47323-25050 |
LY20,30,RY2#,3# |
1 | ||
| 47323-25060 |
JY30..15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25080 |
JY30..15T |
1 | ||
| 47324-25160 |
JY30..15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25070 |
JY30..WT |
1 | ||
| 47325-25020 |
LY20,30,RY20,31..WT |
1 | ||
| 47325-25080 |
JY30..15T |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47329-36080 |
BY30,JY30..DMP,VPA |
1 | ||
| 47326-25030 |
LY20,30,RY2#,3#..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47331-36110 |
BY30,JY30..DMP,VPA |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36030 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47341-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47341-36040 |
JY30..15T |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36030 |
JY30..15T |
1 | ||
| 47342-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36040 |
JY30..15T |
1 | ||
| 47343-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 47343-36020 |
BY30,JY30..(DMP,T3,VPA)..WT |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 47342-36030 |
JY30..15T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36020 |
JY30..15T |
1 | ||
| 47345-25040 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47346-25020 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47345-36020 |
JY30..15T |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 2(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10050 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10073 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10073 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10054 |
LY2#,3#,RY2#,3# |
1 | ||
| 90412-10040 |
BY3#,JY30 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10054 |
LY2#,3#,RY2#,3# |
1 | ||
| 90412-10040 |
BY3#,JY30 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BY30,JY30 |
1 | ||
| 90413-10147 |
LY2#,3#,RY2#,3# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BY30,JY30 |
1 | ||
| 90413-10147 |
LY2#,3#,RY2#,3# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36050 |
BY3#,JY30 |
1 | ||
| 47351-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36050 |
BY3#,JY30 |
1 | ||
| 47351-25030 |
LY2#,3#,RY2#,3# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-36050 |
BY3#,JY30 |
1 | ||
| 47352-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-36050 |
BY3#,JY30 |
1 | ||
| 47352-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-25020 |
JY30 |
1 | ||
| 47353-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-25020 |
JY30 |
1 | ||
| 47353-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-25010 |
LY2#,3#,RY2#,3# |
2 | ||
| 47910A - CAP, BLEEDER PLUG | ||||
| 31478-30010 |
JY30..15T;LY20,30,RY20,31..WT |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-12010 |
JY30..15T;LY20,30,RY20,31..WT |
1 | ||
| 47910G - VALVE ASSY, DECELERATION SENSING PROPORTIONING | ||||
| 47910-25041 |
LY2#,3#,RY2#,3#..WT |
1 | ||
| 47910-25060 |
JY30..15T |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90461-06178 | ||||
| 90461-08058 | ||||
| 90461-08566 | ||||
| 90461-08567 | ||||
| 90461-10569 | ||||
| 90462-12013 | ||||
| 90480-08343 | ||||
| 90949-01005 | ||||
| 90949-01006 | ||||
| 90949-01013 | ||||
| 90949-01034 | ||||
| 90949-01035 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91615-41040 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
| 94110-40800 | ||||
| 96221-30905 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
