JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

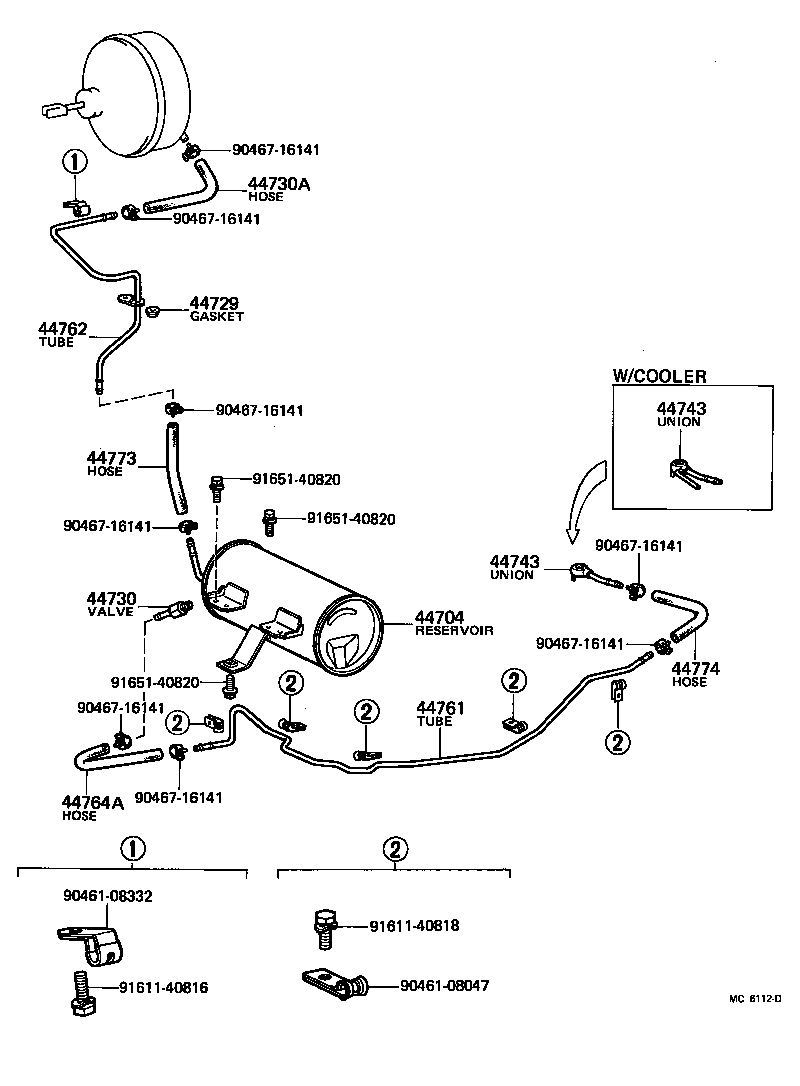

ILLUST NO. 2 OF 2(7903-8308)LY20,30

Click highlighted areas on diagram

diagram 44704 44729 44730 44730A 44743 44743 44761 44762 44764A 44773 44774 44786 9046108332 9046108334 9046108418 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9094901033 9161140814 9161140814 9161140816 9162140812 9165140820 9165140820 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25030

JY30

 1
44704-25020

JY30,LY20,30

 1
44704-25021

LY20,30

 1
44729 - GASKET, VACUUM TUBE
44729-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BY3#,JY30,LY2#,3#

 1
44730-20060

RY2#,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09059

LY20,30

W/COOLER

 1
90405-09013

LY20,30

 1
90405-09012

LY20,30

W/COOLER

 1
90405-09014

JY30

W/COOLER

 1
90405-09007

JY30

 1
90405-09060

LY20,30

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09059

LY20,30

W/COOLER

 1
90405-09013

LY20,30

 1
90405-09012

LY20,30

W/COOLER

 1
90405-09014

JY30

W/COOLER

 1
90405-09007

JY30

 1
90405-09060

LY20,30

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25050

JY30

 1
44764-25040

RY2#,3#

 1
44764-25030

LY20,30

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44764A - HOSE, BOOSTER VACUUM
44772-25010

JY30

 1
90445-17927

RY2#,3#

 1
44772-25020

LY20,30

 1
44773 - HOSE, VACUUM, NO.2
44771-25010

JY30,LY20,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
90445-17033

JY30

 1
95441-09220

JY30

 1
44774-25021

LY2#,3#

 1
Common parts
90461-08332
90461-08334
90461-08418
90467-16141
90949-01033
91611-40814
91611-40816
91621-40812
91651-40820

ILLUST NO. 2 OF 2(7903-8308)JY30

Click highlighted areas on diagram

diagram 44704 44729 44730 44730A 44743 44743 44761 44762 44764A 44773 44774 9046108047 9046108332 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140816 9161140818 9165140820 9165140820 9165140820
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-25030

JY30

 1
44704-25020

JY30,LY20,30

 1
44704-25021

LY20,30

 1
44729 - GASKET, VACUUM TUBE
44729-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

BY3#,JY30,LY2#,3#

 1
44730-20060

RY2#,3#

 1
44730A - HOSE, VACUUM, NO.1
44776-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09059

LY20,30

W/COOLER

 1
90405-09013

LY20,30

 1
90405-09012

LY20,30

W/COOLER

 1
90405-09014

JY30

W/COOLER

 1
90405-09007

JY30

 1
90405-09060

LY20,30

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09059

LY20,30

W/COOLER

 1
90405-09013

LY20,30

 1
90405-09012

LY20,30

W/COOLER

 1
90405-09014

JY30

W/COOLER

 1
90405-09007

JY30

 1
90405-09060

LY20,30

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25050

JY30

 1
44764-25040

RY2#,3#

 1
44764-25030

LY20,30

 1
44762 - TUBE, BOOSTER VACUUM
44762-25030

BY3#,JY30,LY2#,3#,RY2#,3#

 1
44764A - HOSE, BOOSTER VACUUM
44772-25010

JY30

 1
90445-17927

RY2#,3#

 1
44772-25020

LY20,30

 1
44773 - HOSE, VACUUM, NO.2
44771-25010

JY30,LY20,30

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
90445-17033

JY30

 1
95441-09220

JY30

 1
44774-25021

LY2#,3#

 1
Common parts
90461-08047
90461-08332
90467-16141
91611-40816
91611-40818
91651-40820
