JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8004-8308)JY30..15T ; (8009- )BY3#..DMP,T3,VPA..WT

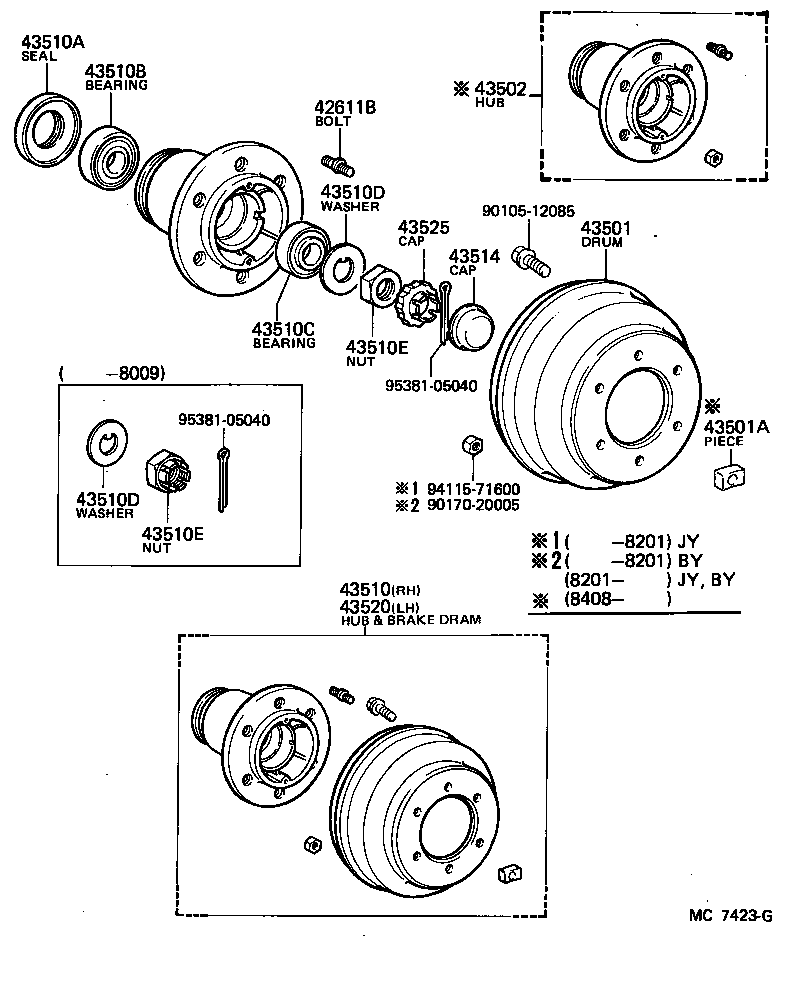

Click highlighted areas on diagram

diagram 42611B 43501 43501A 43502 43510 43510A 43510B 43510C 43510D 43510D 43510E 43510E 43514 43520 43525 9010512085 9017020005 9411571600 9538105040 9538105040
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02040

JY30..15T

LH

 6
90942-02039

JY30..15T

RH

 6
90942-02038

LY2#,3#,RY2#,3#

 12
43501 - DRUM SUB-ASSY, FRONT BRAKE
43512-36030

JY30..15T

 2
43512-36040

JY30..15T

 2
43512-25010

LY2#,3#,RY2#,3#

 2
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36060

JY30..15T

 1
43510-36070

JY30..15T

 1
43510-25030

LY2#,3#,RY2#,3#

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50003

LY2#,3#,RY2#,3#

 2
90311-68001

BY3#,JY30

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90366-35004

LY2#,3#,RY2#,3#

 2
90368-42045

BY3#,JY30

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-22007

LY2#,3#,RY2#,3#

 2
90368-28001

BY3#,JY30

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-23004

LY2#,3#,RY2#,3#

 2
90214-27001

BY3#,JY30

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-23004

LY2#,3#,RY2#,3#

 2
90214-27001

BY3#,JY30

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

JY30

 2
90171-22017

LY20,30,RY20,31

 2
43510E - NUT (FOR STEERING KNUCKLE)
90171-26001

JY30

 2
90171-22017

LY20,30,RY20,31

 2
43514 - CAP, FRONT HUB GREASE
43514-36030

BY3#,JY30

 2
43514-36010

LY20,30,RY20,31

 2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43510-25030

LY2#,3#,RY2#,3#

 1
43520-36060

JY30..15T

 1
43520-36070

JY30..15T

 1
Common parts
90105-12085
90170-20005
94115-71600
95381-05040
