JY30D-QDT3 (1980)
Toyota Toyoace
(8004- )DMP ; (8004- )DMP ; (8009- )T3,VPA..WT ; (8009- )T3,VPA..WT

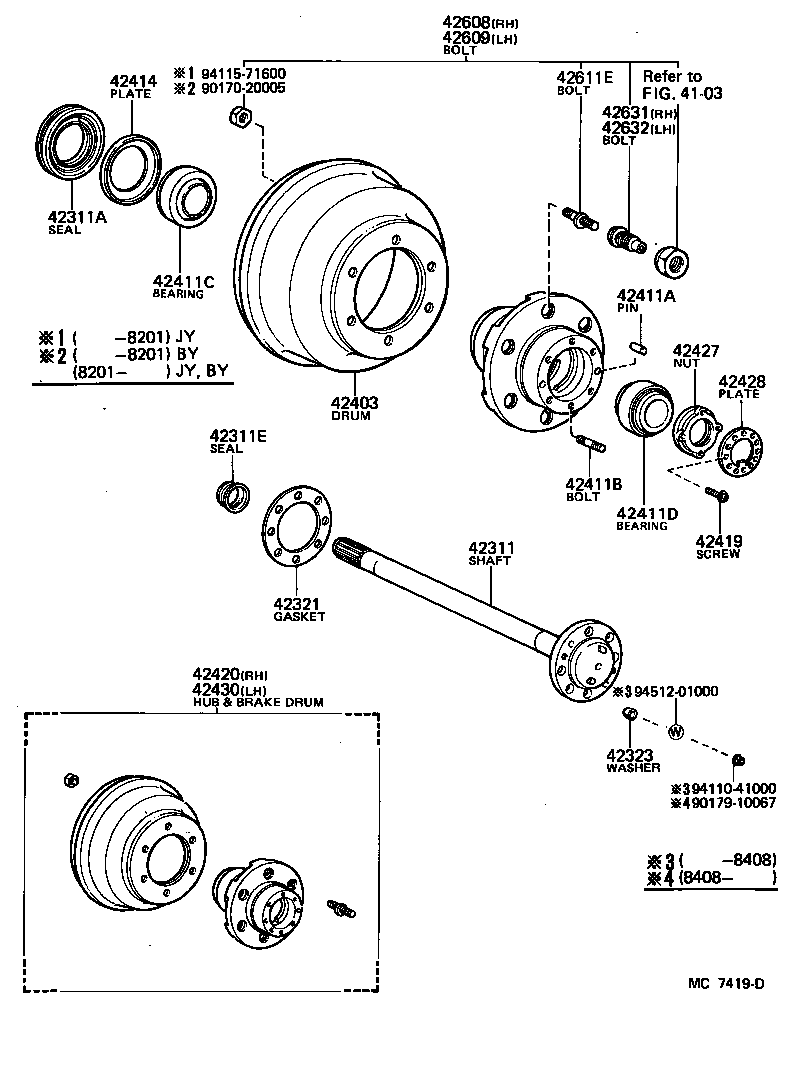

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-25040 |
LY20,30,RY2#,3#..WT |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 42404-36010 |
BY3#,JY30 |
2 | ||
| 90311-62001 |
LY2#,3#,RY2#,3#..WT |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-35001 |
LY2#,3#,RY2#,3#..WT |
2 | ||
| 90310-38033 |
BY3#,JY30 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 43422-60010 |
LY2#,3#,RY2#,3#..WT |
2 | ||
| 42321-36010 |
BY3#,JY30 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BY3#,JY30 |
12 | ||
| 42323-60010 |
LY2#,3#,RY2#,3#..WT |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36050 |
JY30..15T |
2 | ||
| 42431-25030 |
LY20,30,RY20,31..WT |
2 | ||
| 42431-36070 |
JY30..15T |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BY3#,JY30 |
4 | ||
| 90250-07057 |
LY2#,3#,RY2#,3#..WT |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BY3#,JY30 |
12 | ||
| 90116-08325 |
LY2#,3#,RY2#,3#..WT |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BY3#,JY30 |
2 | ||
| 90368-49084 |
LY2#,3#,RY2#,3#..WT |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-50008 |
BY3#,JY30 |
2 | ||
| 90368-45087 |
LY2#,3#,RY2#,3#..WT |
2 | ||
| 42414 - PLATE, REAR AXLE HUB | ||||
| 42414-36010 |
BY3#,JY30 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
LY20,30,RY2#,3#..WT |
4 | ||
| 93311-16012 |
BY3#,JY30 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-25050 |
LY20,30,RY20,31..WT |
1 | ||
| 42420-36060 |
JY30..15T |
1 | ||
| 42420-26050 |
LY20,30,RY21,32..WT |
1 | ||
| 42420-36080 |
JY30..15T |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36010 |
BY3#,JY30 |
2 | ||
| 42427-25010 |
LY20,30,RY2#,3#..WT |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-25010 |
LY20,30,RY2#,3#..WT |
2 | ||
| 42428-36010 |
BY3#,JY30 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36080 |
JY30..15T |
1 | ||
| 42430-36060 |
JY30..15T |
1 | ||
| 42430-25010 |
LY20,30,RY20,31..WT |
1 | ||
| 42430-26020 |
LY20,30,RY21,32..WT |
1 | ||
| 42608 - BOLT SUB-ASSY, REAR AXLE HUB, RH | ||||
| 42608-36010 |
JY30..WT |
6 | ||
| 42609 - BOLT SUB-ASSY, REAR AXLE HUB, LH | ||||
| 42609-36010 |
JY30..WT |
6 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02039 |
JY30..WT RH |
6 | ||
| 90942-02042 |
LY2#,3#,RY2#,3#..WT LH |
6 | ||
| 90942-02041 |
LY2#,3#,RY2#,3#..WT RH |
6 | ||
| 90942-02040 |
JY30..WT LH |
6 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
JY30..WT |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
JY30..WT |
6 | ||
| Common parts | ||||
| 90170-20005 | ||||
| 90179-10067 | ||||
| 94110-41000 | ||||
| 94115-71600 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4103 | ||||
