JY30D-QDT3 (1980)
Toyota Toyoace

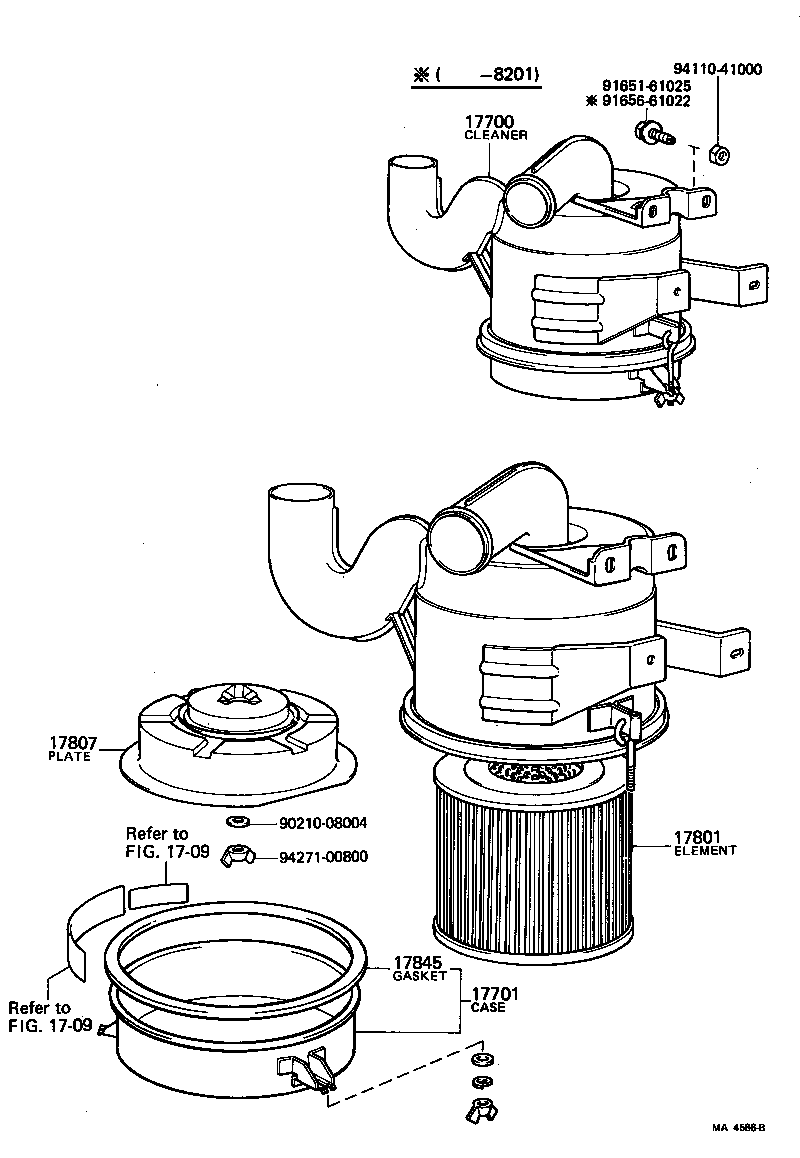

ILLUST NO. 1 OF 2(8004-8308)2J..15T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-48131 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17700-48133 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17700-48110 |
2J..JY30 |
1 | ||
| 17700-48132 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-44262 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-54020 |
2J..JY30 |
1 | ||
| 17801-48011 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17801-56020 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56010 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17846-87301 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 90210-08004 | ||||
| 91651-61025 | ||||
| 91656-61022 | ||||
| 94110-41000 | ||||
| 94271-00800 | ||||
| Linked diagrams | ||||
| 1709 | ||||

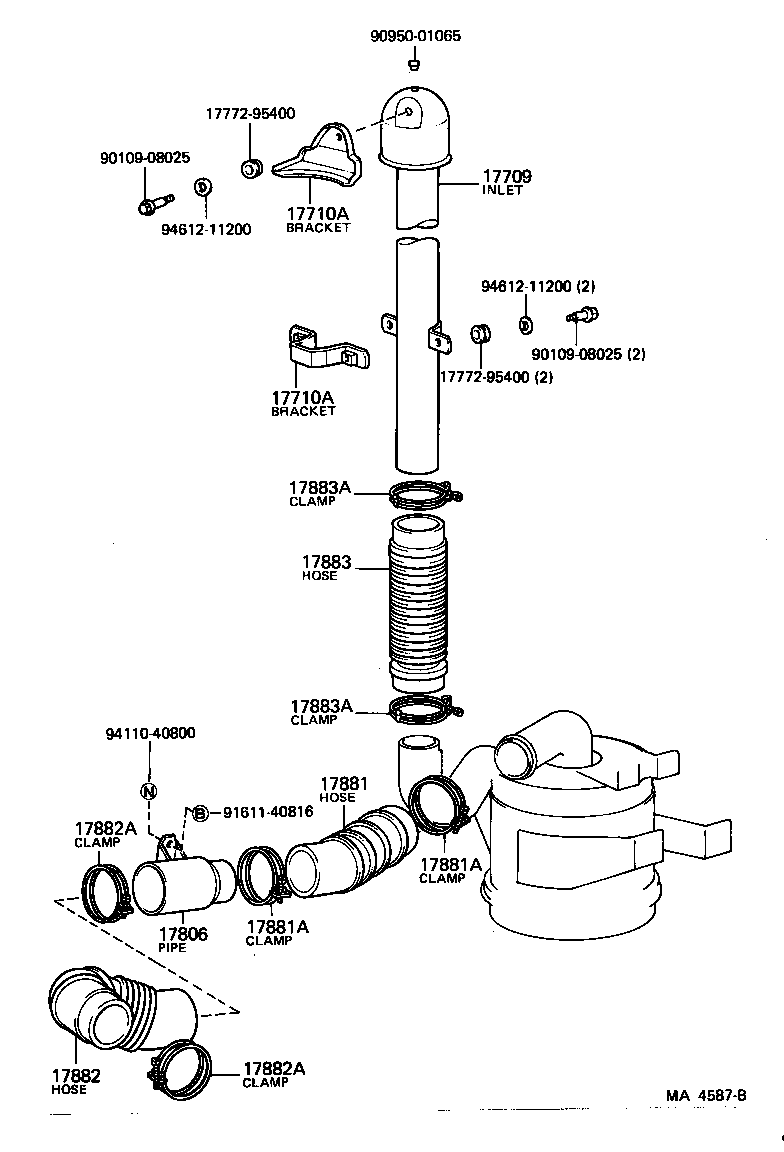

ILLUST NO. 2 OF 2(8004-8308)2J..15T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-95011 |
2J..JY30 |
1 | ||
| 17709-95012 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT | ||||
| 17766-95010 |
2J..JY30..15T UPR,SCHNORKEL TYPE |
1 | ||
| 17708-95402 |
2J..JY30..15T LWR,SCHNORKEL TYPE |
1 | ||
| 17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT | ||||
| 17766-95010 |
2J..JY30..15T UPR,SCHNORKEL TYPE |
1 | ||
| 17708-95402 |
2J..JY30..15T LWR,SCHNORKEL TYPE |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17805-48020 |
2J..JY30 |
1 | ||
| 17805-48030 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-48050 |
2J..JY30 |
1 | ||
| 17881-48030 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2J..JY30..15T SCHNORKEL TYPE |
2 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
2J..JY30..15T SCHNORKEL TYPE |
2 | ||
| 96111-10750 |
2J..JY30 AIR CLEANER SIDE |
1 | ||
| 96111-10690 |
2J..JY30 ENGINE SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-48060 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17882-48050 |
2J..JY30 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30..15T PIPE SIDE,SCHNORKEL TYPE |
1 | ||
| 96111-10780 |
2J..JY30..15T CLEANER SIDE,SCHNORKEL TYPE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10750 |
2J..JY30..15T PIPE SIDE,SCHNORKEL TYPE |
1 | ||
| 96111-10780 |
2J..JY30..15T CLEANER SIDE,SCHNORKEL TYPE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95400 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17883-95011 |
2J..JY30 |
1 | ||
| 17802-95400 |
2J..JY30..15T SCHNORKEL TYPE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10780 |
2J..JY30..15T SCHNORKEL TYPE |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
2J..JY30 |
2 | ||
| 96111-10780 |
2J..JY30..15T SCHNORKEL TYPE |
2 | ||
| Common parts | ||||
| 17772-95400 | ||||
| 90109-08025 | ||||
| 90950-01065 | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||
| 94612-11200 | ||||
