JY30D-QDT3 (1980)
Toyota Toyoace
Production
Apr 1980
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8004-8308)2J..15T

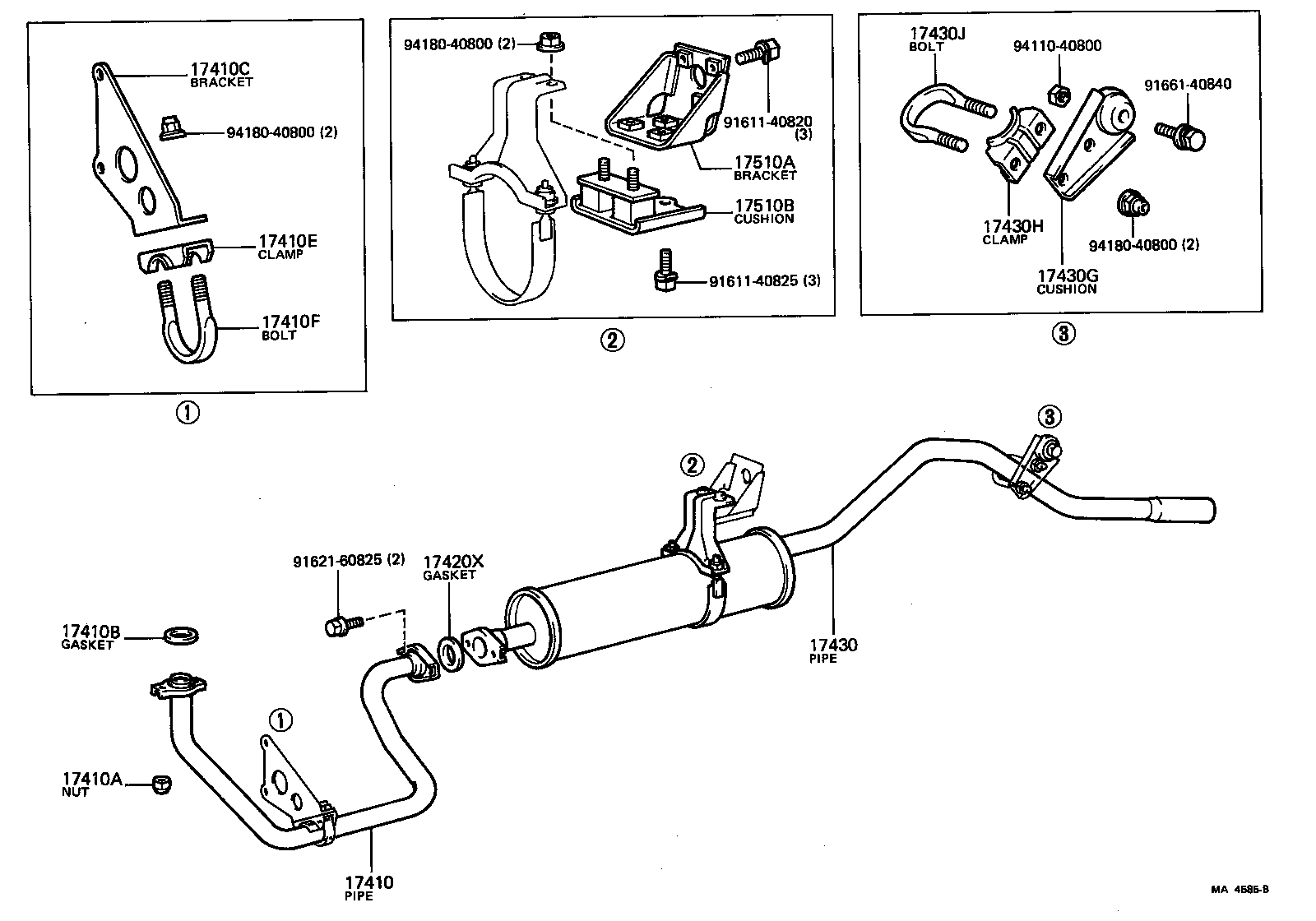

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-48060 |
2J..JY30..15T |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10118 |
12R,2J..JY30,RY2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
L,12R,2J,2L..JY30,LY2#,3#,RY2# |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-48020 |
2J..JY30..15T |
1 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04021 |
L,12R,2J,2L..JY30,LY2#,3#,RY2# |
1 | ||
| 17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90117-08205 |
L,12R,2J,2L..JY30,LY2#,3#,RY2# |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06008 |
B,2J..BY3#,JY30 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-48030 |
2J..JY30..15T |
1 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-08012 |
2J..JY30 |
1 | ||
| 17430H - CLAMP NO.1, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90917-04021 |
2J..JY30 |
1 | ||
| 17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 90117-08205 |
2J..JY30 |
1 | ||
| 17510A - BRACKET, MUFFLER, FRONT | ||||
| 17572-48010 |
2J..JY30..15T |
1 | ||
| 17510B - CUSHION, MUFFLER, FRONT | ||||
| 17562-56010 |
2J..JY30..15T |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91621-60825 | ||||
| 91661-40840 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
