JY30D-QDT3 (1980)

Toyota Toyoace

Production Apr 1980 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)2J

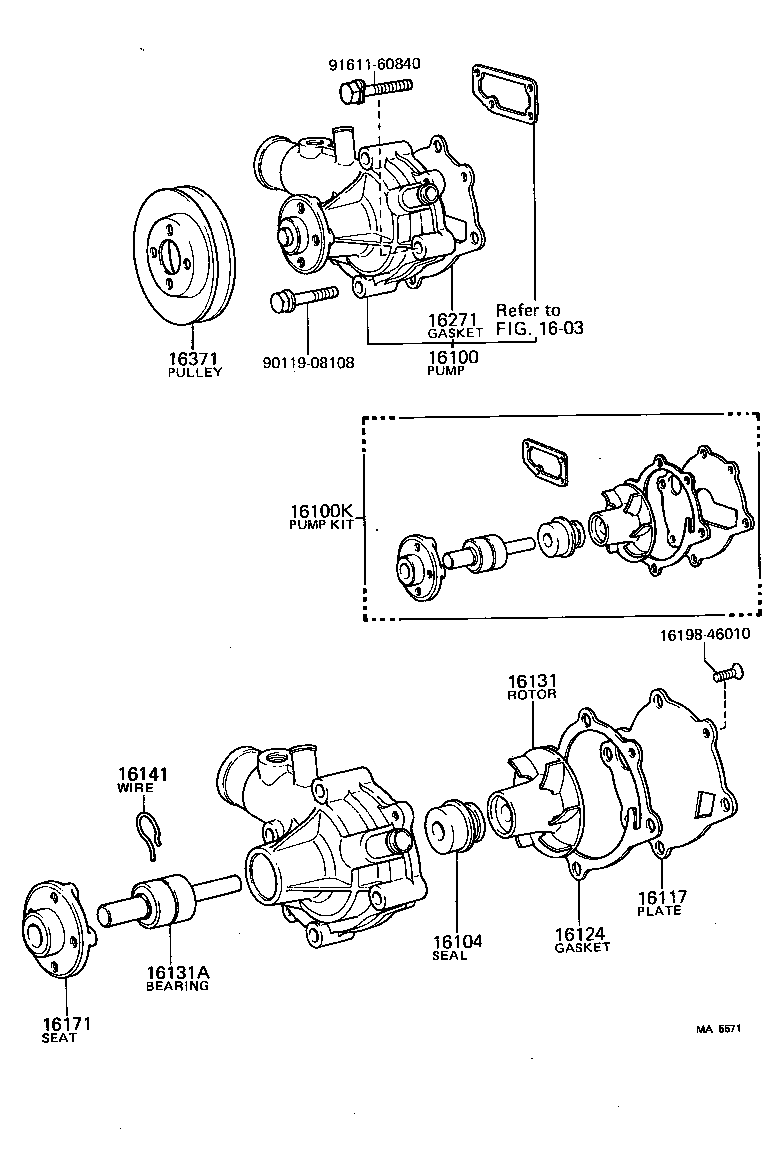

Click highlighted areas on diagram

diagram 1603 16100 16100K 16104 16117 16124 16131 16131A 16141 16171 1619846010 16271 16371 9011908108 9161160840
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49207

2J..JY30

 1
16100K - PUMP KIT, WATER
04161-48011

2J..JY30

 1
16104 - SEAL SET, WATER PUMP
16104-41110

2J..JY30

 1
16117 - PLATE, WATER PUMP
16117-48010

2J..JY30

 1
16124 - GASKET, WATER PUMP COVER
16124-48010

2J..JY30

 1
16131 - ROTOR, WATER PUMP
16131-48013

2J..JY30

 1
16131A - BEARING, WATER PUMP
90369-30028

2J..JY30

 1
16171 - SEAT, WATER PUMP PULLEY
16171-47010

2J..JY30

 1
16271 - GASKET, WATER PUMP
16271-48010

2J..JY30

 1
16371 - PULLEY, FAN
16371-46011

2J..JY30

 1
Common parts
16198-46010
90119-08108
91611-60840
Linked diagrams
1603
