JY30-QDLHT3 (1979)
Toyota Toyoace

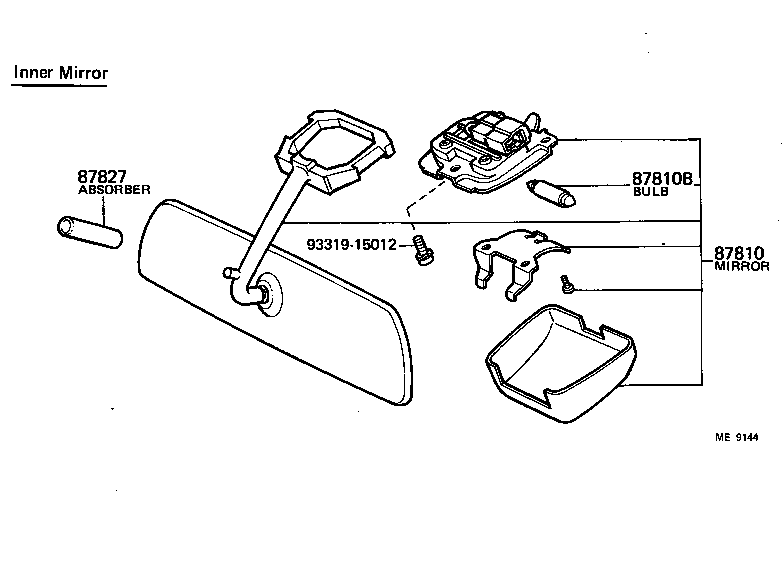

ILLUST NO. 1 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95016 |
JY30,LY20,30,RY20,31 12V |
1 | ||
| 87810-95017 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-16019 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V 10W,24V 10W |
1 | ||
| 90981-11027 |
JY30,LY2#,3#,RY2#,3# 12V 10W,12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 93319-15012 | ||||

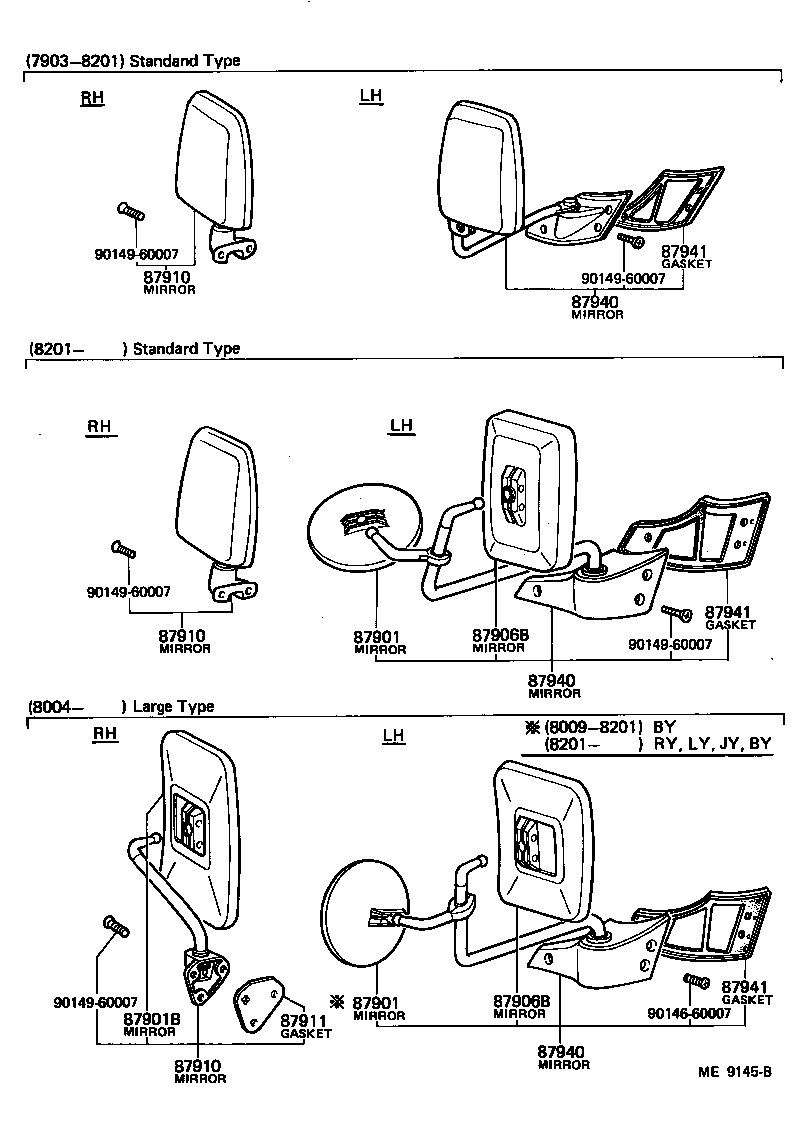

ILLUST NO. 2 OF 2(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-95411 |
BY30,JY30,LY20,30,RY20,31 LARGE MIRROR |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95411 |
BY30,JY30,LY20,30,RY20,31 LARGE MIRROR |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95411 |
BY30,JY30,LY20,30,RY20,31 LARGE MIRROR |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-29345 |
JY30,LY20,30,RY20,31 STANDARD |
1 | ||
| 87910-29435 |
BY30,JY30,LY20,30,RY20,31 LARGE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-29345 |
JY30,LY20,30,RY20,31 STANDARD |
1 | ||
| 87910-29435 |
BY30,JY30,LY20,30,RY20,31 LARGE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-29345 |
JY30,LY20,30,RY20,31 STANDARD |
1 | ||
| 87910-29435 |
BY30,JY30,LY20,30,RY20,31 LARGE |
1 | ||
| 87911 - GASKET, OUTER REAR VIEW MIRROR, RH | ||||
| 87926-95015 |
BY30,JY30,LY20,30,RY20,31 LARGE MIRROR |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-29455 |
JY30,LY20,30,RY20,31 LARGE |
1 | ||
| 87940-29355 |
JY30,LY20,30,RY20,31 STANDARD |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-29455 |
JY30,LY20,30,RY20,31 LARGE |
1 | ||
| 87940-29355 |
JY30,LY20,30,RY20,31 STANDARD |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-29455 |
JY30,LY20,30,RY20,31 LARGE |
1 | ||
| 87940-29355 |
JY30,LY20,30,RY20,31 STANDARD |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87926-95013 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87926-95013 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 87941 - GASKET, OUTER REAR VIEW MIRROR, LH | ||||
| 87926-95013 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 90146-60007 | ||||
| 90149-60007 | ||||
