JY30-QDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

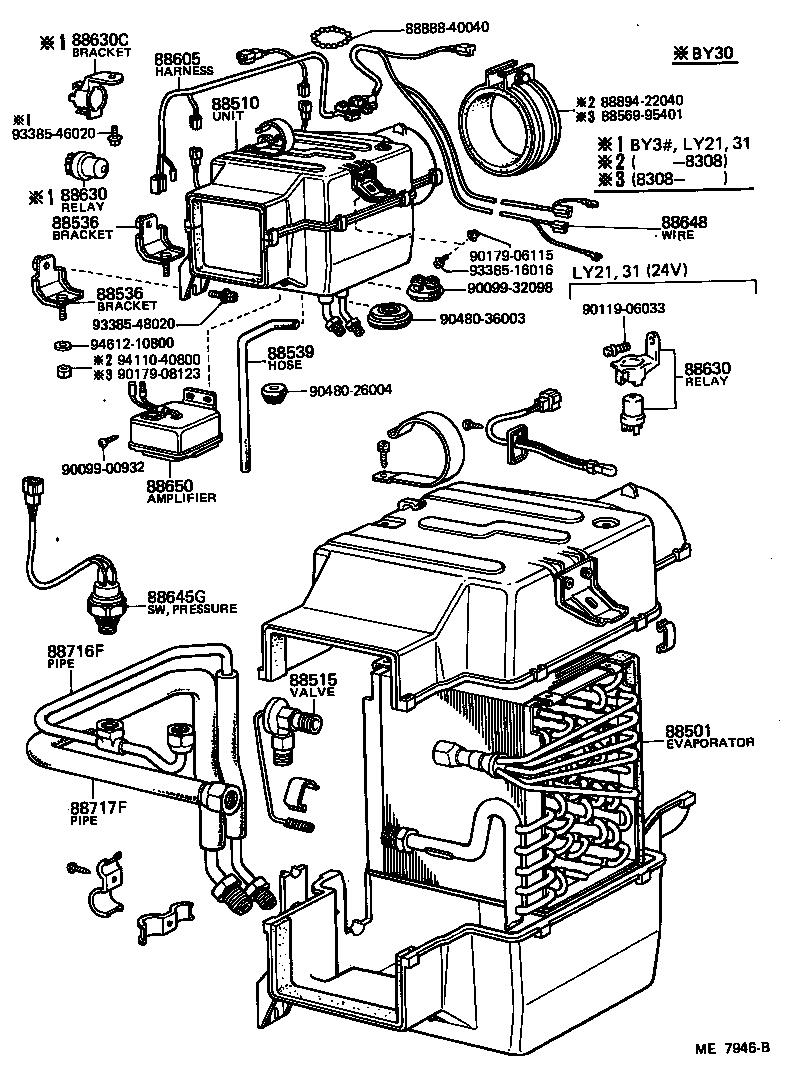

Click highlighted areas on diagram

diagram 88501 88510 88515 88536 88536 88539 8856995401 88605 88630 88630 88630C 88645G 88648 88650 88716F 88717F 8888840040 8889422040 9009900932 9009932098 9011906033 9017906115 9017908123 9048026004 9048036003 9338516016 9338546020 9338548020 9411040800 9461210800
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-95400

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88510 - UNIT ASSY, COOLER
88510-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88515 - VALVE, COOLER EXPANSION
88515-95400

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
88536 - BRACKET, COOLING UNIT, NO.1
88536-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95400

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95013

JY30,LY20,30

 1
88605-95020

JY30,LY20,30

 1
88645G - SWITCH, PRESSURE
88645-22010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88648 - WIRING, COOLER, NO.1
88648-95010

LY20,30

 1
88648-95020

JY30

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-95400

LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT

24V

 1
88650-22040

RY2#,3#

 1
88650-30320

JY30,LY2#,3#

12V

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-95020

BY3#,JY30,LY2#,3#,RY2#,3#

 1
88717F - PIPE, COOLER REFRIGERANT SUCTION, F
88717-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
Common parts
88569-95401
88888-40040
88894-22040
90099-00932
90099-32098
90119-06033
90179-06115
90179-08123
90480-26004
90480-36003
93385-16016
93385-46020
93385-48020
94110-40800
94612-10800
