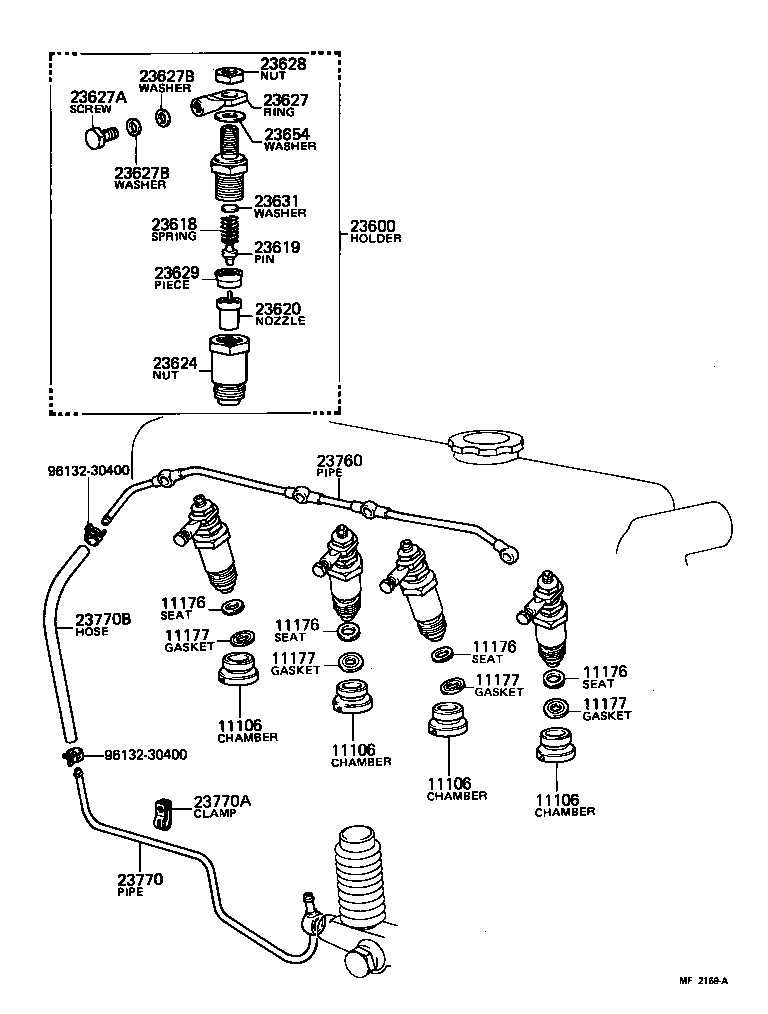

JY30-QDH (1979)
Toyota Toyoace
(8009-8308)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11106 - CHAMBER SUB-ASSY, COMBUSTION | ||||
| 11106-48012 |
2J..JY30 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-56010 |
2J..JY30 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-47010 |
2J..JY30 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-48011 |
2J..JY30 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-48011 |
2J..JY30 |
4 | ||
| 23618 - SPRING, NOZZLE HOLDER PRESSURE | ||||
| 23618-56010 |
2J..JY30 |
4 | ||
| 23619 - PIN, NOZZLE HOLDER PRESSURE | ||||
| 23619-46010 |
2J..JY30 |
4 | ||
| 23620 - NOZZLE ASSY | ||||
| 23620-54010 |
2J..JY30 |
4 | ||
| 23620-54010 |
2J..JY30 |
4 | ||
| 23624 - NUT, NOZZLE RETAINING | ||||
| 23624-47011 |
2J..JY30 |
4 | ||
| 23628 - NUT(FOR RING PACKING SETTING) | ||||
| 23628-46010 |
2J..JY30 |
4 | ||
| 23629 - PIECE, DISTANCE(FOR NOZZLE) | ||||
| 23629-46010 |
2J..JY30 |
4 | ||
| 23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) | ||||
| 23632-46010 |
2J..JY30 厚さ=1.050 |
1 | ||
| 23633-46010 |
2J..JY30 厚さ=1.100 |
1 | ||
| 23631-46010 |
2J..JY30 厚さ=1.000 |
1 | ||
| 23634-46010 |
2J..JY30 厚さ=1.150 |
1 | ||
| 23636-46010 |
2J..JY30 厚さ=1.250 |
1 | ||
| 23635-46010 |
2J..JY30 厚さ=1.200 |
1 | ||
| 23639-46010 |
2J..JY30 厚さ=1.400 |
1 | ||
| 23637-46010 |
2J..JY30 厚さ=1.300 |
1 | ||
| 23642-46010 |
2J..JY30 厚さ=1.500 |
1 | ||
| 23638-46010 |
2J..JY30 厚さ=1.350 |
1 | ||
| 23643-46010 |
2J..JY30 厚さ=1.550 |
1 | ||
| 23641-46010 |
2J..JY30 厚さ=1.450 |
1 | ||
| 23646-46010 |
2J..JY30 厚さ=1.700 |
1 | ||
| 23644-46010 |
2J..JY30 厚さ=1.600 |
1 | ||
| 23647-46010 |
2J..JY30 厚さ=1.750 |
1 | ||
| 23648-46010 |
2J..JY30 厚さ=1.800 |
1 | ||
| 23652-46010 |
2J..JY30 厚さ=1.950 |
1 | ||
| 23645-46010 |
2J..JY30 厚さ=1.650 |
1 | ||
| 23651-46010 |
2J..JY30 厚さ=1.900 |
1 | ||
| 23649-46010 |
2J..JY30 厚さ=1.850 |
1 | ||
| 23654 - WASHER(FOR RING PACKING) | ||||
| 23654-46010 |
2J..JY30 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-48011 |
2J..JY30 |
1 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-48020 |
2J..JY30 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95332-04020 |
2J..JY30 *H,L=180 |
1 | ||
| 95332-04020 |
2J..JY30 *H,L=170 |
1 | ||
| Common parts | ||||
| 91651-40814 | ||||
| 96132-30400 | ||||
(7903-8308)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11106 - CHAMBER SUB-ASSY, COMBUSTION | ||||
| 11106-48012 |
2J..JY30 |
4 | ||
| 11106 - CHAMBER SUB-ASSY, COMBUSTION | ||||
| 11106-48012 |
2J..JY30 |
4 | ||
| 11106 - CHAMBER SUB-ASSY, COMBUSTION | ||||
| 11106-48012 |
2J..JY30 |
4 | ||
| 11106 - CHAMBER SUB-ASSY, COMBUSTION | ||||
| 11106-48012 |
2J..JY30 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-56010 |
2J..JY30 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-56010 |
2J..JY30 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-56010 |
2J..JY30 |
4 | ||
| 11176 - SEAT, INJECTION NOZZLE | ||||
| 11176-56010 |
2J..JY30 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-47010 |
2J..JY30 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-47010 |
2J..JY30 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-47010 |
2J..JY30 |
4 | ||
| 11177 - GASKET, INJECTION NOZZLE SEAT | ||||
| 11177-47010 |
2J..JY30 |
4 | ||
| 23600 - HOLDER & NOZZLE SET, NOZZLE | ||||
| 23600-48011 |
2J..JY30 |
4 | ||
| 23618 - SPRING, NOZZLE HOLDER PRESSURE | ||||
| 23618-56010 |
2J..JY30 |
4 | ||
| 23619 - PIN, NOZZLE HOLDER PRESSURE | ||||
| 23619-46010 |
2J..JY30 |
4 | ||
| 23620 - NOZZLE ASSY | ||||
| 23620-54010 |
2J..JY30 |
4 | ||
| 23620-54010 |
2J..JY30 |
4 | ||
| 23624 - NUT, NOZZLE RETAINING | ||||
| 23624-47011 |
2J..JY30 |
4 | ||
| 23627 - RING, PACKING, NO.1(FOR NOZZLE) | ||||
| 23627-48010 |
2J..JY30 |
4 | ||
| 23627A - SCREW, FOLLOW(FOR NOZZLE) | ||||
| 90099-18019 |
2J..JY30 |
4 | ||
| 23627B - WASHER, COPPER PLATE(FOR NOZZLE) | ||||
| 90201-08106 |
2J..JY30 |
4 | ||
| 23627B - WASHER, COPPER PLATE(FOR NOZZLE) | ||||
| 90201-08106 |
2J..JY30 |
4 | ||
| 23628 - NUT(FOR RING PACKING SETTING) | ||||
| 23628-46010 |
2J..JY30 |
4 | ||
| 23629 - PIECE, DISTANCE(FOR NOZZLE) | ||||
| 23629-46010 |
2J..JY30 |
4 | ||
| 23631 - WASHER(FOR NOZZLE HOLDER PRESSURE SPRING) | ||||
| 23632-46010 |
2J..JY30 厚さ=1.050 |
1 | ||
| 23633-46010 |
2J..JY30 厚さ=1.100 |
1 | ||
| 23631-46010 |
2J..JY30 厚さ=1.000 |
1 | ||
| 23634-46010 |
2J..JY30 厚さ=1.150 |
1 | ||
| 23636-46010 |
2J..JY30 厚さ=1.250 |
1 | ||
| 23635-46010 |
2J..JY30 厚さ=1.200 |
1 | ||
| 23639-46010 |
2J..JY30 厚さ=1.400 |
1 | ||
| 23637-46010 |
2J..JY30 厚さ=1.300 |
1 | ||
| 23642-46010 |
2J..JY30 厚さ=1.500 |
1 | ||
| 23638-46010 |
2J..JY30 厚さ=1.350 |
1 | ||
| 23643-46010 |
2J..JY30 厚さ=1.550 |
1 | ||
| 23641-46010 |
2J..JY30 厚さ=1.450 |
1 | ||
| 23646-46010 |
2J..JY30 厚さ=1.700 |
1 | ||
| 23644-46010 |
2J..JY30 厚さ=1.600 |
1 | ||
| 23647-46010 |
2J..JY30 厚さ=1.750 |
1 | ||
| 23648-46010 |
2J..JY30 厚さ=1.800 |
1 | ||
| 23652-46010 |
2J..JY30 厚さ=1.950 |
1 | ||
| 23645-46010 |
2J..JY30 厚さ=1.650 |
1 | ||
| 23651-46010 |
2J..JY30 厚さ=1.900 |
1 | ||
| 23649-46010 |
2J..JY30 厚さ=1.850 |
1 | ||
| 23654 - WASHER(FOR RING PACKING) | ||||
| 23654-46010 |
2J..JY30 |
4 | ||
| 23760 - PIPE ASSY, NOZZLE LEAKAGE | ||||
| 23760-48011 |
2J..JY30 |
1 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-48020 |
2J..JY30 |
1 | ||
| 23770A - CLAMP OR CLIP(FOR NOZZLE LEAKAGE PIPE SET) | ||||
| 90461-08300 |
2J..JY30 |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 95332-04020 |
2J..JY30 *H,L=180 |
1 | ||
| 95332-04020 |
2J..JY30 *H,L=170 |
1 | ||
| Common parts | ||||
| 96132-30400 | ||||
