Toyota Toyoace JY30 MANIFOLD - JDM Part Detective

JY30-QDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983

Engine 2J

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

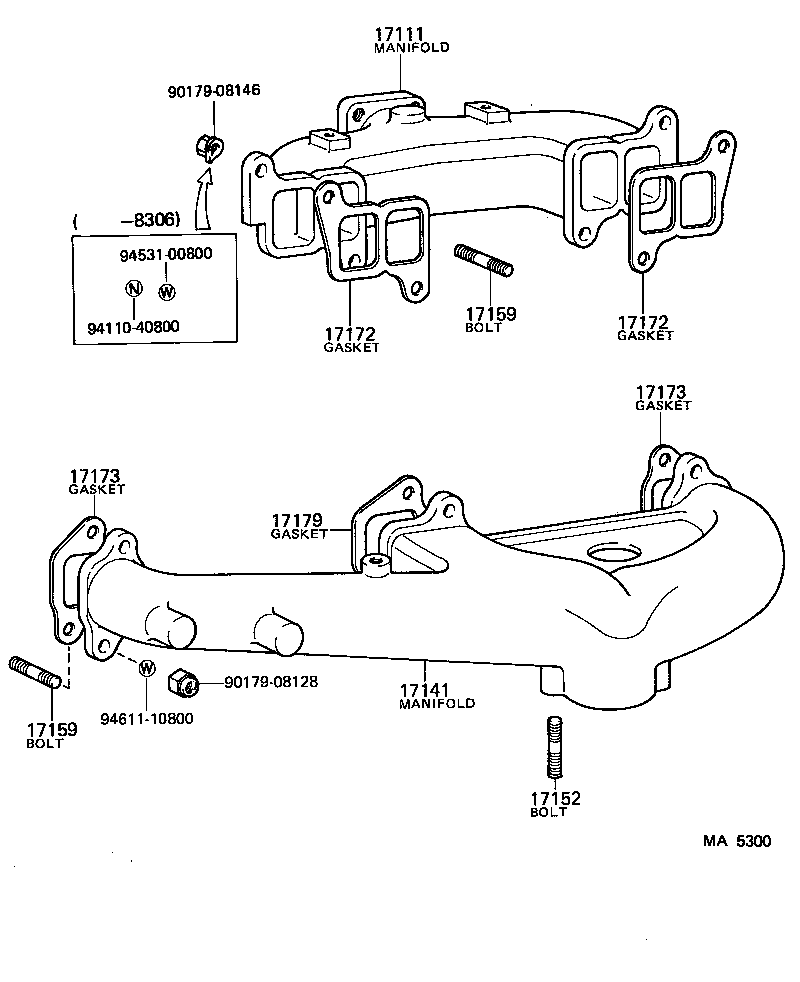

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-48040	2J..JY30	01/1982 - 08/1983	1
17111-48020	2J..JY30	03/1979 - 01/1982	1
17141 - MANIFOLD, EXHAUST
17141-48010	2J..JY30	03/1979 - 08/1983	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029	2J..JY30 L=42,S=16&23	07/1979 - 08/1983	2
90116-10029	2J..JY30 L=42,S=16&23	03/1979 - 07/1979	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013	2J..JY30 INTAKE MANIFOLD	03/1979 - 12/1981	4
90116-08017	2J..JY30 EXHAUST MANIFOLD	03/1979 - 05/1980	6
90116-08131	2J..JY30 INTAKE MANIFOLD	12/1981 - 08/1983	4
90116-08125	2J..JY30 EXHAUST MANIFOLD	05/1980 - 08/1983	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013	2J..JY30 INTAKE MANIFOLD	03/1979 - 12/1981	4
90116-08017	2J..JY30 EXHAUST MANIFOLD	03/1979 - 05/1980	6
90116-08131	2J..JY30 INTAKE MANIFOLD	12/1981 - 08/1983	4
90116-08125	2J..JY30 EXHAUST MANIFOLD	05/1980 - 08/1983	6
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-46011	2J..JY30	03/1979 - 08/1983	2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-46011	2J..JY30	03/1979 - 08/1983	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-48010	2J..JY30	03/1979 - 08/1983	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-48010	2J..JY30	03/1979 - 08/1983	2
17179 - GASKET, EXHAUST MANIFOLD, NO.2
17179-48010	2J..JY30	03/1979 - 08/1983	1
Common parts
90179-08128
90179-08146
94110-40800
94531-00800
94611-10800

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17111-48040	2J..JY30	01/1982 - 08/1983	1
17111-48020	2J..JY30	03/1979 - 01/1982	1
17141 - MANIFOLD, EXHAUST
17141-48010	2J..JY30	03/1979 - 08/1983	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029	2J..JY30 L=42,S=16&23	07/1979 - 08/1983	2
90116-10029	2J..JY30 L=42,S=16&23	03/1979 - 07/1979	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013	2J..JY30 INTAKE MANIFOLD	03/1979 - 12/1981	4
90116-08017	2J..JY30 EXHAUST MANIFOLD	03/1979 - 05/1980	6
90116-08131	2J..JY30 INTAKE MANIFOLD	12/1981 - 08/1983	4
90116-08125	2J..JY30 EXHAUST MANIFOLD	05/1980 - 08/1983	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013	2J..JY30 INTAKE MANIFOLD	03/1979 - 12/1981	4
90116-08017	2J..JY30 EXHAUST MANIFOLD	03/1979 - 05/1980	6
90116-08131	2J..JY30 INTAKE MANIFOLD	12/1981 - 08/1983	4
90116-08125	2J..JY30 EXHAUST MANIFOLD	05/1980 - 08/1983	6
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-46011	2J..JY30	03/1979 - 08/1983	2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-46011	2J..JY30	03/1979 - 08/1983	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-48010	2J..JY30	03/1979 - 08/1983	2
Common parts
90119-10211
90119-10346
90179-08088
90179-08123
91611-60825
91651-60816
94184-61000
