JY30-QDGHT (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7903- )

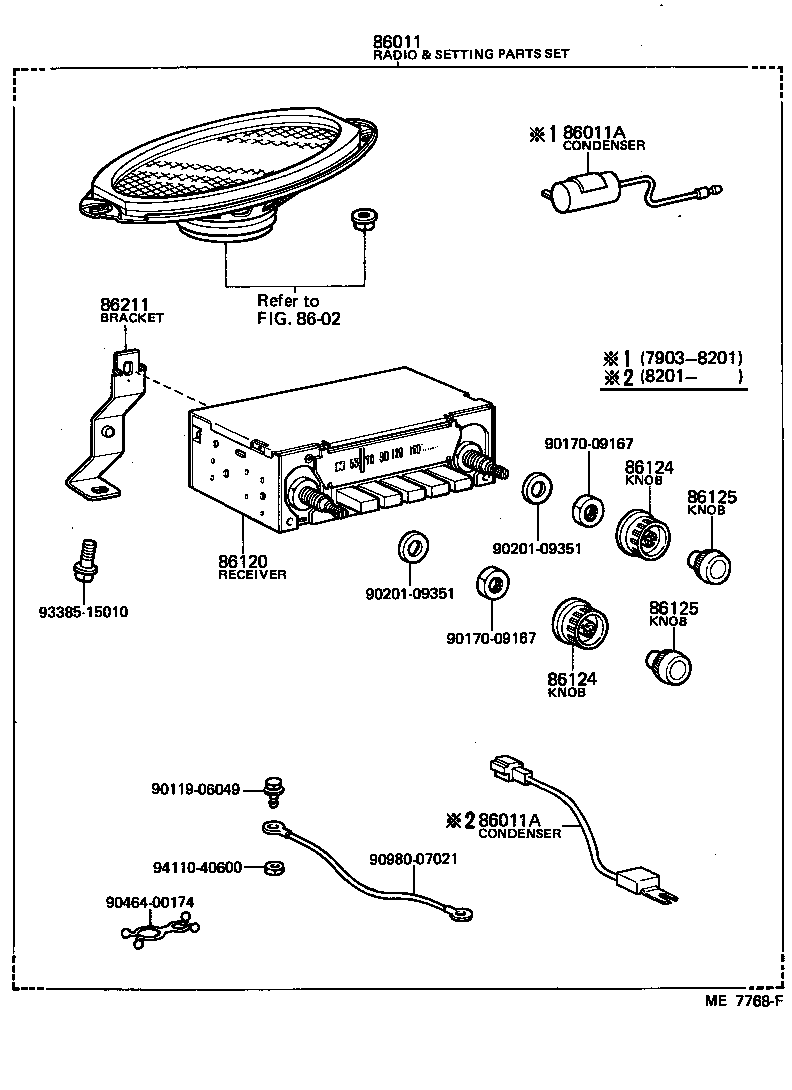

Click highlighted areas on diagram

diagram 86011 86011A 86011A 8602 86120 86124 86124 86125 86125 86211 9011906049 9017009167 9017009167 9020109351 9020109351 9046400174 9098007021 9338515010 9411040600
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-29175

JY30,LY2#,3#,RY2#,3#

12V,AM

 1
86011-95011

BY3#,JY30,LY2#,3#

24V,AM

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

BY30,JY30,LY20,30,RY20,31

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

BY30,JY30,LY20,30,RY20,31

 1
86120 - RECEIVER ASSY, RADIO
86120-95400

BY3#,JY30,LY2#,3#

24V,AM

 1
86120-95A00

JY30,LY2#,3#,RY2#,3#

12V,AM

 1
86120-95A02

BY30,JY30,LY20,30,RY21,32

12V,24V,AM/FM

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-95A00

BY3#,JY30,LY2#,3#,RY2#,3#

AM OR AM/FM

 2
86124 - KNOB, RADIO RECEIVER CONTROL
86124-95A00

BY3#,JY30,LY2#,3#,RY2#,3#

AM OR AM/FM

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-95A00

BY3#,JY30,LY2#,3#,RY2#,3#

AM OR AM/FM

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-95A00

BY3#,JY30,LY2#,3#,RY2#,3#

AM OR AM/FM

 2
86211 - BRACKET, RADIO, NO.1
86211-95010

BY3#,JY30,LY2#,3#,RY2#,3#

AM OR AM/FM

 1
Common parts
90119-06049
90170-09167
90201-09351
90464-00174
90980-07021
93385-15010
94110-40600
Linked diagrams
8602

ILLUST NO. 2 OF 2(7903- )

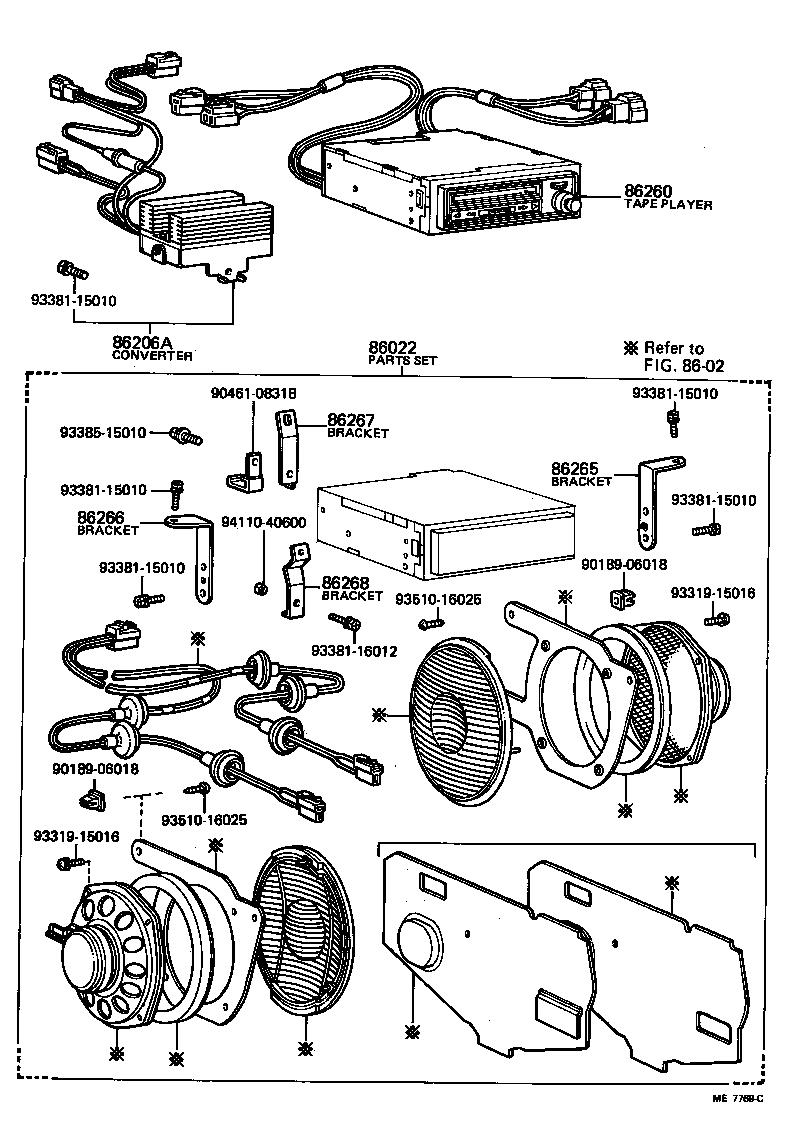

Click highlighted areas on diagram

diagram 8602 86022 86206A 86260 86265 86266 86267 86268 9018906018 9018906018 9046108318 9331915016 9331915016 9338115010 9338115010 9338115010 9338115010 9338115010 9338116012 9338515010 9351016025 9351016025 9411040600
Part # Description Qty Price
86022 - PARTS SET, TAPE PLAYER SETTING
86022-29015

JY30,LY20,30,RY20,31

 1
86206A - CONVERTER SUB-ASSY, VOLTAGE
86270-39015

BY3#,JY30,LY2#,3#

W/AM/FM RADIO OR TAPE PLAYER

 1
86260 - TAPE PLAYER ASSY
86260-95A01

BY3#,JY30,LY2#,3#,RY2#,3#

 1
86265 - BRACKET, TAPE PLAYER, NO.1
86237-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
86266 - BRACKET, TAPE PLAYER, NO.2
86238-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
86267 - BRACKET, TAPE PLAYER, NO.3
86239-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
86268 - BRACKET, TAPE PLAYER, NO.4
86236-95010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
Common parts
90189-06018
90461-08318
93319-15016
93381-15010
93381-16012
93385-15010
93510-16025
94110-40600
Linked diagrams
8602
