JY30-QDGHT (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )LY2#,3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95048 |
JY30 |
1 | ||
| 78180-95039 |
LY20,30 |
1 | ||
| 78180-95038 |
JY30 |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-95010 |
LY20,30 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78108-95012 |
LY20,30 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95014 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 78166A - SPRING, CLAMP, NO.1 | ||||
| 78166-95010 |
JY30,LY2#,3#,RY2#,3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95045 |
LY20,30 |
1 | ||
| 78150-95044 |
JY30 |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78191-95010 |
LY20,30 |
1 | ||
| 78191D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90461-10484 |
LY20,30 |
1 | ||
| 78191D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90461-10484 |
LY20,30 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95012 |
BY30,JY30,LY20,30 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95012 |
BY30,JY30,LY20,30 |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90386-10138 | ||||
| 90461-08426 | ||||
| 90461-08574 | ||||
| 90461-10357 | ||||
| 90468-06009 | ||||
| 90508-16010 | ||||
| 90508-18029 | ||||
| 90508-20016 | ||||
| 90989-01007 | ||||
| 91131-40670 | ||||
| 91131-40871 | ||||
| 91611-40614 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40620 | ||||
| 91655-40820 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||

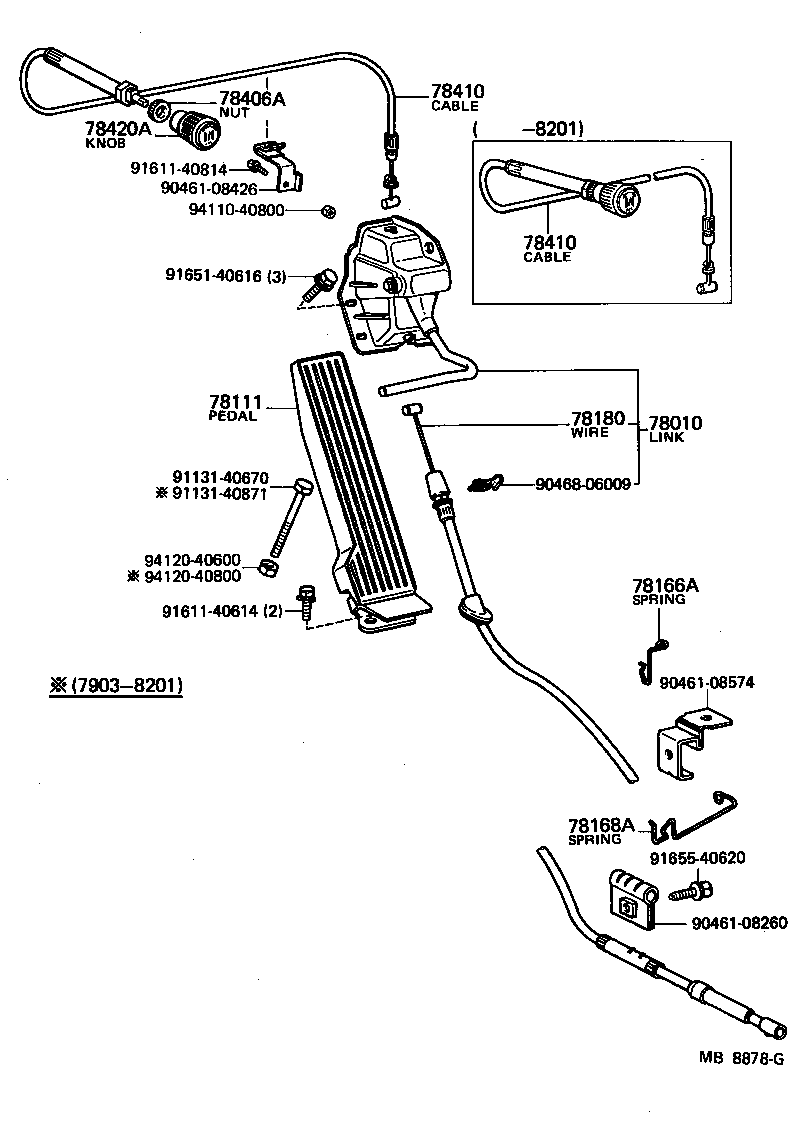

(7903-8308)JY30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95048 |
JY30 |
1 | ||
| 78180-95039 |
LY20,30 |
1 | ||
| 78180-95038 |
JY30 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95014 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 78166A - SPRING, CLAMP, NO.1 | ||||
| 78166-95010 |
JY30,LY2#,3#,RY2#,3# |
1 | ||
| 78168A - SPRING, CLAMP, NO.3 | ||||
| 78168-95010 |
JY30,RY2#,3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95045 |
LY20,30 |
1 | ||
| 78150-95044 |
JY30 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95012 |
BY30,JY30,LY20,30 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-95012 |
BY30,JY30,LY20,30 |
1 | ||
| Common parts | ||||
| 90461-08260 | ||||
| 90461-08426 | ||||
| 90461-08574 | ||||
| 90468-06009 | ||||
| 91131-40670 | ||||
| 91131-40871 | ||||
| 91611-40614 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91655-40620 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
