JY30-QDGHT (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

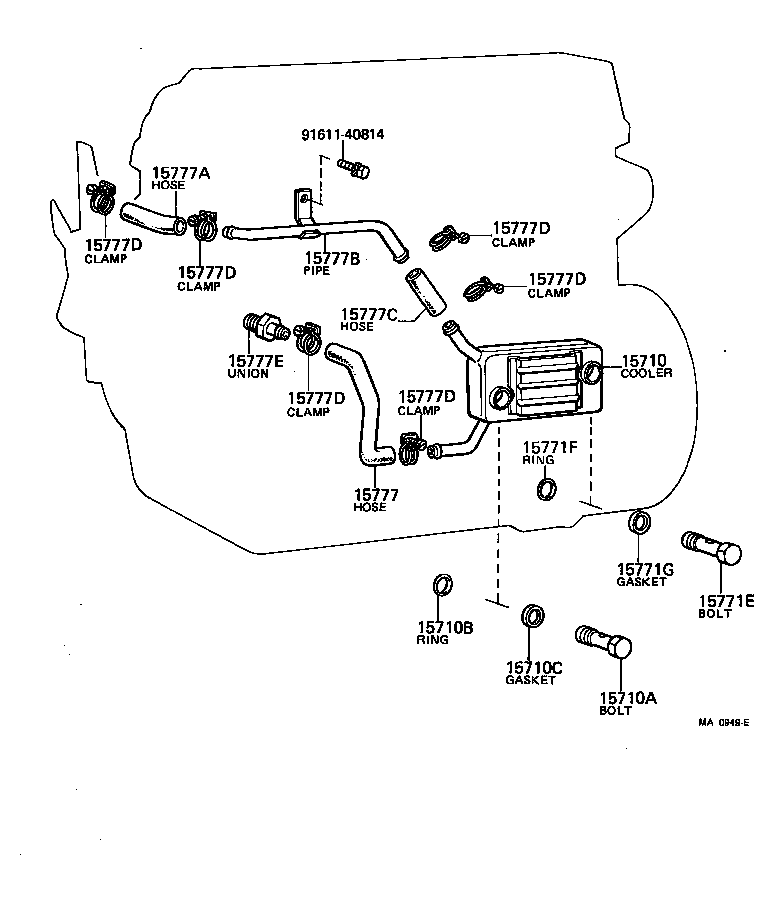

(7903-8308)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-48020 |
2J..JY30 3600 KCAL |
1 | ||
| 15710-48011 |
2J..JY30 3200 KCAL |
1 | ||
| 15710A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-18083 |
2J..JY30 |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2J..JY30 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
2J..JY30 |
1 | ||
| 15771E - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-18083 |
2J..JY30 |
1 | ||
| 15771F - RING, O | ||||
| 90301-21176 |
2J..JY30 |
1 | ||
| 15771G - GASKET | ||||
| 90430-18012 |
2J..JY30 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15777-48010 |
2J..JY30 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 90910-05067 |
2J..JY30 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 16268-48012 |
2J..JY30 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 90445-24847 |
2J..JY30 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 96112-10240 |
2J..JY30 |
6 | ||
| 15777E - UNION | ||||
| 90404-54116 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||

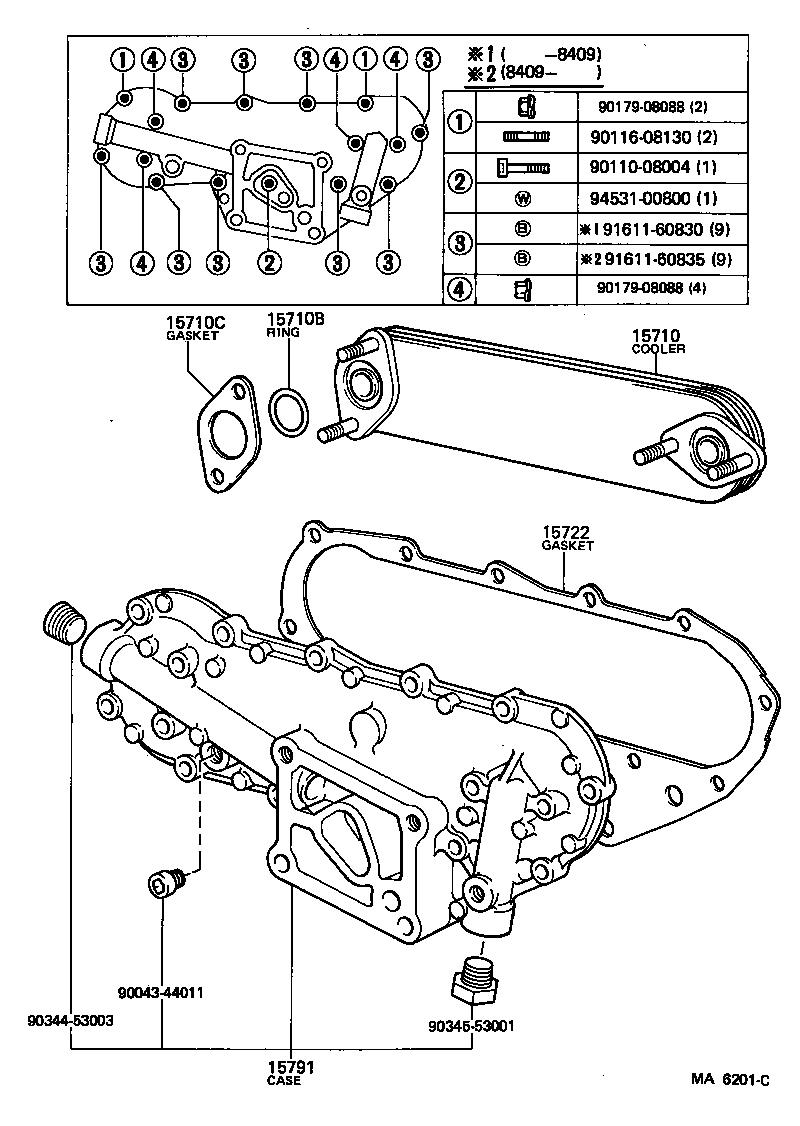

(8009- )B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-48020 |
2J..JY30 3600 KCAL |
1 | ||
| 15710-48011 |
2J..JY30 3200 KCAL |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| 90301-21176 |
2J..JY30 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90430-18012 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 90043-44011 | ||||
| 90110-08004 | ||||
| 90116-08130 | ||||
| 90179-08088 | ||||
| 90344-53003 | ||||
| 90345-53001 | ||||
| 91611-60830 | ||||
| 91611-60835 | ||||
| 94531-00800 | ||||
