JY30-QDGHT (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )2J

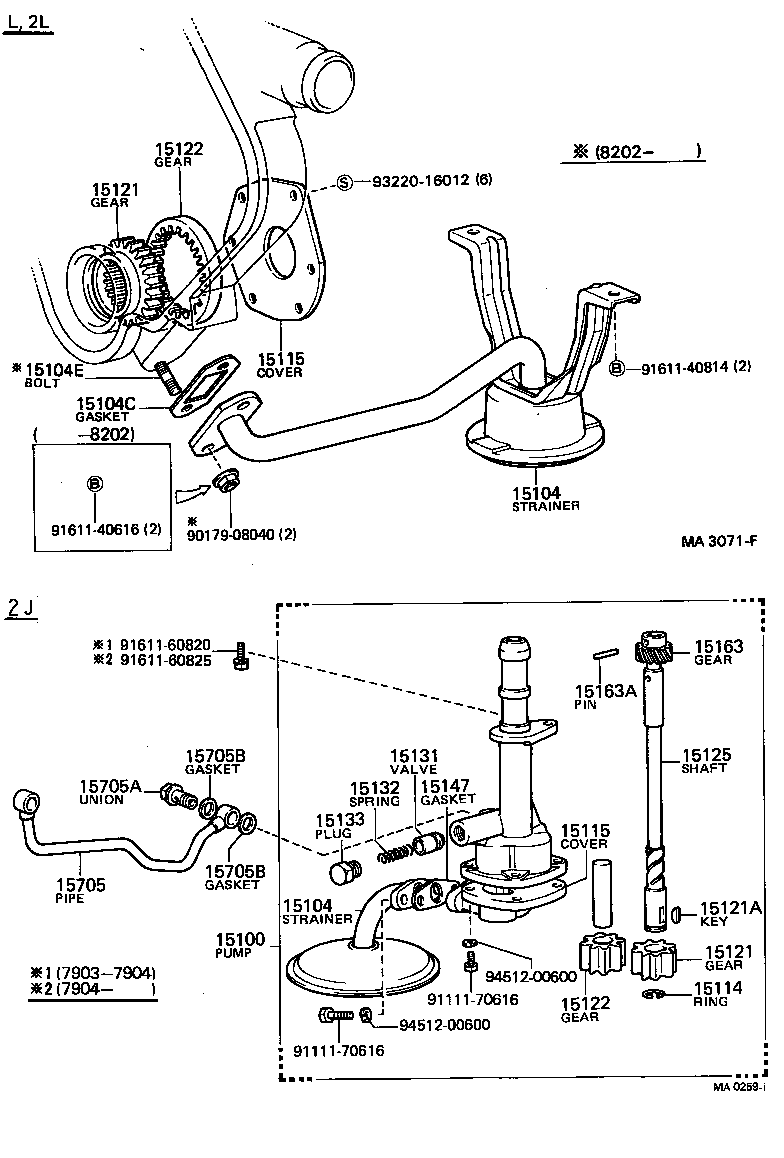

Click highlighted areas on diagram

MA3071F,MA0259I

diagram 15100 15104 15104 15104C 15104E 15114 15115 15115 15121 15121 15121A 15122 15122 15125 15131 15132 15133 15147 15163 15163A 15705 15705A 15705B 15705B 9017908040 9111170616 9111170616 9161140616 9161140814 9161160820 9161160825 9322016012 9451200600 9451200600
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-48021

2J..JY30

 1
15100-48021

2J..JY30

 1
15100-48020

2J..JY30

 1
15100-48020

2J..JY30

 1
15104 - STRAINER SUB-ASSY, OIL
15104-47020

2J..JY30

 1
15104-47020

2J..JY30

 1
15104 - STRAINER SUB-ASSY, OIL
15104-47020

2J..JY30

 1
15104-47020

2J..JY30

 1
15114 - RING, SHAFT SNAP
15114-46011

2J..JY30

 1
15114-46011

2J..JY30

 1
15115 - COVER, OIL PUMP
15115-48020

2J..JY30

 1
15115-48020

2J..JY30

 1
15115 - COVER, OIL PUMP
15115-48020

2J..JY30

 1
15115-48020

2J..JY30

 1
15121 - GEAR, OIL PUMP DRIVE
15121-46011

2J..JY30

N=7

 1
15121-46011

2J..JY30

N=7

 1
15121 - GEAR, OIL PUMP DRIVE
15121-46011

2J..JY30

N=7

 1
15121-46011

2J..JY30

N=7

 1
15121A - KEY, OIL PUMP DRIVE SHAFT
90280-03009

2J..JY30

 1
90280-03009

2J..JY30

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

2J..JY30

N=7

 1
15122-60010

2J..JY30

N=7

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

2J..JY30

N=7

 1
15122-60010

2J..JY30

N=7

 1
15125 - SHAFT, OIL PUMP
15125-46011

2J..JY30

 1
15125-46011

2J..JY30

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2J..JY30

 1
15131-24010

2J..JY30

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

2J..JY30

 1
15132-46010

2J..JY30

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2J..JY30

 1
15133-24010

2J..JY30

 1
15147 - GASKET, OIL STRAINER
15147-47010

2J..JY30

 1
15147-47010

2J..JY30

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-39410

2J..JY30

 1
15163-39410

2J..JY30

 1
15163A - PIN, STRAIGHT(FOR OIL PUMP DRIVE SHAFT GEAR)
90250-05089

2J..JY30

 1
90250-05089

2J..JY30

 1
15705 - PIPE SUB-ASSY, OIL, INJECTION PUMP INLET
15707-48010

2J..JY30

 1
15707-48010

2J..JY30

 1
15705A - UNION(FOR INJECTION PUMP INLET PIPE)
90401-10006

2J..JY30

 1
90401-10006

2J..JY30

 1
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

2J..JY30

 2
90430-10035

2J..JY30

 2
15705B - GASKET(FOR INJECTION PUMP INLET PIPE)
90430-10035

2J..JY30

 2
90430-10035

2J..JY30

 2
Common parts
90179-08040
91111-70616
91611-40616
91611-40814
91611-60820
91611-60825
93220-16012
94512-00600

(8009- )B

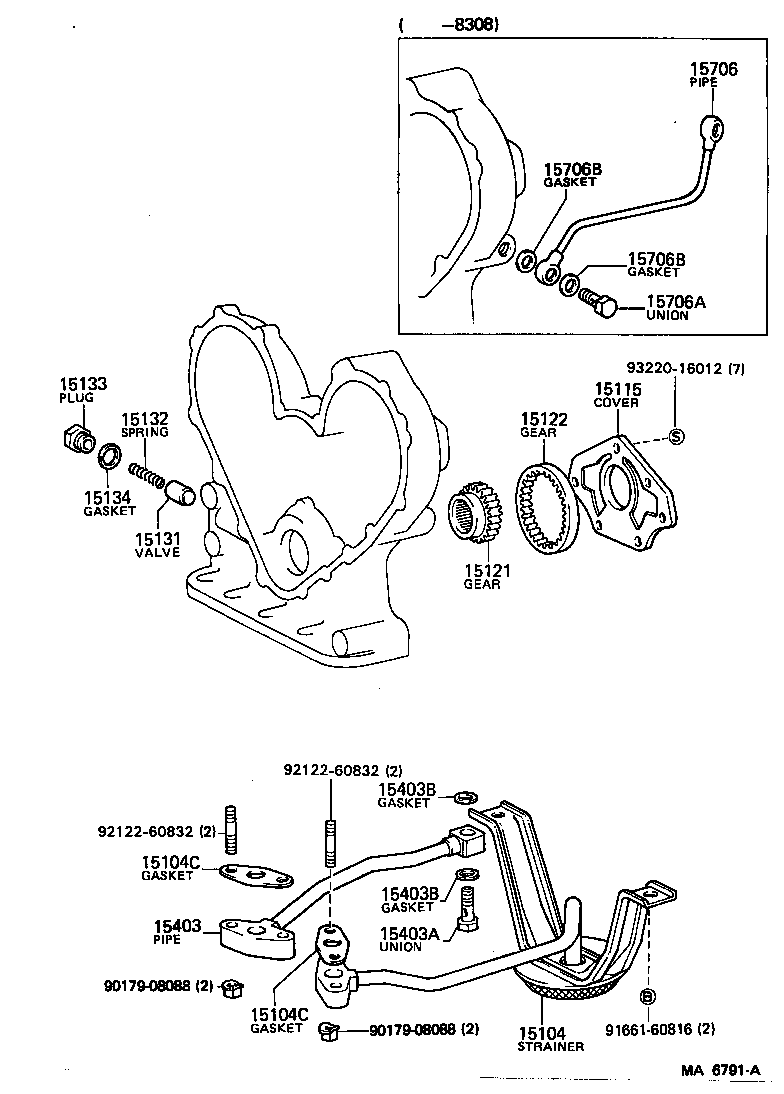

Click highlighted areas on diagram

diagram 15104 15104C 15104C 15115 15121 15122 15131 15132 15133 15134 15403 15403A 15403B 15403B 15706 15706A 15706B 15706B 9017908088 9017908088 9166160816 9212260832 9212260832 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-47020

2J..JY30

 1
15115 - COVER, OIL PUMP
15115-48020

2J..JY30

 1
15121 - GEAR, OIL PUMP DRIVE
15121-46011

2J..JY30

N=7

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-60010

2J..JY30

N=7

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

2J..JY30

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46010

2J..JY30

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

2J..JY30

 1
Common parts
90179-08088
91661-60816
92122-60832
93220-16012
