JY30-QDDH (1979)
Toyota Toyoace
(7903- )LY2#,3#,RY2#,3#..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

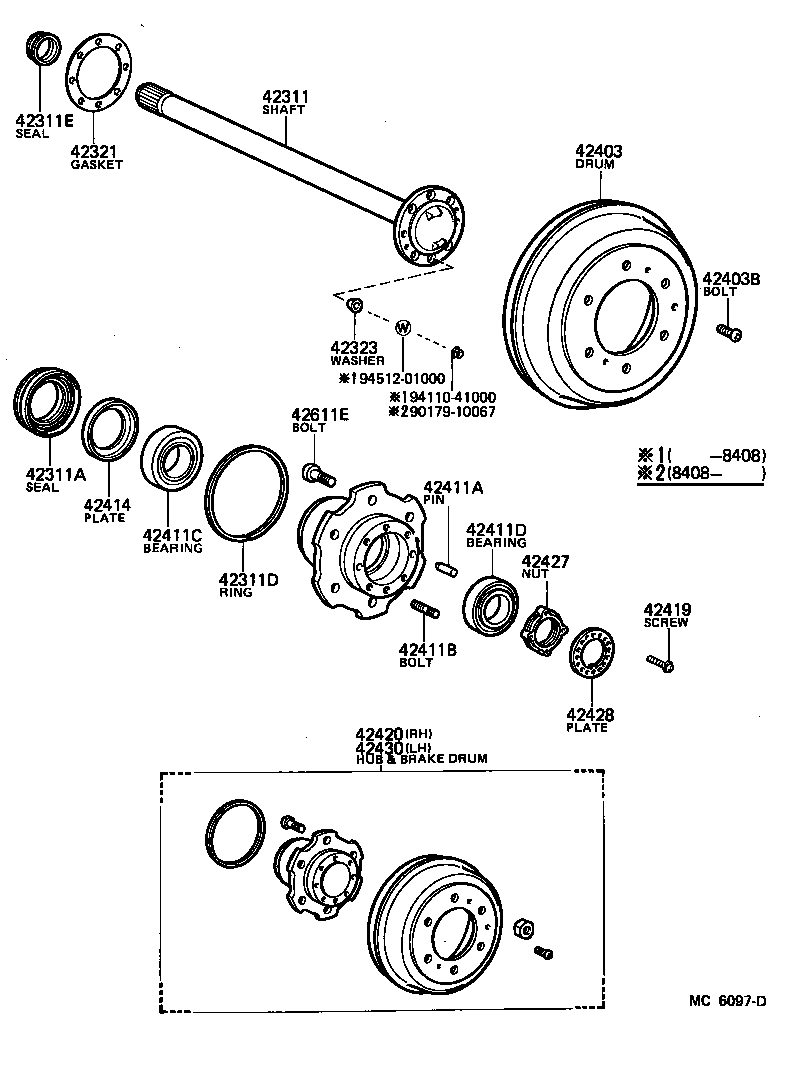

| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36050 |
BY31,JY30..ST |
2 | ||
| 42311-25030 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-47001 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42404-36010 |
BY3#,JY30 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90365-47013 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42325 - LOCK, REAR AXLE SHAFT | ||||
| 42325-55010 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25040 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 43512-36020 |
BY31,JY30..ST |
2 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10015 |
JY30..ST |
2 | ||
| 90113-10035 |
LY20,30,RY2#,3#..ST |
2 | ||
| 42441 - DEFLECTOR, BRAKE DRUM OIL | ||||
| 42441-25010 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR | ||||
| 42443-25010 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02025 |
BY31,JY30..ST LH |
6 | ||
| 90942-02030 |
LY2#,3#,RY2#,3#..ST |
12 | ||
| 90942-02024 |
BY31,JY30..ST RH |
6 | ||
(7903- )BY31,JY30..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36050 |
BY31,JY30..ST |
2 | ||
| 42311-25030 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-47001 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 42404-36010 |
BY3#,JY30 |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90520-99065 |
BY31,JY30..ST |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-38033 |
BY3#,JY30 |
2 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36010 |
BY3#,JY30 |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BY3#,JY30 |
12 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-25040 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 43512-36020 |
BY31,JY30..ST |
2 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10015 |
JY30..ST |
2 | ||
| 90113-10035 |
LY20,30,RY2#,3#..ST |
2 | ||
| 42411A - PIN, STRAIGHT (FOR REAR AXLE HUB) | ||||
| 90250-10055 |
BY3#,JY30 |
4 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10191 |
BY3#,JY30 |
12 | ||
| 42411C - BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING) | ||||
| 90368-57010 |
BY3#,JY30 |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-50008 |
BY3#,JY30 |
2 | ||
| 42414 - PLATE, REAR AXLE HUB | ||||
| 42414-36010 |
BY3#,JY30 |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BY3#,JY30 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36050 |
BY31,JY30..ST |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36010 |
BY3#,JY30 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36010 |
BY3#,JY30 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36050 |
BY31,JY30..ST |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02025 |
BY31,JY30..ST LH |
6 | ||
| 90942-02030 |
LY2#,3#,RY2#,3#..ST |
12 | ||
| 90942-02024 |
BY31,JY30..ST RH |
6 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
