JY30-QDBH3 (1979)
Toyota Toyoace

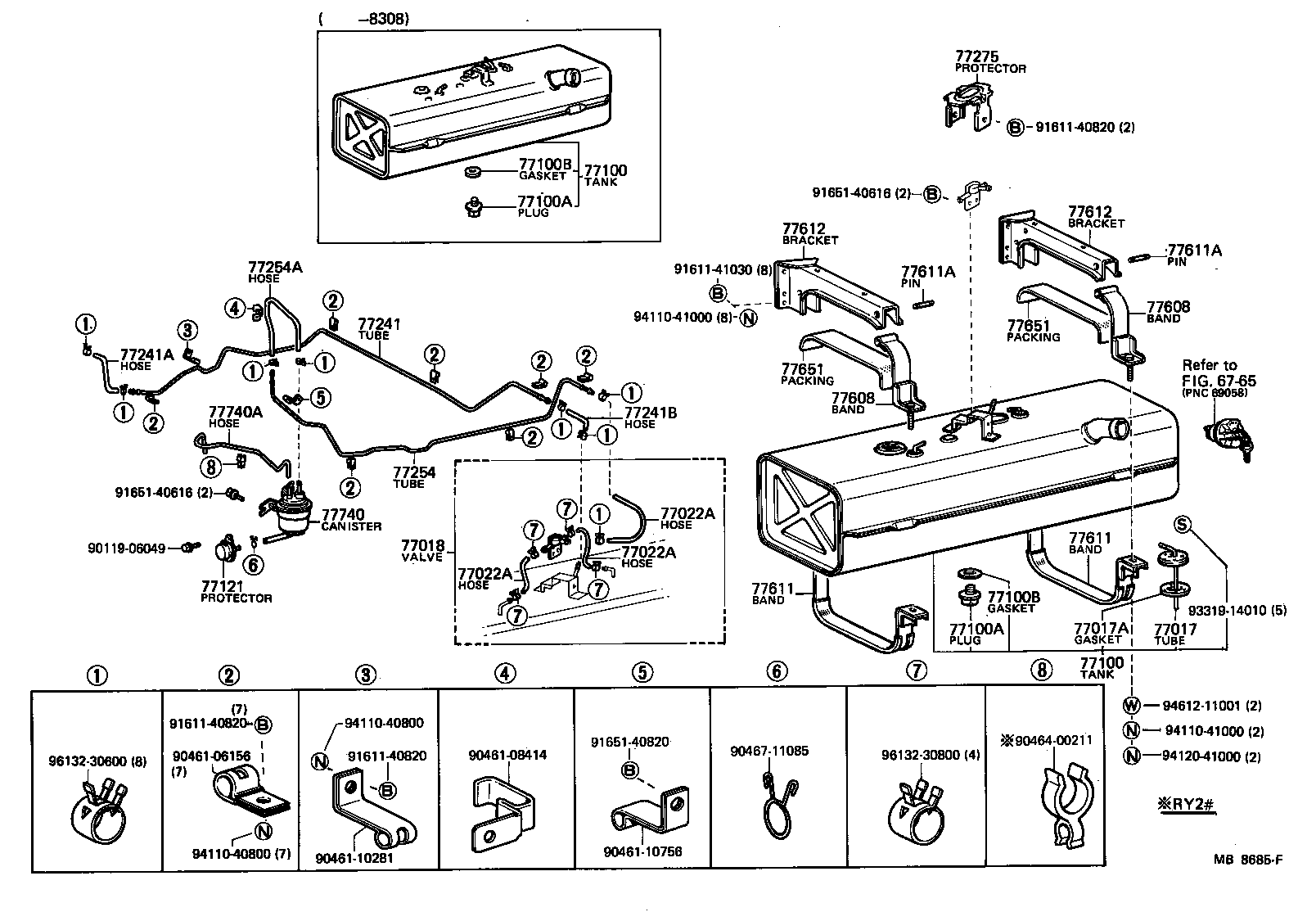

(7903- )RY2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36051 |
RY2#,3# |
1 | ||
| 77018-25080 |
LY2#,3# |
1 | ||
| 77018-36061 |
JY30 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25140 |
LY20,30 |
1 | ||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25150 |
JY30 |
1 | ||
| 77001-25141 |
LY20,30 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25140 |
LY20,30 |
1 | ||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25150 |
JY30 |
1 | ||
| 77001-25141 |
LY20,30 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
RY2#,3# |
1 | ||
| 77243-36010 |
BY3#,JY30,LY2#,3# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-25130 |
JY30 |
1 | ||
| 77251-25131 |
JY30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
LY20,30 *H,L=340,内径=7.6 |
1 | ||
| 95332-10017 |
JY30 *H,L=170 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-10020 |
JY30 *H,L=200 |
2 | ||
| 95332-06020 |
RY2#,3# *H,L=130 |
1 | ||
| 95332-08020 |
LY2#,3# *H,L=120,内径=7.6 |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06040 |
RY2#,3# *H,L=360 |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 77197-36010 |
JY30,LY2#,3#,RY2#,3#..DMP,T3 |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26011 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26011 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-25030 |
JY30 FR |
1 | ||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77502-25010 |
JY30 RR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-25030 |
JY30 FR |
1 | ||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77502-25010 |
JY30 RR |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-25030 |
RY2#,3# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95411-19995 |
RY2#,3# *H,L=700,ﾏｰｸ=#* |
1 | ||
| Common parts | ||||
| 90119-06049 | ||||
| 90461-06156 | ||||
| 90461-08414 | ||||
| 90461-10281 | ||||
| 90461-10756 | ||||
| 90464-00211 | ||||
| 90467-11085 | ||||
| 91611-40820 | ||||
| 91611-41030 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 6765 | ||||

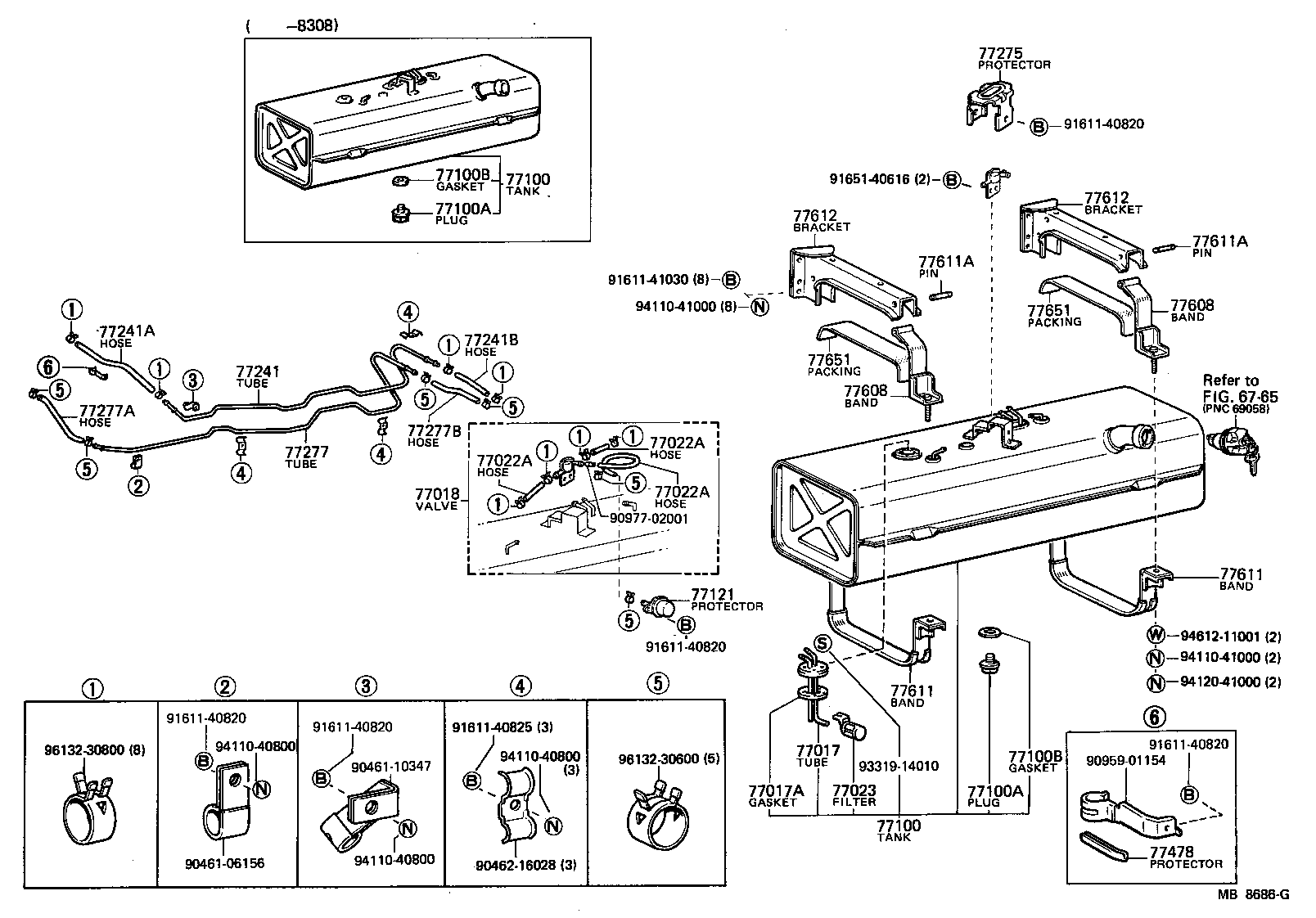

(7903- )LY2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36051 |
RY2#,3# |
1 | ||
| 77018-25080 |
LY2#,3# |
1 | ||
| 77018-36061 |
JY30 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25140 |
LY20,30 |
1 | ||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25150 |
JY30 |
1 | ||
| 77001-25141 |
LY20,30 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25140 |
LY20,30 |
1 | ||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25150 |
JY30 |
1 | ||
| 77001-25141 |
LY20,30 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
RY2#,3# |
1 | ||
| 77243-36010 |
BY3#,JY30,LY2#,3# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-25130 |
JY30 |
1 | ||
| 77251-25131 |
JY30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
LY20,30 *H,L=340,内径=7.6 |
1 | ||
| 95332-10017 |
JY30 *H,L=170 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-10020 |
JY30 *H,L=200 |
2 | ||
| 95332-06020 |
RY2#,3# *H,L=130 |
1 | ||
| 95332-08020 |
LY2#,3# *H,L=120,内径=7.6 |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 77197-36010 |
JY30,LY2#,3#,RY2#,3#..DMP,T3 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LY2#,3# *H,L=280 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
LY2#,3# *H,L=120 |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26011 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26011 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-25030 |
JY30 FR |
1 | ||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77502-25010 |
JY30 RR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-25030 |
JY30 FR |
1 | ||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77502-25010 |
JY30 RR |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| Common parts | ||||
| 90461-06156 | ||||
| 90461-10347 | ||||
| 90462-16028 | ||||
| 90959-01154 | ||||
| 90977-02001 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-41030 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| Linked diagrams | ||||
| 6765 | ||||

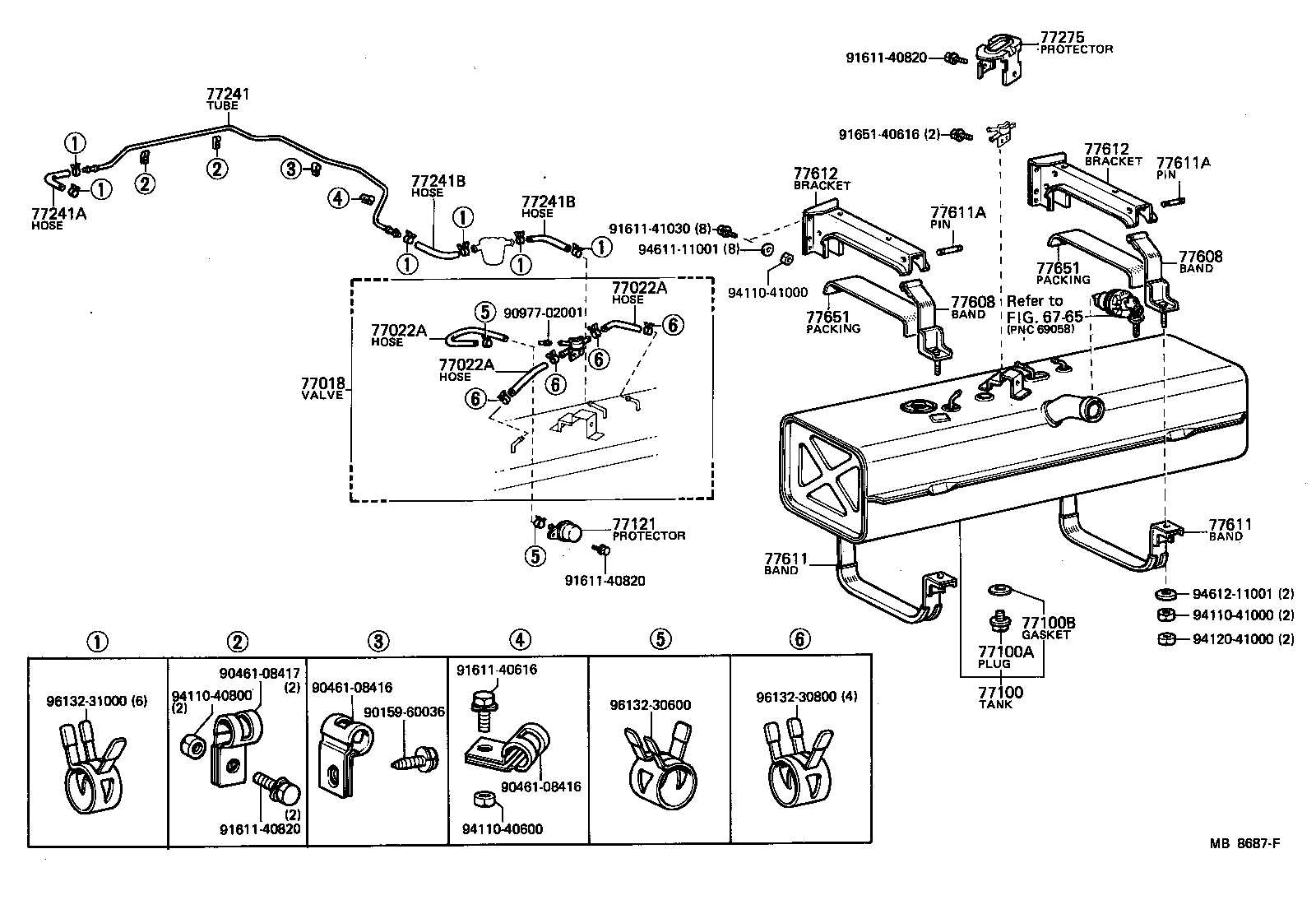

(7903-8308)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36051 |
RY2#,3# |
1 | ||
| 77018-25080 |
LY2#,3# |
1 | ||
| 77018-36061 |
JY30 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25140 |
LY20,30 |
1 | ||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25150 |
JY30 |
1 | ||
| 77001-25141 |
LY20,30 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
RY2#,3# |
1 | ||
| 77243-36010 |
BY3#,JY30,LY2#,3# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-25130 |
JY30 |
1 | ||
| 77251-25131 |
JY30 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
LY20,30 *H,L=340,内径=7.6 |
1 | ||
| 95332-10017 |
JY30 *H,L=170 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-10020 |
JY30 *H,L=200 |
2 | ||
| 95332-06020 |
RY2#,3# *H,L=130 |
1 | ||
| 95332-08020 |
LY2#,3# *H,L=120,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95331-10020 |
JY30 *H,L=200 |
2 | ||
| 95332-06020 |
RY2#,3# *H,L=130 |
1 | ||
| 95332-08020 |
LY2#,3# *H,L=120,内径=7.6 |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 77197-36010 |
JY30,LY2#,3#,RY2#,3#..DMP,T3 |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26011 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26011 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-25030 |
JY30 FR |
1 | ||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77502-25010 |
JY30 RR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-25030 |
JY30 FR |
1 | ||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77502-25010 |
JY30 RR |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| Common parts | ||||
| 90159-60036 | ||||
| 90461-08416 | ||||
| 90461-08417 | ||||
| 90977-02001 | ||||
| 91611-40616 | ||||
| 91611-40820 | ||||
| 91611-41030 | ||||
| 91651-40616 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94611-11001 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96132-31000 | ||||
| Linked diagrams | ||||
| 6765 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
