JY30-QDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

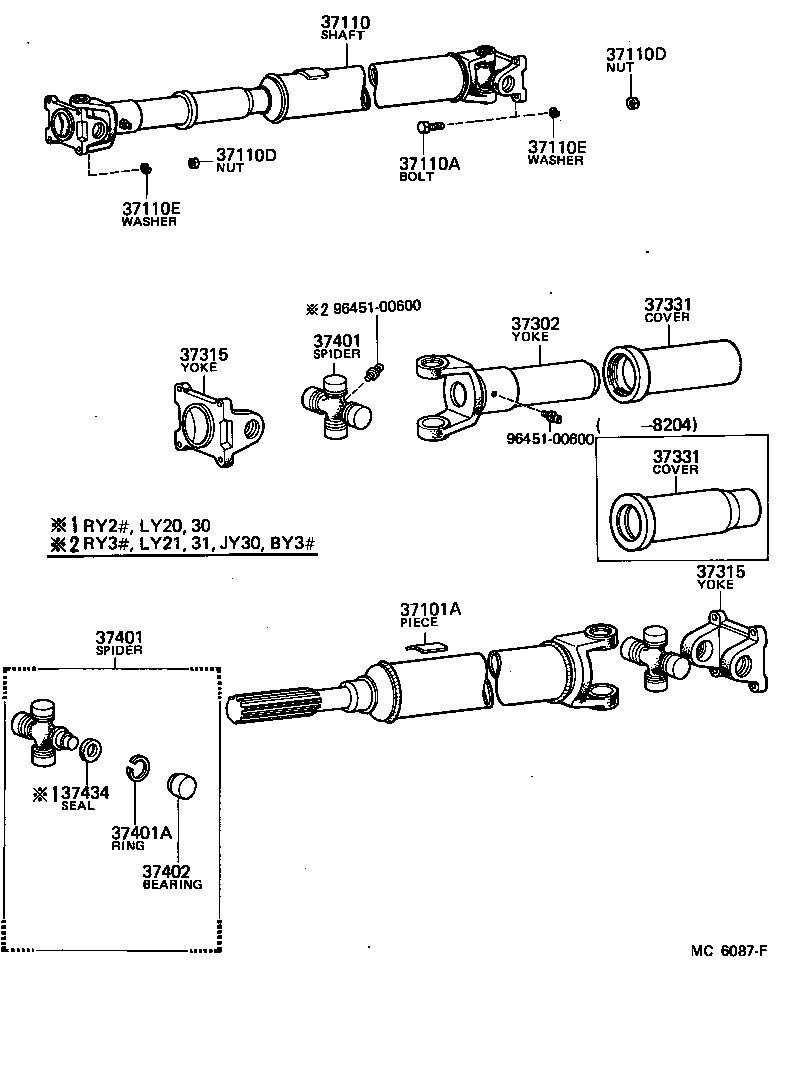

Click highlighted areas on diagram

diagram 37101A 37110 37110A 37110D 37110D 37110E 37110E 37302 37315 37315 37331 37331 37401 37401 37401A 37402 37434 9645100600 9645100600
Part # Description Qty Price
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01011

LY20,30,RY2#

20G

 1
90937-01012

LY20,30,RY2#

30G

 1
90937-01140

BY3#,JY30,LY21,31,RY3#

30G,長さ=62.2,30G

 1
90937-01148

BY3#,JY30,LY21,31,RY3#

4G,厚さ=2.0,4G

 1
90937-01022

LY20,30,RY2#

5G,5G

 1
90937-01154

BY3#,JY30,LY21,31,RY3#

18G,長さ=37.3,18G

 1
90937-01010

LY20,30,RY2#

10G

 1
90937-01157

BY3#,JY30,LY21,31,RY3#

26G,長さ=53.9,26G

 1
90937-01132

BY3#,JY30,LY21,31,RY3#

10G,長さ=20.7,10G

 1
90937-01156

BY3#,JY30,LY21,31,RY3#

24G,長さ=49.7,24G

 1
90937-01153

BY3#,JY30,LY21,31,RY3#

16G,長さ=33.2,16G

 1
90937-01155

BY3#,JY30,LY21,31,RY3#

22G,長さ=45.6,22G

 1
90937-01136

BY3#,JY30,LY21,31,RY3#

20G,長さ=41.4,20G

 1
90937-01152

BY3#,JY30,LY21,31,RY3#

14G,長さ=29.0,14G

 1
90937-01149

BY3#,JY30,LY21,31,RY3#

6G,長さ=12.4,6G

 1
90937-01158

BY3#,JY30,LY21,31,RY3#

28G,長さ=58.1,28G

 1
90937-01151

BY3#,JY30,LY21,31,RY3#

12G,長さ=24.9,12G

 1
90937-01150

BY3#,JY30,LY21,31,RY3#

8G,長さ=16.6,8G

 1
90937-01147

BY3#,JY30,LY21,31,RY3#

2G,厚さ=2.0,2G

 1
37110 - SHAFT ASSY, PROPELLER
37110-25170

JY30..DMP,T1,T3

L=1136

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-11468

BY30,JY30,RY3#

 4
90101-08214

LY20,30,RY2#

*8−1.25PX25−12

 4
90101-08082

LY20,30,RY21

*8−1.25PX25−12

 4
37110D - NUT (FOR PROPELLER SHAFT)
94110-50800

LY20,30,RY2#

 8
90170-11205

BY30,JY30,RY3#

 8
90170-08015

LY20,30,RY21

 8
37110D - NUT (FOR PROPELLER SHAFT)
94110-50800

LY20,30,RY2#

 8
90170-11205

BY30,JY30,RY3#

 8
90170-08015

LY20,30,RY21

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90206-11085

BY30,JY30,RY3#

 8
94512-00800

LY20,30,RY2#

 8
37110E - WASHER (FOR PROPELLER SHAFT)
90206-11085

BY30,JY30,RY3#

 8
94512-00800

LY20,30,RY2#

 8
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-36010

BY3#,JY30,LY21,31,RY3#

 1
37302-25010

LY20,30,RY2#

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35021

LY20,30,RY2#

 2
37315-36010

BY3#,JY30,LY21,31,RY3#

 2
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-35021

LY20,30,RY2#

 2
37315-36010

BY3#,JY30,LY21,31,RY3#

 2
37331 - COVER, SLIDING SHAFT DUST
37305-25010

BY30,JY30,LY20,30,RY2#,3#

 1
37331 - COVER, SLIDING SHAFT DUST
37305-25010

BY30,JY30,LY20,30,RY2#,3#

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-36021

BY3#,JY30,LY21,31,RY3#

 2
04371-25010

LY20,30,RY2#

 2
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-36021

BY3#,JY30,LY21,31,RY3#

 2
04371-25010

LY20,30,RY2#

 2
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90520-29002

BY3#,JY30,LY21,31,RY3#

厚さ=1.53,T=1.53

 8
90521-29071

LY20,30,RY2#

厚さ=2.425−2.475,T=2.45

 8
90521-29070

LY20,30,RY2#

厚さ=2.375−2.425,T=2.4

 8
90520-29288

BY3#,JY30,LY21,31,RY3#

厚さ=1.59,T=1.59

 8
90520-29287

BY3#,JY30,LY21,31,RY3#

厚さ=1.56,T=1.56

 8
90521-29072

LY20,30,RY2#

厚さ=2.475−2.525,T=2.5

 8
90520-29286

BY3#,JY30,LY21,31,RY3#

厚さ=1.50,T=1.50

 8
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-36060

BY3#,JY30,LY21,31,RY3#

 8
37402-25020

LY20,30,RY2#

 8
37434 - SEAL, UNIVERSAL JOINT SPIDER BEARING
37434-25010

LY20,30,RY2#

 8
Common parts
96451-00600
