JY30-QDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

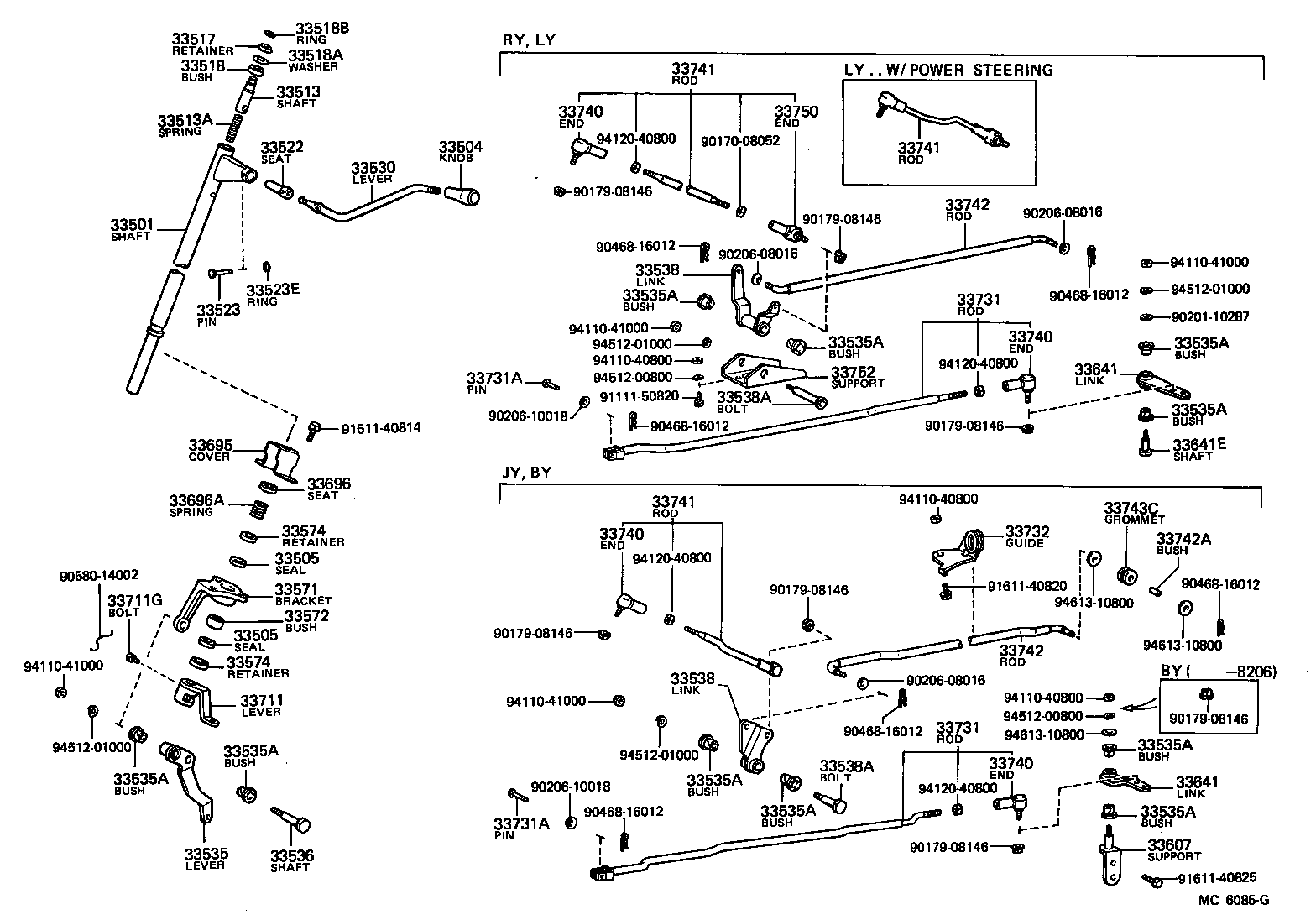

ILLUST NO. 1 OF 2(7903- )

Click highlighted areas on diagram

diagram 33501 33504 33505 33505 33513 33513A 33517 33518 33518A 33518B 33522 33523 33523E 33530 33535 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33536 33538 33538 33538A 33538A 33571 33572 33574 33574 33607 33641 33641 33641E 33695 33696 33696A 33711 33711G 33731 33731 33731A 33731A 33732 33740 33740 33740 33740 33741 33741 33741 33742 33742 33742A 33743C 33750 33752 9017008052 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9020110287 9020608016 9020608016 9020608016 9020610018 9020610018 9046816012 9046816012 9046816012 9046816012 9046816012 9046816012 9058014002 9111150820 9161140814 9161140820 9161140825 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9412040800 9412040800 9412040800 9412040800 9451200800 9451200800 9451201000 9451201000 9451201000 9451201000 9461310800 9461310800 9461310800
Part # Description Qty Price
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-25060

BY30,JY30,LY20,30,RY2#,3#

 1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17005

BY3#,JY30,LY2#,3#,RY2#,3#

 2
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17005

BY3#,JY30,LY2#,3#,RY2#,3#

 2
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-36020

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14395

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33517 - RETAINER, CONTROL SHAFT UPPER SPRING
33517-30010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-36010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33515-30010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-36010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
90249-07001

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33523E - RING, E (FOR SHIFT LEVER PIN)
96160-00500

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-25070

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535-25070

BY30,JY30,LY20,30,RY20,31

 1
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

BY3#,JY30,LY2#,3#,RY2#,3#

 6
33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33536-36040

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33538 - LINK, SHIFTING LEVER
33538-25070

LY2#,3#,RY2#,3#

 1
33538-25090

BY3#,JY30

 1
33538 - LINK, SHIFTING LEVER
33538-25070

LY2#,3#,RY2#,3#

 1
33538-25090

BY3#,JY30

 1
33538A - BOLT (FOR SHIFTING LEVER LINK SETTING)
33536-36040

BY3#,JY30

 1
33536-25020

LY2#,3#,RY2#,3#

 1
33538A - BOLT (FOR SHIFTING LEVER LINK SETTING)
33536-36040

BY3#,JY30

 1
33536-25020

LY2#,3#,RY2#,3#

 1
33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33571-25040

BY30,JY30,LY20,30,RY2#,3#

 1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-36010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-25010

BY3#,JY30,LY2#,3#,RY2#,3#

 2
33607 - SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)
33607-25010

JY30

 1
33641 - LINK, SELECTING (FOR COLUMN SHIFT)
33641-25070

LY2#,3#,RY2#,3#

 1
33641-25080

BY3#,JY30

 1
33641 - LINK, SELECTING (FOR COLUMN SHIFT)
33641-25070

LY2#,3#,RY2#,3#

 1
33641-25080

BY3#,JY30

 1
33641E - SHAFT, SELECTING LINK
33536-36040

LY2#,3#,RY2#,3#

 1
33695 - COVER, SELECTING SPRING (FOR COLUMN SHIFT)
33695-25010

BY30,JY30,LY20,30,RY20,31

 1
33696 - SEAT, SELECT SPRING
33696-36010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33696A - SPRING, COMPRESSION
90501-20713

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33527-25060

BY30,JY30,LY20,30,RY2#,3#

 1
33711G - BOLT, CONTROL SHAFT LEVER LOCK
33218-35010

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-25110

LY20,30

 1
33720-25120

JY30

 1
33720-25090

RY2#,3#

 1
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-25110

LY20,30

 1
33720-25120

JY30

 1
33720-25090

RY2#,3#

 1
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08040

JY30,LY20,30,RY20,31

 1
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08040

JY30,LY20,30,RY20,31

 1
33732 - GUIDE, SELECTING ROD
33732-25020

BY3#,JY30

 1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-25070

LY2#,3#,RY2#,3#

 1
33710-25090

BY3#,JY30

 1
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-25070

LY2#,3#,RY2#,3#

 1
33710-25090

BY3#,JY30

 1
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-25070

LY2#,3#,RY2#,3#

 1
33710-25090

BY3#,JY30

 1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33742-25080

JY30

 1
33742-25070

LY2#,3#,RY2#,3#

 1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33742-25080

JY30

 1
33742-25070

LY2#,3#,RY2#,3#

 1
33742A - BUSH(FOR SHIFTING ROD NO.2)
90389-08005

BY3#,JY30

 1
33743C - GROMMET
90480-17177

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 1
33752 - SUPPORT, CONTROL LINK
33752-25010

LY2#,3#,RY2#,3#

 1
Common parts
90170-08052
90179-08146
90201-10287
90206-08016
90206-10018
90468-16012
90580-14002
91111-50820
91611-40814
91611-40820
91611-40825
94110-40800
94110-41000
94120-40800
94512-00800
94512-01000
94613-10800

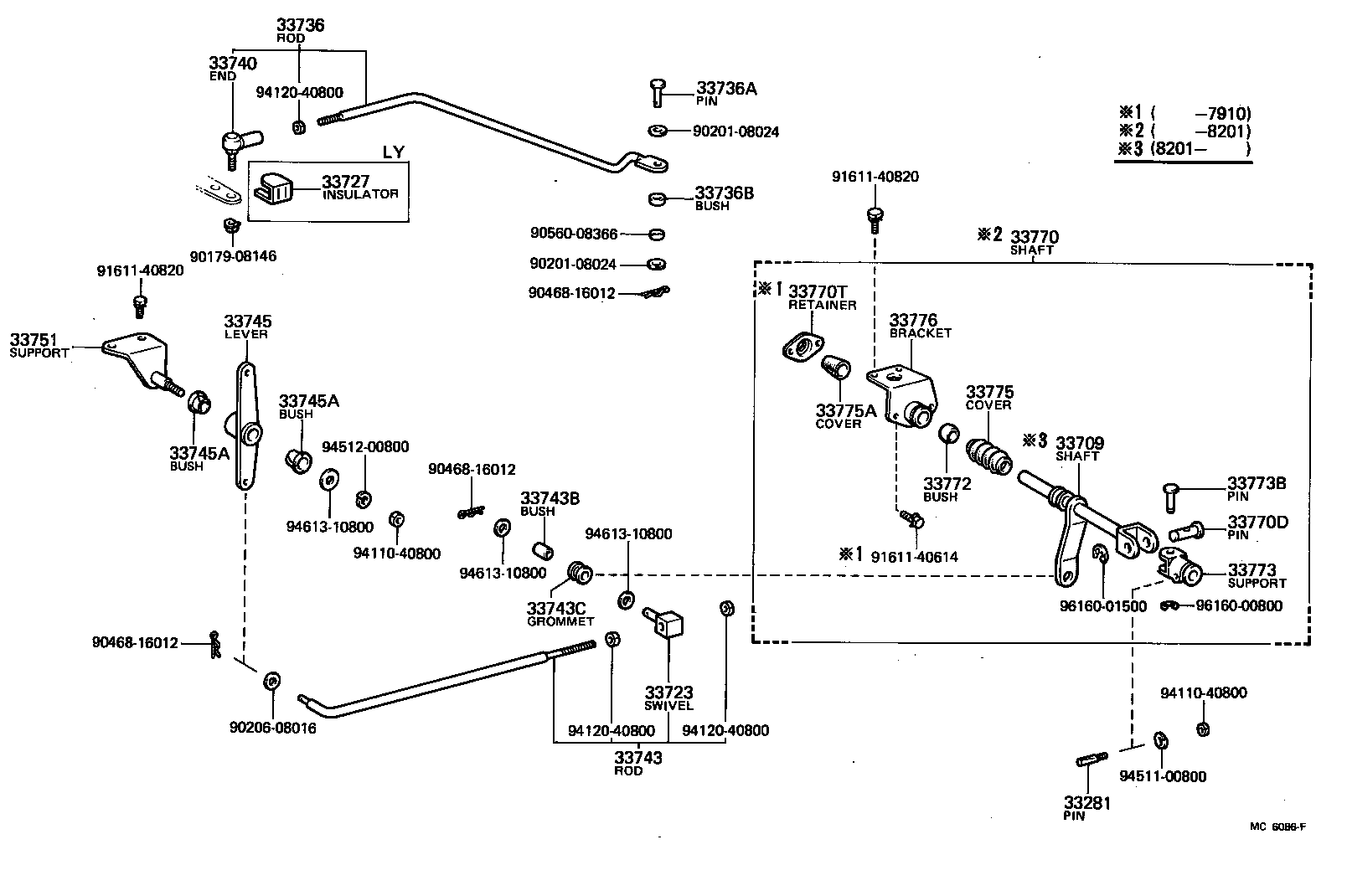

ILLUST NO. 2 OF 2(7903- )LY2#,3#,RY2#,3#

Click highlighted areas on diagram

diagram 33281 33709 33723 33727 33736 33736A 33736B 33740 33743 33743B 33743C 33745 33745A 33745A 33751 33770 33770D 33770T 33772 33773 33773B 33775 33775A 33776 9017908146 9020108024 9020108024 9020608016 9046816012 9046816012 9046816012 9056008366 9161140614 9161140820 9161140820 9411040800 9411040800 9412040800 9412040800 9412040800 9451100800 9451200800 9461310800 9461310800 9461310800 9616000800 9616001500
Part # Description Qty Price
33281 - PIN, LEVER LOCK (FOR COLUMN SHIFT)
33282-57010

LY2#,3#,RY2#,3#

 1
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-10020

LY2#,3#,RY2#,3#

 1
33727 - INSULATOR, CONNECTING ROD BUSH HEAT
33727-25010

LY2#,3#

 1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33790-25120

JY30

 1
33790-25080

LY2#,3#,RY2#,3#

 1
33736A - PIN, W/HOLE
90240-08040

JY30,LY20,30,RY20,31

 1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90385-10063

LY2#,3#,RY2#,3#

 1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-25010

LY20,30,RY20,31

 1
33840-25030

JY30;BY3#..TR

 1
33743B - BUSH, NO.1
90389-08005

LY2#,3#,RY2#,3#

 1
33743C - GROMMET
90480-17177

BY3#,JY30,LY2#,3#,RY2#,3#

 1
33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)
33745-25050

LY2#,3#,RY2#,3#

 1
33749-25010

JY30

 1
33745A - BUSH (FOR SHIFTING, NO.2 LEVER)
90386-13007

LY2#,3#,RY2#,3#

 2
33745A - BUSH (FOR SHIFTING, NO.2 LEVER)
90386-13007

LY2#,3#,RY2#,3#

 2
33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT)
33705-25070

LY2#,3#,RY2#,3#

 1
33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
33770-25080

JY30

 1
33770-25040

LY20,30,RY20,31

 1
33770-25041

LY20,30,RY20,31

 1
33770D - PIN (FOR CROSS SHAFT)
90249-17001

LY2#,3#,RY2#,3#

 1
33770T - RETAINER, DUST SEAL (FOR CROSS SHAFT)
33574-25020

LY20,30,RY20,31

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

JY30

 4
33772-35011

LY2#,3#,RY2#,3#

 1
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-25010

LY2#,3#,RY2#,3#

 1
33773-20020

JY30

 1
33773B - PIN (FOR CROSS SHAFT SUPPORT)
90249-10010

LY2#,3#,RY2#,3#

 1
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-20020

JY30

T/M SIDE

 1
33775-20040

JY30

FRAME SIDE

 1
33775-25020

LY2#,3#,RY2#,3#

 1
33775A - COVER, CROSS SHAFT DUST
33775-25010

LY20,30,RY20,31

 1
33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33776-25030

LY20,30,RY20,31

 1
Common parts
90179-08146
90201-08024
90206-08016
90468-16012
90560-08366
91611-40614
91611-40820
94110-40800
94120-40800
94511-00800
94512-00800
94613-10800
96160-00800
96160-01500

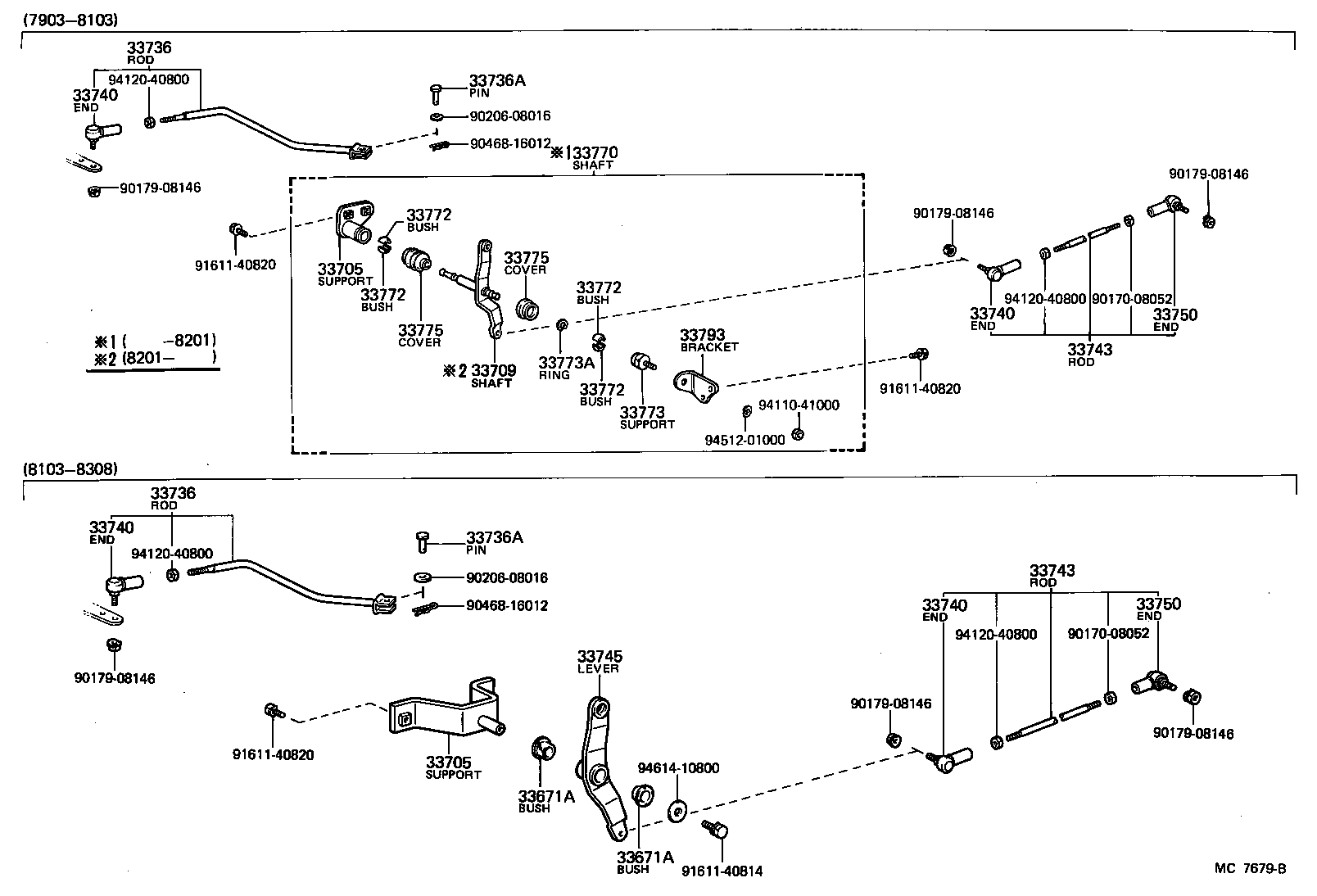

ILLUST NO. 2 OF 2(7903-8308)JY30

Click highlighted areas on diagram

diagram 33671A 33671A 33705 33705 33709 33736 33736 33736A 33736A 33740 33740 33740 33740 33743 33743 33745 33750 33750 33770 33772 33772 33772 33772 33773 33773A 33775 33775 33793 9017008052 9017008052 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9020608016 9020608016 9046816012 9046816012 9161140814 9161140820 9161140820 9161140820 9411041000 9412040800 9412040800 9412040800 9412040800 9451201000 9461410800
Part # Description Qty Price
33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT)
90386-13007

JY30

 2
33671A - BUSH (FOR CONTROL ROD, NO.1 SUPPORT)
90386-13007

JY30

 2
33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)
33607-25040

JY30

 1
33705-25110

JY30

 1
33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)
33607-25040

JY30

 1
33705-25110

JY30

 1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33790-25120

JY30

 1
33790-25080

LY2#,3#,RY2#,3#

 1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33790-25120

JY30

 1
33790-25080

LY2#,3#,RY2#,3#

 1
33736A - PIN, W/HOLE
90240-08040

JY30,LY20,30,RY20,31

 1
33736A - PIN, W/HOLE
90240-08040

JY30,LY20,30,RY20,31

 1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 4
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-25010

LY20,30,RY20,31

 1
33840-25030

JY30;BY3#..TR

 1
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-25010

LY20,30,RY20,31

 1
33840-25030

JY30;BY3#..TR

 1
33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)
33745-25050

LY2#,3#,RY2#,3#

 1
33749-25010

JY30

 1
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 1
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011

JY30;BY3#,LY2#,3#,RY2#,3#..TR

 1
33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
33770-25080

JY30

 1
33770-25040

LY20,30,RY20,31

 1
33770-25041

LY20,30,RY20,31

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

JY30

 4
33772-35011

LY2#,3#,RY2#,3#

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

JY30

 4
33772-35011

LY2#,3#,RY2#,3#

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

JY30

 4
33772-35011

LY2#,3#,RY2#,3#

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-20010

JY30

 4
33772-35011

LY2#,3#,RY2#,3#

 1
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-25010

LY2#,3#,RY2#,3#

 1
33773-20020

JY30

 1
33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

JY30

 1
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-20020

JY30

T/M SIDE

 1
33775-20040

JY30

FRAME SIDE

 1
33775-25020

LY2#,3#,RY2#,3#

 1
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-20020

JY30

T/M SIDE

 1
33775-20040

JY30

FRAME SIDE

 1
33775-25020

LY2#,3#,RY2#,3#

 1
33793 - BRACKET, CROSS SHAFT, NO.2(FOR COLUMN SHIFT)
33793-25010

JY30

 1
Common parts
90170-08052
90179-08146
90206-08016
90468-16012
91611-40814
91611-40820
94110-41000
94120-40800
94512-01000
94614-10800
