JY30-QDBH (1979)
Toyota Toyoace

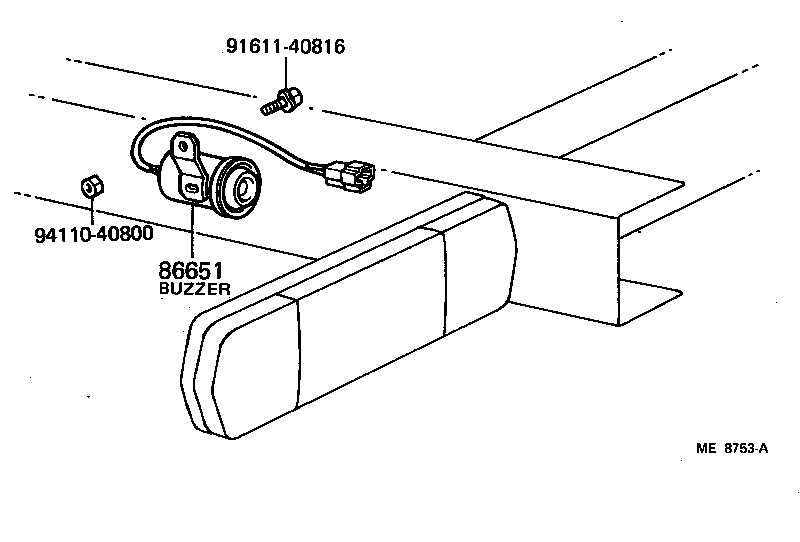

ILLUST NO. 5 OF 5(8003- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91611-40816 | ||||
| 94110-40800 | ||||

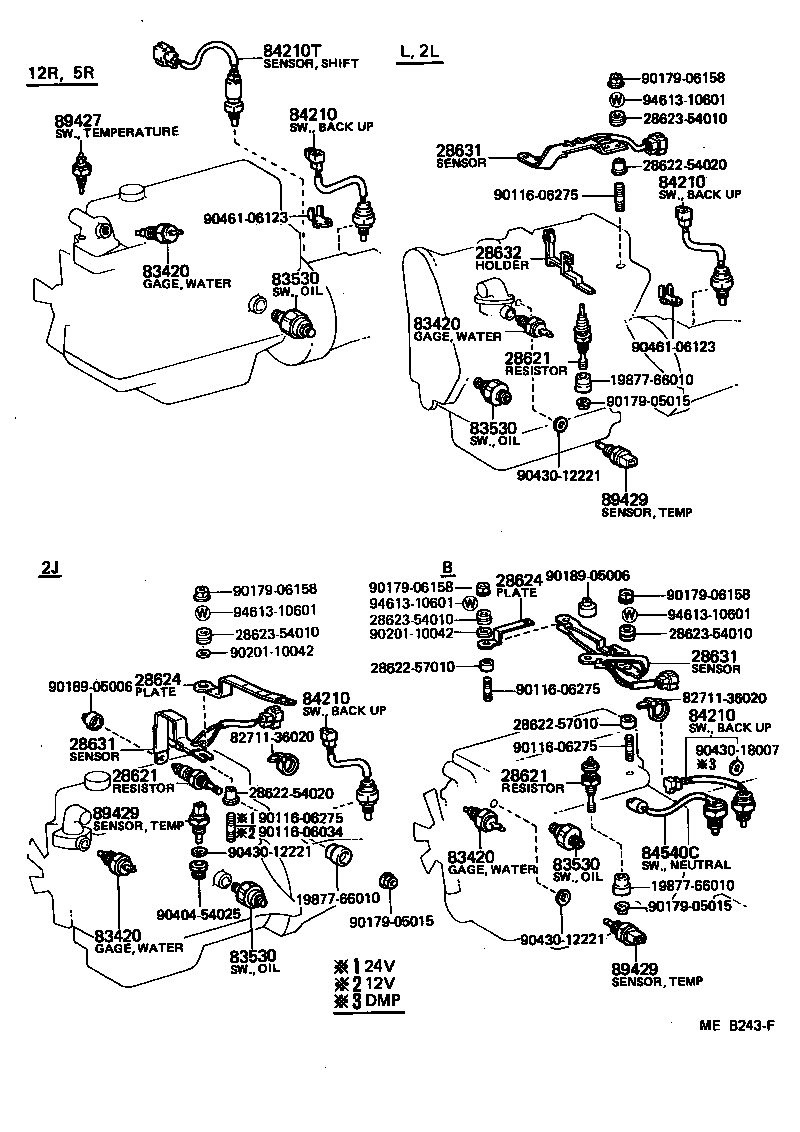

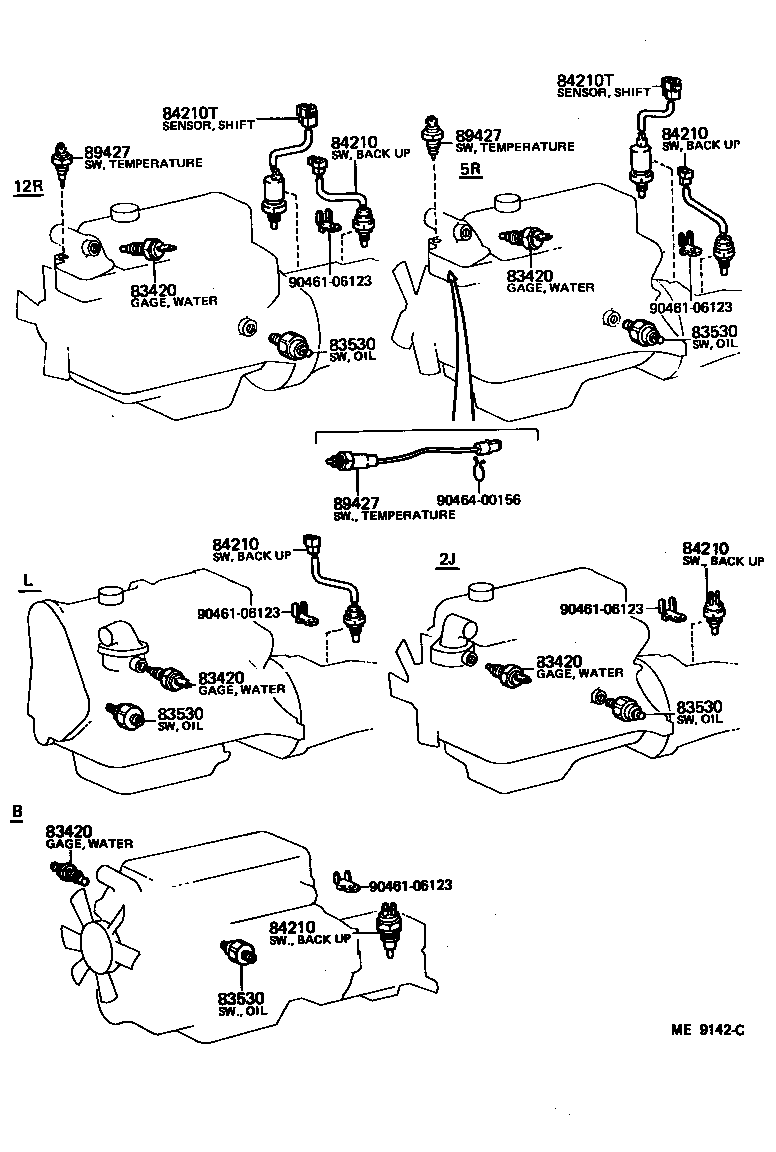

ILLUST NO. 1 OF 5(7903-8201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 90461-06123 | ||||
| 90464-00156 | ||||

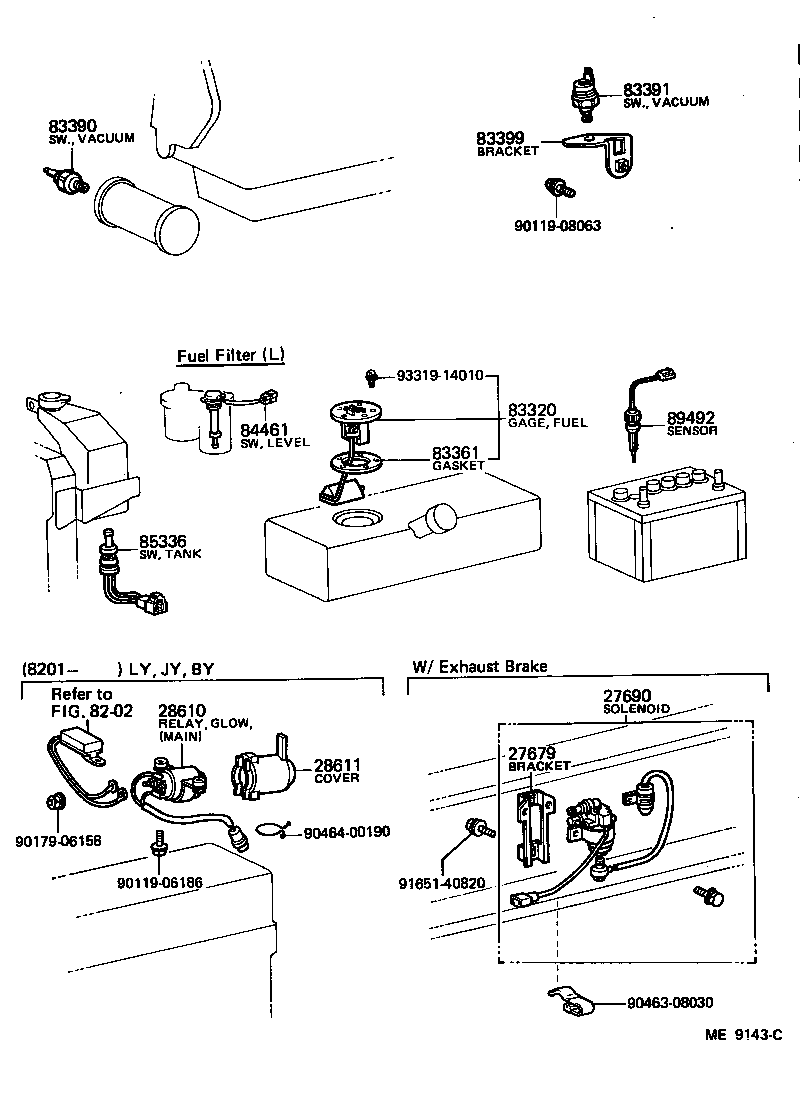

ILLUST NO. 2 OF 5(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-46060 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28610-46050 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28610-46061 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28610-46051 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29016 |
JY30,LY20,30,RY20,31 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-60010 |
JY30,LY20,30 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-30030 |
LY20,30 |
1 | ||
| 84461-30040 |
LY20,30 |
1 | ||
| 85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING | ||||
| 85335-25010 |
BY30,JY30,RY20,31 |
1 | ||
| 85335-25020 |
LY20,30 |
1 | ||
| 89492 - SENSOR, ELECTROLYTE LEVEL | ||||
| 89492-36010 |
BY30,JY30,LY20,30,RY20,31 MARK=56,OD=30 P=2.5 |
1 | ||
| 89492-36030 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT MARK=51 |
1 | ||
| 89492-36020 |
JY30 MARK=63 |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90119-08063 | ||||
| 90179-06158 | ||||
| 90463-08030 | ||||
| 90464-00190 | ||||
| 91651-40820 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 8202 | ||||

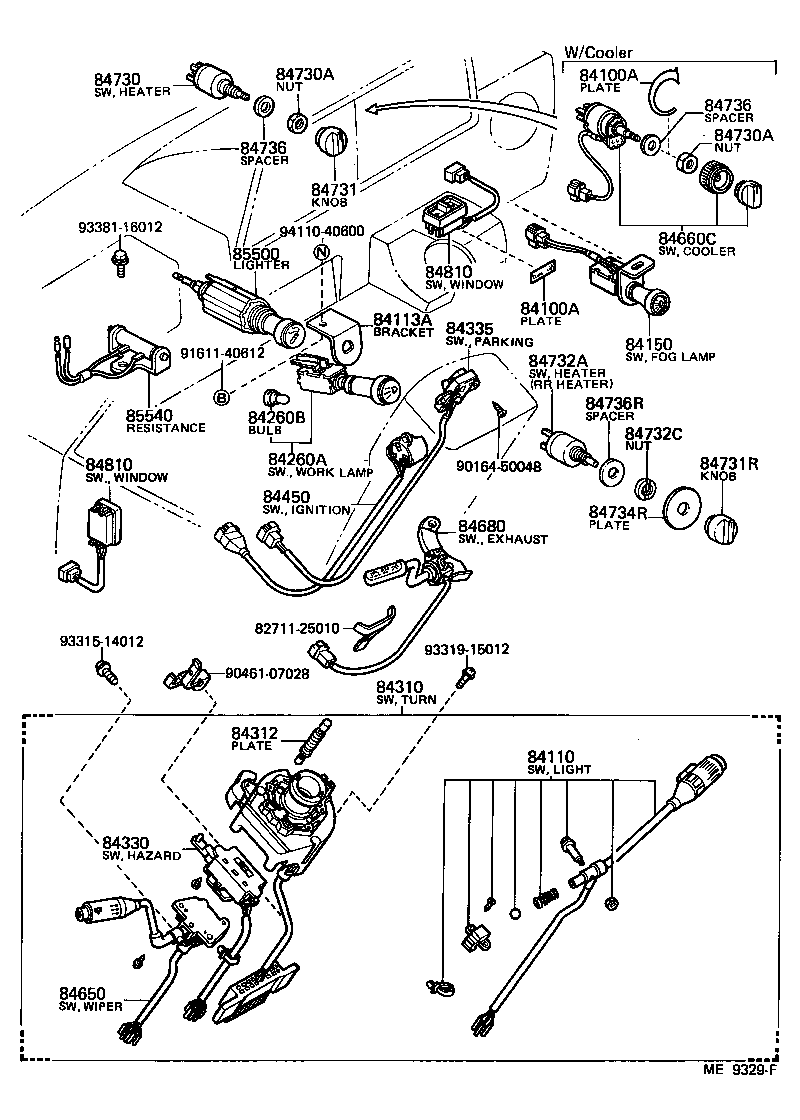

ILLUST NO. 3 OF 5(7903- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84100A - PLATE, SWITCH CAUTION | ||||
| 55681-95010 |
JY30,LY20,30,RY20,31 POWER WINDOW |
1 | ||
| 88891-95010 |
BY30,JY30,LY20,30,RY20,31 COOLER SW |
1 | ||
| 55681-95010 |
BY30,JY30,LY30 POWER WINDOW |
1 | ||
| 84100A - PLATE, SWITCH CAUTION | ||||
| 55681-95010 |
JY30,LY20,30,RY20,31 POWER WINDOW |
1 | ||
| 88891-95010 |
BY30,JY30,LY20,30,RY20,31 COOLER SW |
1 | ||
| 55681-95010 |
BY30,JY30,LY30 POWER WINDOW |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39015 |
JY30,LY20,30,RY20,31 |
1 | ||
| 84112-39016 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 84150 - SWITCH ASSY, FOG LAMP | ||||
| 81213-95010 |
JY30,LY20,30,RY20,31 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-25090 |
JY30,LY20,30,RY20,31 W/*IW |
1 | ||
| 84310-25080 |
JY30,LY20,30,RY20,31..ST |
1 | ||
| 84310-25091 |
BY30,JY30,LY20,30,RY20,31 W/*IW |
1 | ||
| 84310-25081 |
JY30,LY20,30,RY20,31..ST |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29055 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-36040 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84510-36071 |
JY30,LY20,30 |
1 | ||
| 84510-36072 |
BY30,JY30,LY20,30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36011 |
JY30,LY20,30,RY20,31..ST |
1 | ||
| 84652-36020 |
JY30,LY20,30,RY20,31 W/*IW |
1 | ||
| 84652-36021 |
BY30,JY30,LY20,30,RY20,31 W/*IW |
1 | ||
| 84652-36010 |
JY30,LY20,30,RY20,31..ST |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-95010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95400 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84736 - SPACER, HEATER BLOWER SWITCH | ||||
| 90201-11313 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84736 - SPACER, HEATER BLOWER SWITCH | ||||
| 90201-11313 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2203001 |
JY30,LY20,30,RY20,31 BLACK |
2 | ||
| 84810-2203001 |
BY30,JY30,LY30 DOOR,BLACK |
1 | ||
| 84810-95010 |
BY30,JY30,LY30 COLUMN |
1 | ||
| 84810-2203001 |
BY30,JY30,LY30 BLACK |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-2203001 |
JY30,LY20,30,RY20,31 BLACK |
2 | ||
| 84810-2203001 |
BY30,JY30,LY30 DOOR,BLACK |
1 | ||
| 84810-95010 |
BY30,JY30,LY30 COLUMN |
1 | ||
| 84810-2203001 |
BY30,JY30,LY30 BLACK |
2 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-60020 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 85500-95401 |
BY30,JY30,LY20,30 24V |
1 | ||
| 85500-95400 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 85500-20042 |
JY30,LY20,30,RY20,31 |
1 | ||
| 85540 - RESISTANCE ASSY, CIGARETTE LIGHTER | ||||
| 85540-95010 |
JY30,LY20,30 24V |
1 | ||
| Common parts | ||||
| 82711-25010 | ||||
| 90164-50048 | ||||
| 90461-07028 | ||||
| 91611-40612 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93381-16012 | ||||
| 94110-40600 | ||||

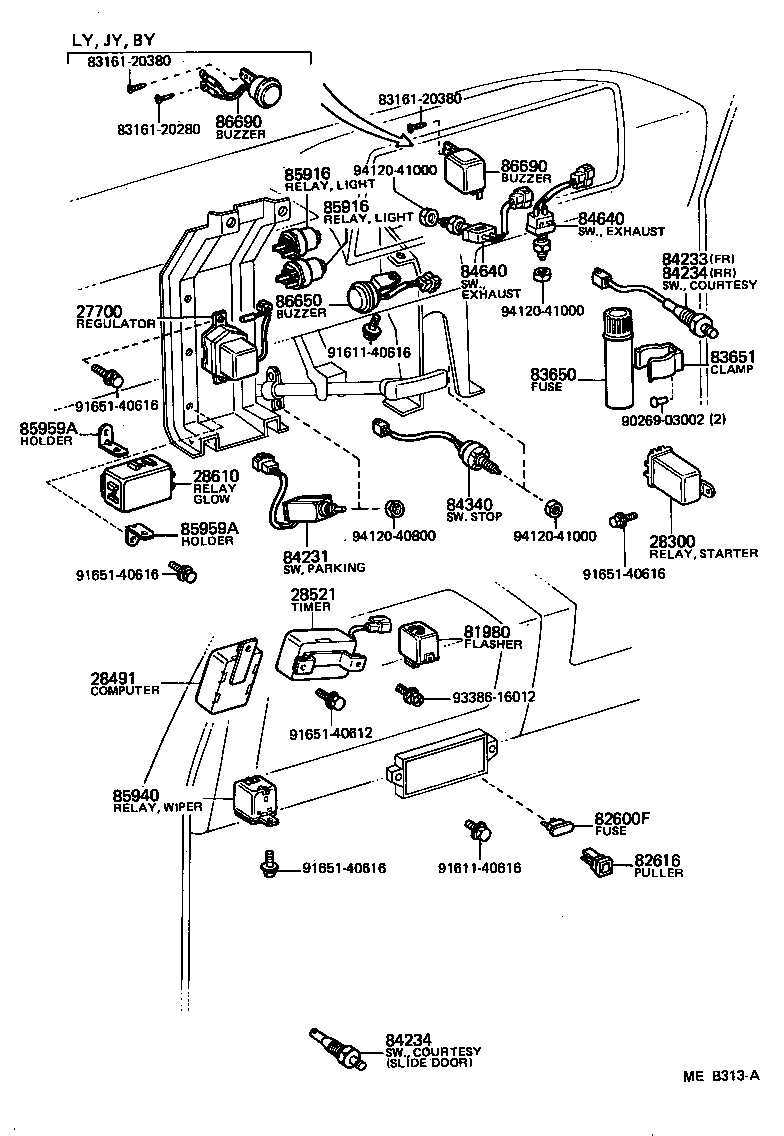

ILLUST NO. 4 OF 5(7903-8201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-57040 |
L..LY30..ST;L..LY30..T2,VP,VPS,VT;B,L,2J..BY30,JY30,LY20 24V |
1 | ||
| 27700-46020 |
L,2J..JY30,LY20,30 24V |
1 | ||
| 27700-31030 |
L,12R,2J,5R..JY30,LY20,30,RY20,31 12V |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56010 |
L..LY30..ST;L..LY30..T2,VP,VPS,VT;B,L,2J..BY30,JY30,LY20 24V |
1 | ||
| 28300-48010 |
L,2J,2L..JY30,LY2#,3# 12V |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54030 |
L,2J..JY30,LY20,30 24V |
1 | ||
| 28521-54020 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28521-54021 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28521-48020 |
B,2J..BY30,JY30 24V |
1 | ||
| 28521-54031 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28521-48010 |
2J..JY30 12V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-46060 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28610-46050 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28610-46061 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28610-46051 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
JY30,LY20,30,RY20,31 12V |
1 | ||
| 81980-36060 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
BY30,JY30,LY20,30,RY20,31 5A |
5 | ||
| 99118-62915 |
BY30,JY30,LY20,30,RY20,31 15A,15A |
6 | ||
| 99118-62910 |
BY30,JY30,LY20,30,RY20,31 10A |
4 | ||
| 90982-09004 |
BY30,JY30,LY30 20A,黄,20A |
1 | ||
| 99118-62920 |
BY30,JY30,LY20,30,RY20,31 20A,20A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 81711-95401 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84380-35010 |
RY2#,3# |
1 | ||
| 84550-25010 |
BY3#,JY30,LY2#,3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
BY30,JY30,LY20,30,RY20,31 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
JY30,LY20,30,RY20,31 12V |
2 | ||
| 90987-01002 |
BY30,JY30,LY20,30 24V |
2 | ||
| 90987-01002 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
JY30,LY20,30,RY20,31 12V |
2 | ||
| 90987-01002 |
BY30,JY30,LY20,30 24V |
2 | ||
| 90987-01002 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36020 |
JY30,LY20,30 24V |
1 | ||
| 85940-36010 |
JY30,LY20,30,RY20,31 12V |
1 | ||
| 85940-36021 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25040 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650-25030 |
JY30,LY2#,3# 12V |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95010 |
RY2#,3# |
1 | ||
| 86650-95012 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650-95011 |
JY30,LY2#,3# 12V |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95010 |
RY2#,3# |
1 | ||
| 86650-95012 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650-95011 |
JY30,LY2#,3# 12V |
1 | ||
| 89590 - COMPUTER ASSY, CONDITION INDICATOR | ||||
| 89590-25010 |
JY30,LY20,30,RY20,31 12V |
1 | ||
| 89590-25020 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| Common parts | ||||
| 83161-20280 | ||||
| 83161-20380 | ||||
| 90219-03002 | ||||
| 91611-40616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
ILLUST NO. 1 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-48010 |
2J..JY30 |
1 | ||
| 28624 - PLATE, CURRENT SENSOR | ||||
| 28624-48010 |
2J..JY30 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-48010 |
2J..JY30 12V |
1 | ||
| 28631-48020 |
2J..JY30 24V |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-48010 |
2J..JY30 12V |
1 | ||
| 28631-48020 |
2J..JY30 24V |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-48010 |
2J..JY30 12V |
1 | ||
| 28631-48020 |
2J..JY30 24V |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
JY30,LY20,30,RY20,31 BLUE,YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14010 |
BY30,JY30 |
1 | ||
| 83530-36011 |
LY20,30,RY20 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
BY30,JY30 |
1 | ||
| 84210-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-36020 | ||||
| 90116-06034 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90404-54025 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 90461-06123 | ||||
| 94613-10601 | ||||
ILLUST NO. 4 OF 5(8201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-57040 |
L..LY30..ST;L..LY30..T2,VP,VPS,VT;B,L,2J..BY30,JY30,LY20 24V |
1 | ||
| 27700-46020 |
L,2J..JY30,LY20,30 24V |
1 | ||
| 27700-31030 |
L,12R,2J,5R..JY30,LY20,30,RY20,31 12V |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-56010 |
L..LY30..ST;L..LY30..T2,VP,VPS,VT;B,L,2J..BY30,JY30,LY20 24V |
1 | ||
| 28300-48010 |
L,2J,2L..JY30,LY2#,3# 12V |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54030 |
L,2J..JY30,LY20,30 24V |
1 | ||
| 28521-54020 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28521-54021 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28521-48020 |
B,2J..BY30,JY30 24V |
1 | ||
| 28521-54031 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28521-48010 |
2J..JY30 12V |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-46060 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28610-46050 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 28610-46061 |
L..LY30..ST;L,2J..JY30,LY20;L..LY30..T2,VP,VPS,VT 24V |
1 | ||
| 28610-46051 |
L,2J..JY30,LY20,30 12V |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
JY30,LY20,30,RY20,31 12V |
1 | ||
| 81980-36060 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
BY30,JY30,LY20,30,RY20,31 5A |
5 | ||
| 99118-62915 |
BY30,JY30,LY20,30,RY20,31 15A,15A |
6 | ||
| 99118-62910 |
BY30,JY30,LY20,30,RY20,31 10A |
4 | ||
| 90982-09004 |
BY30,JY30,LY30 20A,黄,20A |
1 | ||
| 99118-62920 |
BY30,JY30,LY20,30,RY20,31 20A,20A |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 81711-95401 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84380-35010 |
RY2#,3# |
1 | ||
| 84550-25010 |
BY3#,JY30,LY2#,3# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
BY30,JY30,LY20,30,RY20,31 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
JY30,LY20,30,RY20,31 12V |
2 | ||
| 90987-01002 |
BY30,JY30,LY20,30 24V |
2 | ||
| 90987-01002 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01001 |
JY30,LY20,30,RY20,31 12V |
2 | ||
| 90987-01002 |
BY30,JY30,LY20,30 24V |
2 | ||
| 90987-01002 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-36020 |
JY30,LY20,30 24V |
1 | ||
| 85940-36010 |
JY30,LY20,30,RY20,31 12V |
1 | ||
| 85940-36021 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650 - BUZZER ASSY, VACUUM INDICATOR | ||||
| 86650-25040 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650-25030 |
JY30,LY2#,3# 12V |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95010 |
RY2#,3# |
1 | ||
| 86650-95012 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650-95011 |
JY30,LY2#,3# 12V |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-95010 |
RY2#,3# |
1 | ||
| 86650-95012 |
LY30..ST;BY30,JY30,LY20;LY30..T2,VP,VPS,VT 24V |
1 | ||
| 86650-95011 |
JY30,LY2#,3# 12V |
1 | ||
| Common parts | ||||
| 83161-20280 | ||||
| 83161-20380 | ||||
| 90269-03002 | ||||
| 91611-40616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93386-16012 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
