JY30-QDBH (1979)
Toyota Toyoace
ILLUST NO. 1 OF 2(7903- )LY2#,3#,RY2#,3#..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 48046-36090 |
BY31,JY30..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14172 |
LY2#,3#,RY2#,3#..ST 長さ=162,L=162 |
4 | ||
| 90118-16154 |
BY31,JY30..ST 長さ=225,L=225 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 48047-36090 |
BY31,JY30..ST |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY2#,3#,RY2#,3# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY2#,3#,RY2#,3# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY2#,3#,RY2#,3# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY2#,3#,RY2#,3# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY2#,3#,RY2#,3# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY2#,3#,RY2#,3# |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-25010 |
LY20,30,RY20,31..ST |
2 | ||
| 04483-25011 |
LY20,30,RY20,31..ST |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04482-25010 |
LY20,30,RY20,31 |
2 | ||
| 48301 - BRACKET SUB-ASSY, HOLLOW SPRING | ||||
| 48301-25020 |
LY2#,3#,RY2#,3#..ST RH |
1 | ||
| 48309-25010 |
LY2#,3#,RY2#,3#..ST LH |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-29015 |
LY2#,3#,RY2#,3#..ST |
4 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48317-25020 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-25050 |
LY2#,3#,RY2#,3#..ST |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-25060 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 48414-36060 |
BY31,JY30..ST |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-25060 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 48414-36060 |
BY31,JY30..ST |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-25040 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 48416-36080 |
BY31,JY30..ST |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36080 |
BY31,JY30..ST |
1 | ||
| 48417-25040 |
LY20,3#,RY2#,3#..ST |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
BY3#,JY30 |
1 | ||
| 48475-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39285 |
JY30..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
JY30..ST |
2 | ||
| 90948-03007 |
LY20,30,RY20,31 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
LY20,30,RY20,31 |
2 | ||
| 90948-03003 |
BY30,JY30..T1,T3 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39285 |
JY30..ST |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
| 91616-40820 | ||||
| 94110-41000 | ||||
| 94115-41400 | ||||
| 94115-51400 | ||||
| 94511-01000 | ||||
| 94512-01400 | ||||
ILLUST NO. 1 OF 2(7903- )BY31,JY30..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 48046-36090 |
BY31,JY30..ST |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14172 |
LY2#,3#,RY2#,3#..ST 長さ=162,L=162 |
4 | ||
| 90118-16154 |
BY31,JY30..ST 長さ=225,L=225 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-25050 |
LY2#,3#,RY2#,3# |
1 | ||
| 48047-36090 |
BY31,JY30..ST |
1 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48343-36010 |
BY31,JY30..ST |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-36040 |
JY30..ST |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-25060 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 48414-36060 |
BY31,JY30..ST |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-25060 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 48414-36060 |
BY31,JY30..ST |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-25040 |
LY2#,3#,RY2#,3#..ST |
1 | ||
| 48416-36080 |
BY31,JY30..ST |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-36080 |
BY31,JY30..ST |
1 | ||
| 48417-25040 |
LY20,3#,RY2#,3#..ST |
1 | ||
| 48442 - SHACKLE, SPRING, NO.2 | ||||
| 48042-36021 |
BY3#,JY30 |
2 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
BY3#,JY30 |
1 | ||
| 48475-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-36040 |
BY31,JY30..ST |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48516-36020 |
BY31,JY30..ST |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48516-36020 |
BY31,JY30..ST |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39285 |
JY30..ST |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
BY3#,JY30,LY2#,3#,RY2#,3# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
JY30..ST |
2 | ||
| 90948-03007 |
LY20,30,RY20,31 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
LY20,30,RY20,31 |
2 | ||
| 90948-03003 |
BY30,JY30..T1,T3 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BY3#,JY30,LY2#,3#,RY2#,3# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39285 |
JY30..ST |
1 | ||
| 48542 - PIN, SHOCK ABSORBER UPPER PIVOT, REAR | ||||
| 48542-36020 |
BY31,JY30..ST |
2 | ||
| Common parts | ||||
| 90101-14003 | ||||
| 90170-16139 | ||||
| 91611-61020 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94115-41600 | ||||
| 94115-71400 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(7903- )LY2#,3#,RY2#,3#..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25190 |
JY30..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25190 |
JY30..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25190 |
JY30..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25190 |
JY30..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25190 |
JY30..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25190 |
JY30..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25190 |
JY30..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25190 |
JY30..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-25190 |
JY30..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-25190 |
JY30..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-25190 |
JY30..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36200 |
JY30..ST |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36200 |
JY30..ST |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36200 |
BY31,JY30..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36200 |
BY31,JY30..ST |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00814 | ||||

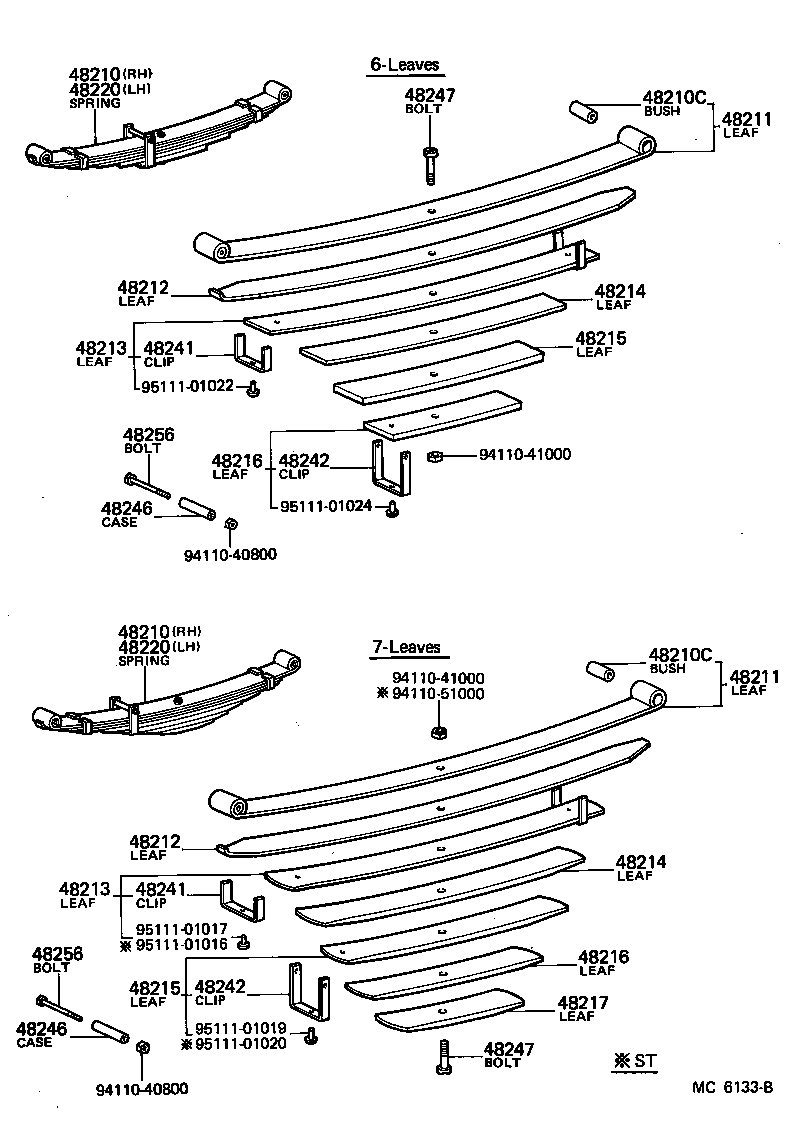

ILLUST NO. 2 OF 2(7903- )JY30..20T ; (7903- )BY3#..T1,T2 ;(7903- )BY31..TB..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BY30,JY30..T1,T3 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16002 |
BY30,JY30..T1,T3 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25190 |
JY30..ST |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25190 |
JY30..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25190 |
JY30..ST |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25190 |
JY30..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25190 |
JY30..ST |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25190 |
JY30..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25190 |
JY30..ST |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25190 |
JY30..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-25190 |
JY30..ST |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-25190 |
JY30..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-25190 |
JY30..ST |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-25190 |
JY30..ST |
2 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-25190 |
JY30..ST |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25190 |
JY30..ST |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36200 |
JY30..ST |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36200 |
JY30..ST |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-36200 |
BY31,JY30..ST |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-36200 |
BY31,JY30..ST |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
JY30;BY3#..T2,VPA |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60010 |
JY30;BY3#..T2,VPA |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36200 |
BY31,JY30..ST |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36200 |
BY31,JY30..ST |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
JY30;BY3#..T2,VPA |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
JY30;BY3#..T2,VPA |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 95111-01016 | ||||
| 95111-01017 | ||||
| 95111-01019 | ||||
| 95111-01020 | ||||
| 95111-01022 | ||||
| 95111-01024 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
