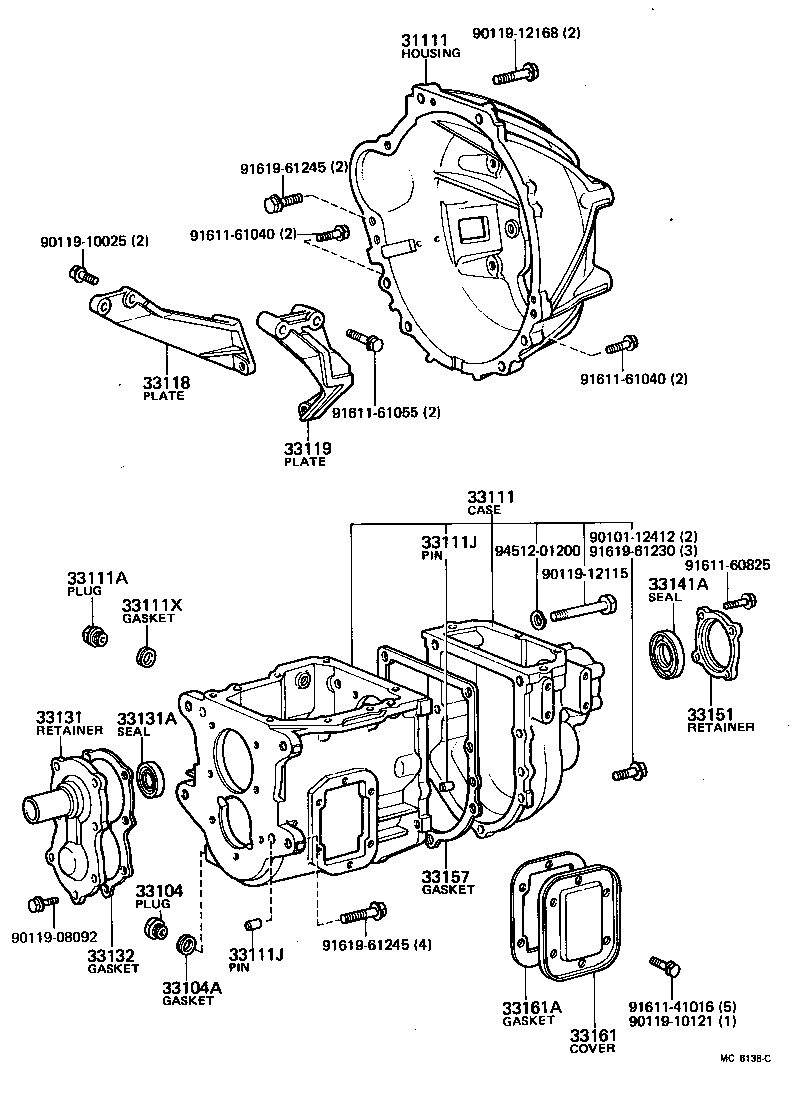

JY30-QDBH (1979)
Toyota Toyoace
(7903- )RY2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25021 |
JY30 |
1 | ||
| 31112-25010 |
LY2#,3# |
1 | ||
| 31111-25020 |
JY30 |
1 | ||
| 31112A - PIN, DOWEL CLUTCH HOUSING | ||||
| 90250-10052 |
LY2#,3#,RY3# |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-25021 |
LY2#,3#,RY2#,3# |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18081 |
LY2#,3#,RY2#,3# |
1 | ||
| 90341-18057 |
BY3#,JY30 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36021 |
JY30 |
1 | ||
| 33111-25050 |
RY2#,3# |
1 | ||
| 33101-36022 |
BY30,JY30 |
1 | ||
| 33111-25060 |
LY2#,3# |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LY2#,3# |
1 | ||
| 33118-25010 |
JY30 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25010 |
JY30 |
1 | ||
| 33119-25020 |
LY2#,3# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36022 |
BY30,JY30 |
1 | ||
| 33131-35011 |
LY2#,3#,RY2#,3# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
JY30;BY3#..TR |
1 | ||
| 90311-28004 |
LY2#,3#,RY2#,3# |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36022 |
JY30;BY3#..TR |
1 | ||
| 33132-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-25020 |
RY2#,3# |
1 | ||
| 33141-25030 |
LY20,30 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-38093 |
LY2#,3#,RY2#,3# |
1 | ||
| 90311-45001 |
BY3#,JY30 |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33142-36020 |
JY30;BY3#..TR |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BY3#,JY30 |
1 | ||
| 33161-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33161A - GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM) | ||||
| 33162-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33162-36020 |
BY3#,JY30 |
1 | ||
| Common parts | ||||
| 90119-08062 | ||||
| 90119-08235 | ||||
| 90119-10025 | ||||
| 90119-10072 | ||||
| 90119-10133 | ||||
| 91611-40812 | ||||
| 91611-60830 | ||||
| 91611-61032 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||
(7903- )LY2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25021 |
JY30 |
1 | ||
| 31112-25010 |
LY2#,3# |
1 | ||
| 31111-25020 |
JY30 |
1 | ||
| 31112A - PIN, DOWEL CLUTCH HOUSING | ||||
| 90250-10052 |
LY2#,3#,RY3# |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-25021 |
LY2#,3#,RY2#,3# |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18081 |
LY2#,3#,RY2#,3# |
1 | ||
| 90341-18057 |
BY3#,JY30 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36021 |
JY30 |
1 | ||
| 33111-25050 |
RY2#,3# |
1 | ||
| 33101-36022 |
BY30,JY30 |
1 | ||
| 33111-25060 |
LY2#,3# |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LY2#,3# |
1 | ||
| 33118-25010 |
JY30 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25010 |
JY30 |
1 | ||
| 33119-25020 |
LY2#,3# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36022 |
BY30,JY30 |
1 | ||
| 33131-35011 |
LY2#,3#,RY2#,3# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
JY30;BY3#..TR |
1 | ||
| 90311-28004 |
LY2#,3#,RY2#,3# |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36022 |
JY30;BY3#..TR |
1 | ||
| 33132-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-25020 |
RY2#,3# |
1 | ||
| 33141-25030 |
LY20,30 |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-38093 |
LY2#,3#,RY2#,3# |
1 | ||
| 90311-45001 |
BY3#,JY30 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36010 |
JY30;BY3#..TR |
1 | ||
| 33151-25010 |
LY20,30 |
1 | ||
| 33151-25011 |
LY20,30 |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33142-36020 |
JY30;BY3#..TR |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BY3#,JY30 |
1 | ||
| 33161-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33161A - GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM) | ||||
| 33162-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33162-36020 |
BY3#,JY30 |
1 | ||
| Common parts | ||||
| 90119-08062 | ||||
| 90119-08235 | ||||
| 90149-80001 | ||||
| 91611-40812 | ||||
| 91611-60825 | ||||
| 91611-60830 | ||||
| 91611-61028 | ||||
| 91611-61032 | ||||
| 91611-61050 | ||||
| 91619-61250 | ||||
| 91619-61260 | ||||
| 91651-61032 | ||||
| 91661-60840 | ||||
| 93220-18020 | ||||
(7903-8308)JY30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-25021 |
JY30 |
1 | ||
| 31112-25010 |
LY2#,3# |
1 | ||
| 31111-25020 |
JY30 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18081 |
LY2#,3#,RY2#,3# |
1 | ||
| 90341-18057 |
BY3#,JY30 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-36021 |
JY30 |
1 | ||
| 33111-25050 |
RY2#,3# |
1 | ||
| 33101-36022 |
BY30,JY30 |
1 | ||
| 33111-25060 |
LY2#,3# |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LY2#,3# |
1 | ||
| 33118-25010 |
JY30 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-25010 |
JY30 |
1 | ||
| 33119-25020 |
LY2#,3# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36022 |
BY30,JY30 |
1 | ||
| 33131-35011 |
LY2#,3#,RY2#,3# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
JY30;BY3#..TR |
1 | ||
| 90311-28004 |
LY2#,3#,RY2#,3# |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-36022 |
JY30;BY3#..TR |
1 | ||
| 33132-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-38093 |
LY2#,3#,RY2#,3# |
1 | ||
| 90311-45001 |
BY3#,JY30 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36010 |
JY30;BY3#..TR |
1 | ||
| 33151-25010 |
LY20,30 |
1 | ||
| 33151-25011 |
LY20,30 |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33142-36020 |
JY30;BY3#..TR |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BY3#,JY30 |
1 | ||
| 33161-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33161A - GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM) | ||||
| 33162-36020 |
BY3#,JY30 |
1 | ||
| 33162-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-08092 | ||||
| 90119-10025 | ||||
| 90119-10121 | ||||
| 90119-12115 | ||||
| 90119-12168 | ||||
| 91611-41016 | ||||
| 91611-60825 | ||||
| 91611-61040 | ||||
| 91611-61055 | ||||
| 91619-61230 | ||||
| 91619-61245 | ||||
| 94512-01200 | ||||
