JY30-QDBH (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

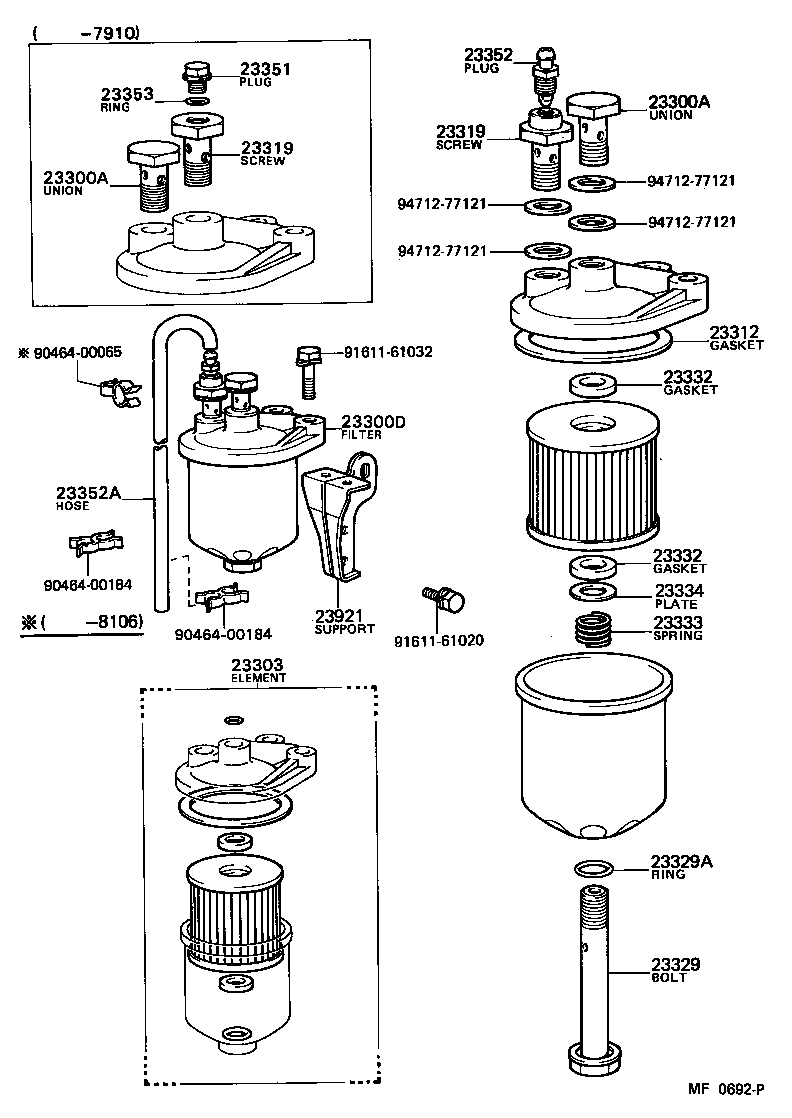

ILLUST NO. 1 OF 2(7903-8308)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
2J..JY30 |
1 | ||
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
2J..JY30 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-48013 |
2J..JY30 |
1 | ||
| 23300-48014 |
2J..JY30 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 04234-48012 |
2J..JY30 |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-48012 |
2J..JY30 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-46010 |
2J..JY30 |
1 | ||
| 23319-48010 |
2J..JY30 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-46010 |
2J..JY30 |
1 | ||
| 23319-48010 |
2J..JY30 |
1 | ||
| 23329 - BOLT, FUEL FILTER CENTER | ||||
| 23304-48012 |
2J..JY30 |
1 | ||
| 23329A - RING, O(FOR FUEL FILTER CENTER BOLT) | ||||
| 23344-46010 |
2J..JY30 |
1 | ||
| 23344-68010 |
2J..JY30 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-48012 |
2J..JY30 |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-48012 |
2J..JY30 |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
2J..JY30 |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-48012 |
2J..JY30 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-46010 |
2J..JY30 |
1 | ||
| 23352 - PLUG, BLEEDER | ||||
| 47547-12030 |
2J..JY30 |
1 | ||
| 23352A - HOSE(FOR BLEEDER PLUG) | ||||
| 90446-08009 |
2J..JY30 |
1 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-46010 |
2J..JY30 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-48010 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 90464-00065 | ||||
| 90464-00184 | ||||
| 91611-61020 | ||||
| 91611-61032 | ||||
| 94712-77121 | ||||

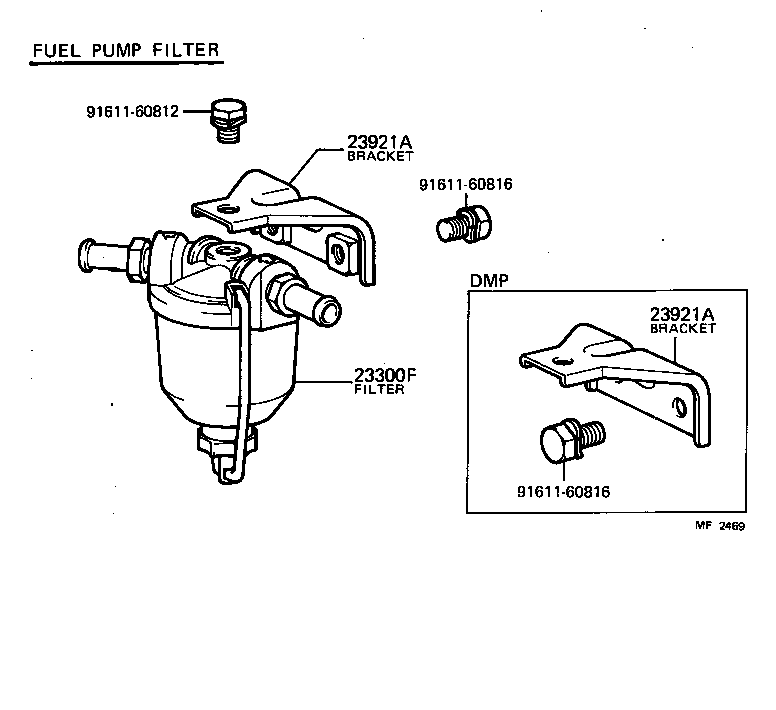

ILLUST NO. 2 OF 2(7903-8308)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300F - FILTER ASSY, FEED PUMP | ||||
| 23310-48010 |
2J..JY30 |
1 | ||
| 23921A - BRACKET, FEED PUMP FILTER | ||||
| 23263-48010 |
2J..JY30..20T |
1 | ||
| 23921A - BRACKET, FEED PUMP FILTER | ||||
| 23263-48010 |
2J..JY30..20T |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
(8009-8308)B
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300A - UNION, NIPPLE(FOR FUEL FILTER INLET) | ||||
| 90401-14060 |
2J..JY30 |
1 | ||
| 23300D - FILTER ASSY, FUEL(FOR DIESEL) | ||||
| 23300-48013 |
2J..JY30 |
1 | ||
| 23300-48014 |
2J..JY30 |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 04234-48012 |
2J..JY30 |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-48012 |
2J..JY30 |
1 | ||
| 23319 - SCREW, FUEL PIPE FOLLOW | ||||
| 23319-46010 |
2J..JY30 |
1 | ||
| 23319-48010 |
2J..JY30 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-46010 |
2J..JY30 |
1 | ||
| 23351 - PLUG, AIR VENT | ||||
| 23351-46010 |
2J..JY30 |
1 | ||
| 23353 - RING, O(FOR AIR VENT PLUG) | ||||
| 23353-46010 |
2J..JY30 |
1 | ||
| Common parts | ||||
| 91611-61045 | ||||
| 94712-77121 | ||||
