BY31V-QDEHT3 (1983)
Toyota Toyoace
Production
Aug 1983
-
Jul 1985
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

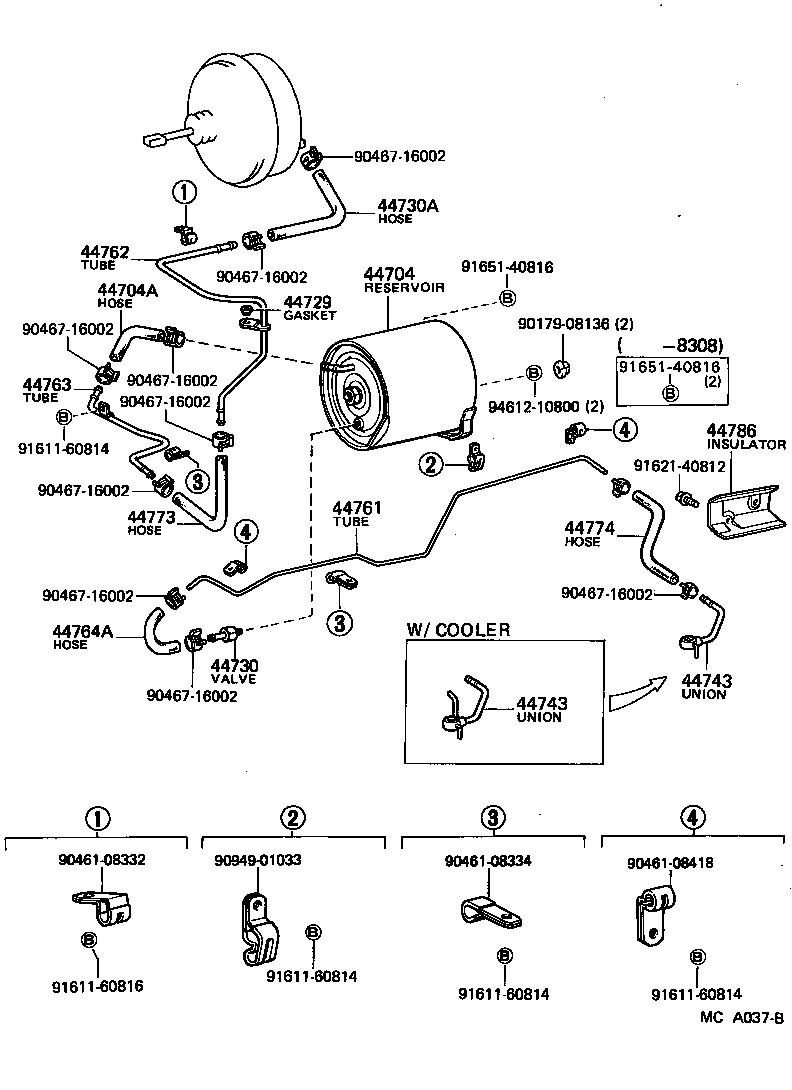

ILLUST NO. 2 OF 2(8308- )LY21,31
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-25041 |
BY31,LY2#,31 |
1 | ||
| 44704A - HOSE(FOR VACUUM RESERVOIR) | ||||
| 44774-26030 |
BY31,LY2#,31 |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-25010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
BY3#,JY30,LY2#,3# |
1 | ||
| 44730-20060 |
RY2#,3# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44776-25010 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44764-25040 |
RY2#,3# |
1 | ||
| 44764-25080 |
LY2#,31 |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44762-25030 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-25020 |
BY31,LY2#,31 |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 90445-17927 |
RY2#,3# |
1 | ||
| 44774-26030 |
BY31,LY2#,31 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 90445-17927 |
BY31,LY2#,31 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 95441-09300 |
BY31 |
1 | ||
| 44774-25021 |
LY2#,3# |
1 | ||
| Common parts | ||||
| 90179-08136 | ||||
| 90461-08332 | ||||
| 90461-08334 | ||||
| 90461-08418 | ||||
| 90467-16002 | ||||
| 90949-01033 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91621-40812 | ||||
| 91651-40816 | ||||
| 94612-10800 | ||||
