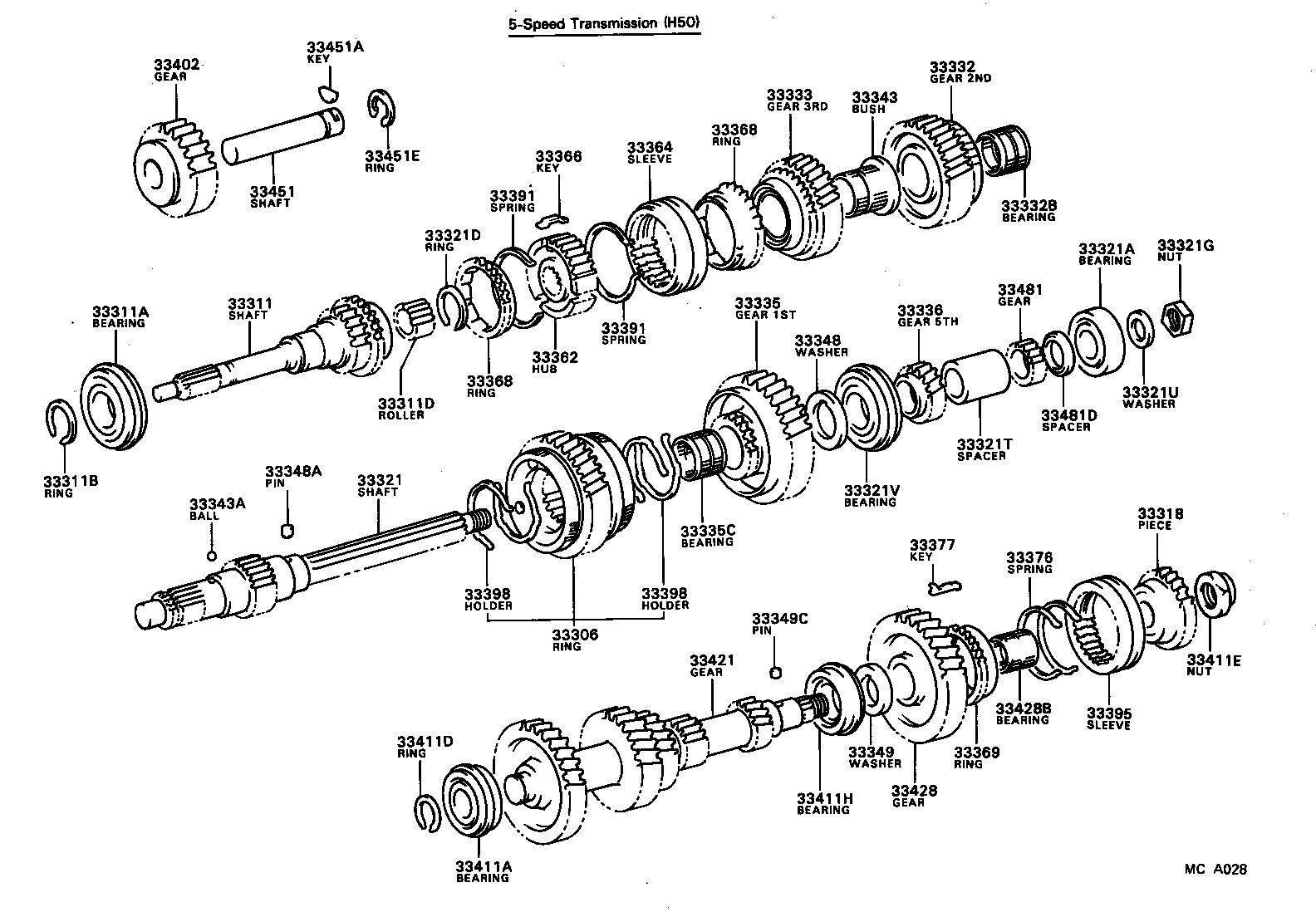

BY31D-QDHT3 (1983)
Toyota Toyoace
(8308- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1 | ||||
| 33306-36020 |
BY31..DMP |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-25010 |
RY2#,3# |
1 | ||
| 33311-25020 |
LY2#,3# |
1 | ||
| 33311-36032 |
BY31..DMP |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-30002 |
LY2#,3# |
1 | ||
| 97163-06306 |
RY2#,3# |
1 | ||
| 90365-40002 |
BY31..DMP |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-28040 |
LY2#,3#,RY2#,3# T=2.3 |
1 | ||
| 90520-36015 |
BY31..DMP 厚さ=3.31−3.42,T=3.31 |
1 | ||
| 90520-28041 |
LY2#,3#,RY2#,3# T=2.4 |
1 | ||
| 90520-36016 |
BY31..DMP 厚さ=3.20−3.31,T=3.20 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
BY3#,JY30 |
16 | ||
| 90361-06047 |
LY2#,3#,RY2#,3# |
14 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-36012 |
BY31..DMP |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36060 |
BY31..DMP |
1 | ||
| 33321-25030 |
LY2#,3# |
1 | ||
| 33321-25020 |
RY2#,3# |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-35021 |
RY2#,3# |
1 | ||
| 97103-06207 |
BY31..DMP |
1 | ||
| 90363-30039 |
LY2#,31 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30216 |
LY2#,3#,RY2#,3# 厚さ=2.15,ﾏｰｸ 2,T=2.15 |
1 | ||
| 90520-30238 |
LY2#,3#,RY2#,3# T=2.00 |
1 | ||
| 90520-30218 |
LY2#,3#,RY2#,3# 厚さ=2.25,ﾏｰｸ 4,T=2.25 |
1 | ||
| 90520-30217 |
LY2#,3#,RY2#,3# 厚さ=2.20,ﾏｰｸ 3,T=2.20 |
1 | ||
| 90520-30215 |
LY2#,3#,RY2#,3# 厚さ=2.10,ﾏｰｸ 1,T=2.10 |
1 | ||
| 90520-36255 |
BY3#,JY30 厚さ=2.65−2.70,T=2.65 |
1 | ||
| 90520-30214 |
LY2#,3#,RY2#,3# 厚さ=2.05,ﾏｰｸ 0,T=2.05 |
1 | ||
| 90520-36252 |
BY3#,JY30 厚さ=2.50−2.55,T=2.50 |
1 | ||
| 90520-36250 |
BY3#,JY30 厚さ=2.40−2.45,T=2.40 |
1 | ||
| 90520-36253 |
BY3#,JY30 厚さ=2.55−2.60,T=2.55 |
1 | ||
| 90520-36254 |
BY3#,JY30 厚さ=2.60−2.65,T=2.60 |
1 | ||
| 90520-36251 |
BY3#,JY30 厚さ=2.45−2.50,T=2.45 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-22005 |
BY31..DMP |
1 | ||
| 90179-20061 |
JY30,LY20,30,RY20,31 |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-35006 |
BY31..DMP |
1 | ||
| 90561-32002 |
LY2#,3# |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20329 |
LY2#,3#,RY2#,3# |
1 | ||
| 90201-22005 |
BY31..DMP |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-40018 |
BY31..DMP |
1 | ||
| 90363-35011 |
LY2#,31 |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33332-36012 |
BY31..DMP |
1 | ||
| 33332-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-45001 |
LY2#,3#,RY2#,3# |
1 | ||
| 90364-44065 |
BY31..DMP |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-25010 |
RY2#,3# |
1 | ||
| 33333-25020 |
LY2#,3# |
1 | ||
| 33333-36013 |
BY31..DMP |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
BY31..DMP |
1 | ||
| 33335-25010 |
RY2#,3# |
1 | ||
| 33335-25020 |
LY2#,3# |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44065 |
BY31..DMP |
1 | ||
| 90364-45001 |
LY2#,3#,RY2#,3# |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-25010 |
LY2#,3# |
1 | ||
| 33336-36050 |
BY31..DMP |
1 | ||
| 33343 - BUSH, 3RD & 2ND GEAR | ||||
| 33343-36020 |
BY31..DMP |
1 | ||
| 33343A - PIN OR BALL (FOR 3RD & 2ND GEAR BUSH) | ||||
| 90360-06004 |
BY31..DMP |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-36012 |
BY31..DMP |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05202 |
BY31..DMP |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33346-36010 |
BY31..DMP |
1 | ||
| 33349C - PIN (FOR 5TH GEAR THRUST WASHER) | ||||
| 90250-06009 |
BY31..DMP |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
BY3#,JY30 |
1 | ||
| 33362-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
BY3#,JY30 |
1 | ||
| 33364-25011 |
LY2#,3#,RY2#,3# |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36020 |
BY3#,JY30 |
3 | ||
| 33366-25011 |
LY2#,3#,RY2#,3# |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BY3#,JY30 |
2 | ||
| 33367-14010 |
LY2#,3#,RY2#,3# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BY3#,JY30 |
2 | ||
| 33367-14010 |
LY2#,3#,RY2#,3# |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
BY31..DMP |
1 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
BY31..DMP |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-36011 |
BY31..DMP |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BY3#,JY30 |
2 | ||
| 33391-25020 |
LY2#,3#,RY2#,3# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BY3#,JY30 |
2 | ||
| 33391-25020 |
LY2#,3#,RY2#,3# |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-36010 |
BY31..DMP |
1 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36012 |
BY31..DMP |
4 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36012 |
BY31..DMP |
4 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36050 |
BY31..DMP |
1 | ||
| 33402-25020 |
LY2#,3#,RY2#,3# |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25001 |
LY2#,3# |
1 | ||
| 97153-06305 |
RY2#,3# |
1 | ||
| 90365-32002 |
BY31..DMP |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-23090 |
LY2#,3#,RY2#,3# 厚さ=2.20−2.25,T=2.20 |
1 | ||
| 90520-23145 |
LY2#,3#,RY2#,3# 厚さ=2.30−2.35,T=2.35 |
1 | ||
| 90520-23147 |
LY2#,3#,RY2#,3# 厚さ=2.40−2.45,T=2.45 |
1 | ||
| 90520-30214 |
BY31..DMP 厚さ=2.05,ﾏｰｸ 0,T=2.05 |
1 | ||
| 90520-30218 |
BY31..DMP 厚さ=2.25,ﾏｰｸ 4,T=2.25 |
1 | ||
| 90520-30216 |
BY31..DMP 厚さ=2.15,ﾏｰｸ 2,T=2.15 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-33001 |
RY2#,3# |
1 | ||
| 90365-40001 |
BY31..DMP |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-25011 |
RY2#,3# |
1 | ||
| 33421-25021 |
LY2#,3# |
1 | ||
| 33421-36050 |
BY31..DMP |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-36021 |
BY31..DMP |
1 | ||
| 33428-25010 |
LY2#,3# |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-36003 |
LY2#,3# |
1 | ||
| 90364-32007 |
BY31..DMP |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33451-36022 |
BY31..DMP |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03015 |
BY31..DMP |
1 | ||
| 90280-03005 |
LY2#,3#,RY2#,3# |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-27001 |
BY31..DMP |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-25030 |
LY2#,31,RY32 N=6 |
1 | ||
| 33481-36110 |
BY31..DMP N=4 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36050 |
BY31..DMP |
1 | ||
| 90560-30002 |
RY2#,3# RR |
1 | ||
| 90561-30001 |
RY2#,3# FR |
1 | ||
| 90560-30004 |
LY2#,31 |
1 | ||
