BY31D-QDHT3 (1983)
Toyota Toyoace

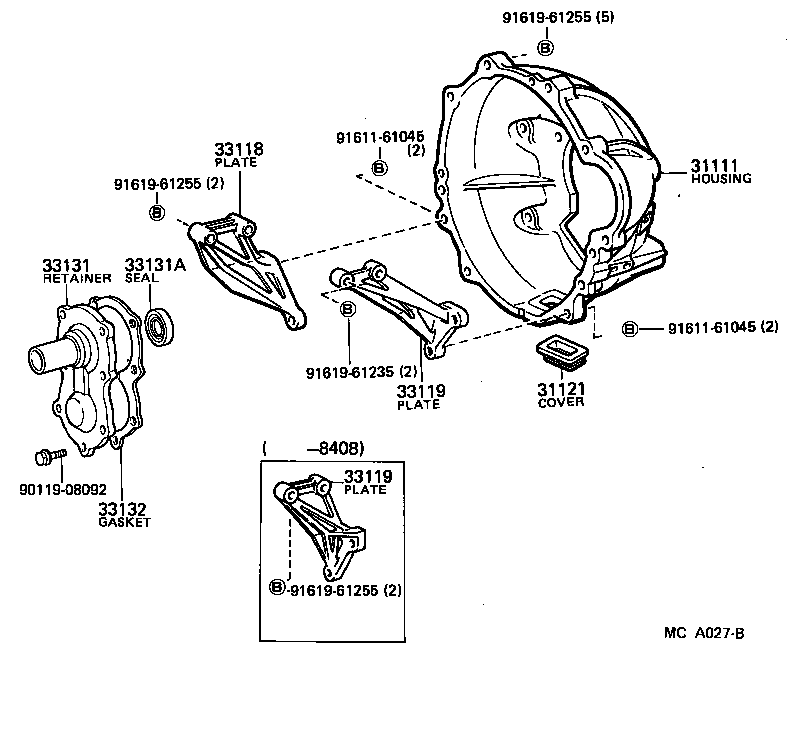

ILLUST NO. 1 OF 2(8308- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31112-25010 |
LY2#,3# |
1 | ||
| 31111-36170 |
BY31 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-25021 |
LY2#,3#,RY2#,3# |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LY2#,3# |
1 | ||
| 33118-36020 |
BY31 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36020 |
BY31 |
1 | ||
| 33119-25020 |
LY2#,3# |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36020 |
BY31 |
1 | ||
| 33119-25020 |
LY2#,3# |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-36011 |
BY31..DMP |
1 | ||
| 33131-35011 |
LY2#,3#,RY2#,3# |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-28004 |
LY2#,3#,RY2#,3# |
1 | ||
| 90311-28004 |
BY31..DMP |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33132-36010 |
BY31..DMP |
1 | ||
| Common parts | ||||
| 90119-08092 | ||||
| 91611-61045 | ||||
| 91619-61235 | ||||
| 91619-61255 | ||||

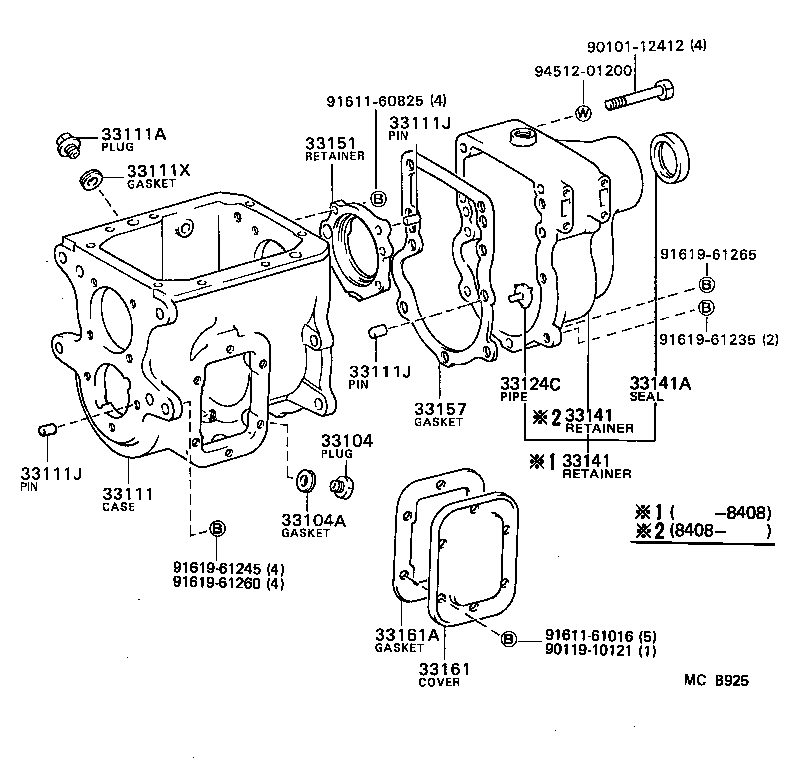

ILLUST NO. 2 OF 2(8308- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18081 |
LY2#,3#,RY2#,3# |
1 | ||
| 90341-18057 |
BY3#,JY30 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BY31,LY2#,31,RY21,32 |
1 | ||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-25050 |
RY2#,3# |
1 | ||
| 33111-36080 |
BY31..DMP |
1 | ||
| 33111-25060 |
LY2#,3# |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BY31..DMP |
1 | ||
| 90341-18002 |
BY30,JY30,LY20,30,RY2#,3# |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 90250-10214 |
BY31..DMP 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 90250-10214 |
BY31..DMP 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BY3#,JY30 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 90250-10214 |
LY2#,3#,RY2#,3# 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 90250-12216 |
BY3#,JY30 長さ=14,外径=12,L=14,D=12 |
2 | ||
| 90250-10214 |
BY31..DMP 長さ=14,外径=10,L=14,D=10 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
BY31,LY2#,31,RY21,32 |
1 | ||
| 12157-10010 |
BY30,JY30,LY20,30,RY20,31 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36010 |
BY31..DMP RR |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-25020 |
RY2#,3# |
1 | ||
| 33141-25031 |
LY2#,31 |
1 | ||
| 33103-36011 |
BY31..DMP |
1 | ||
| 33141-36090 |
BY31..DMP |
1 | ||
| 33141 - RETAINER, TRANSMISSION BEARING, REAR | ||||
| 33141-25020 |
RY2#,3# |
1 | ||
| 33141-25031 |
LY2#,31 |
1 | ||
| 33103-36011 |
BY31..DMP |
1 | ||
| 33141-36090 |
BY31..DMP |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-38093 |
LY2#,3#,RY2#,3# |
1 | ||
| 90311-45001 |
BY3#,JY30 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-36030 |
BY31..DMP |
1 | ||
| 33151-25012 |
LY2#,31 |
1 | ||
| 33157 - GASKET, TRANSMISSION CASE, NO.2 | ||||
| 33142-36030 |
BY31..DMP |
1 | ||
| 33142-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BY3#,JY30 |
1 | ||
| 33161-36010 |
BY31..DMP |
1 | ||
| 33161-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| 33161A - GASKET, TRANSMISSION POWER TAKE-OFF COVER(MTM) | ||||
| 33162-36020 |
BY3#,JY30 |
1 | ||
| 33162-36020 |
BY31..DMP |
1 | ||
| 33162-25010 |
LY2#,3#,RY2#,3# |
1 | ||
| Common parts | ||||
| 90101-12412 | ||||
| 90119-10121 | ||||
| 91611-60825 | ||||
| 91611-61016 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61260 | ||||
| 91619-61265 | ||||
| 94512-01200 | ||||
