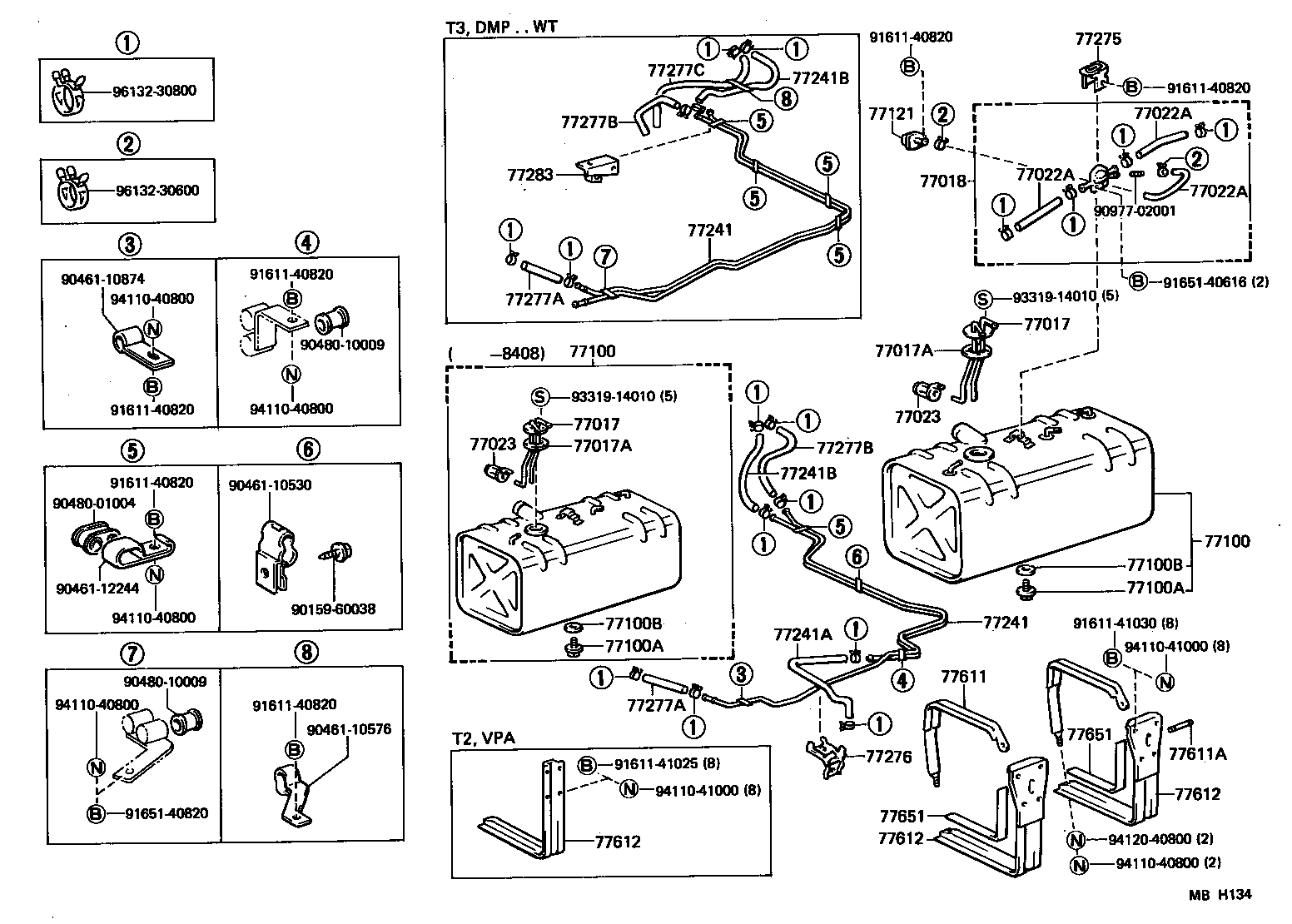

BY31-QDGHT3 (1983)
Toyota Toyoace
(8308- )BY31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-25020 |
LY2#,31 |
1 | ||
| 77017-36030 |
BY31..(DMP,T3,VPA)..WT |
1 | ||
| 77017-36020 |
BY31..T2 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-25020 |
LY2#,31 |
1 | ||
| 77017-36030 |
BY31..(DMP,T3,VPA)..WT |
1 | ||
| 77017-36020 |
BY31..T2 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY2#,31,RY21,32 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LY2#,31,RY21,32 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36071 |
BY31 |
1 | ||
| 77018-36051 |
RY2#,3# |
1 | ||
| 77018-25080 |
LY2#,3# |
1 | ||
| 77018-36130 |
BY31..(DMP,T3,VPA)..WT |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-08030 |
BY31 *H,L=280,内径=7.6 |
2 | ||
| 77259-36010 |
BY31..(DMP,T3,VPA)..WT 長さ=270 |
1 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-08030 |
BY31 *H,L=280,内径=7.6 |
2 | ||
| 77259-36010 |
BY31..(DMP,T3,VPA)..WT 長さ=270 |
1 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08020 |
JY30,LY2#,3#,RY2#,3# *H,L=170,内径=7.6 |
2 | ||
| 95332-08030 |
BY31 *H,L=280,内径=7.6 |
2 | ||
| 77259-36010 |
BY31..(DMP,T3,VPA)..WT 長さ=270 |
1 | ||
| 95332-06030 |
LY2#,3# *H,L=260 |
1 | ||
| 95332-06040 |
BY3#,JY30,RY2#,3# *H,L=340 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LY2#,31 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LY2#,31 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25190 |
LY2#,31 60L |
1 | ||
| 77001-36730 |
BY31..(DMP,T3,VPA)..WT |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-25130 |
RY2#,3# |
1 | ||
| 77001-25190 |
LY2#,31 60L |
1 | ||
| 77001-36730 |
BY31..(DMP,T3,VPA)..WT |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BY3#,JY30,LY2#,3#,RY2#,3# |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77258-36010 |
RY2#,3# |
1 | ||
| 77243-36010 |
BY3#,JY30,LY2#,3# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-36050 |
BY31..T2,VPA |
1 | ||
| 77205-36070 |
BY31..(DMP,T3)..WT |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77205-36050 |
BY31..T2,VPA |
1 | ||
| 77205-36070 |
BY31..(DMP,T3)..WT |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RY20,31 *H,L=180 |
1 | ||
| 95332-08030 |
BY31..T2 *H,L=280,内径=7.6 |
1 | ||
| 95332-08060 |
LY2#,31 *H,L=420,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RY2#,3# *H,L=130 |
1 | ||
| 95332-08020 |
LY2#,3# *H,L=120,内径=7.6 |
1 | ||
| 95332-08060 |
BY31..(DMP,T3)..WT *H,L=600,内径=7.6 |
1 | ||
| 95332-08030 |
BY31..T2 *H,L=280,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RY2#,3# *H,L=130 |
1 | ||
| 95332-08020 |
LY2#,3# *H,L=120,内径=7.6 |
1 | ||
| 95332-08060 |
BY31..(DMP,T3)..WT *H,L=600,内径=7.6 |
1 | ||
| 95332-08030 |
BY31..T2 *H,L=280,内径=7.6 |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 77197-36010 |
JY30,LY2#,3#,RY2#,3#..DMP,T3 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-36010 |
BY31..T2,VPA |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
BY31 *H,L=150 |
1 | ||
| 95332-06020 |
BY31 *H,L=170 |
1 | ||
| 95332-06030 |
LY2#,3# *H,L=280 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06020 |
BY31 *H,L=150 |
1 | ||
| 95332-06020 |
BY31 *H,L=170 |
1 | ||
| 95332-06030 |
LY2#,3# *H,L=280 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
BY31..T2 *H,L=280,内径=7.6 |
1 | ||
| 95332-06020 |
LY2#,3# *H,L=120 |
1 | ||
| 95332-08030 |
BY31..(DMP,T3)..WT *H,L=260,内径=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
BY31..T2 *H,L=280,内径=7.6 |
1 | ||
| 95332-06020 |
LY2#,3# *H,L=120 |
1 | ||
| 95332-08030 |
BY31..(DMP,T3)..WT *H,L=260,内径=7.6 |
1 | ||
| 77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1) | ||||
| 95332-08080 |
BY31..(DMP,T3)..WT *H,L=700,内径=7.6 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36030 |
BY31..(DMP,T3)..WT |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
JY30,LY2#,3#,RY2#,3# |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
JY30,LY2#,3#,RY2#,3# |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-25010 |
JY30,LY20,30,RY20,31 RR |
1 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
JY30,LY20,30,RY20,31 |
2 | ||
| Common parts | ||||
| 90159-60038 | ||||
| 90461-10530 | ||||
| 90461-10576 | ||||
| 90461-10874 | ||||
| 90461-12244 | ||||
| 90480-01004 | ||||
| 90480-10009 | ||||
| 90977-02001 | ||||
| 91611-40820 | ||||
| 91611-41025 | ||||
| 91611-41030 | ||||
| 91651-40616 | ||||
| 91651-40820 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
