BY30-QDGHT3 (1982)

Toyota Toyoace

Production Jan 1982 - Aug 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8201- )BY3#

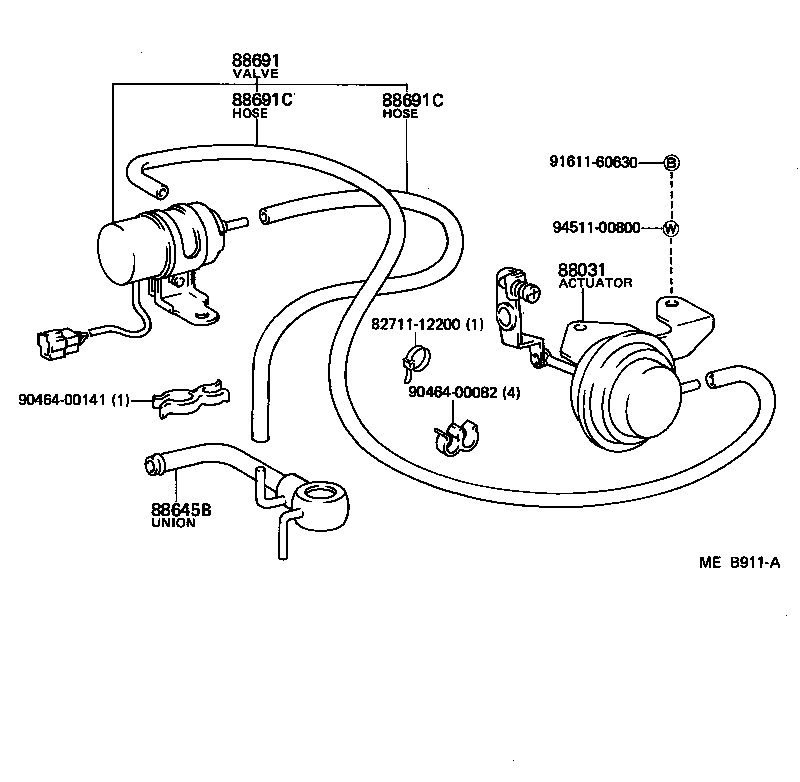

Click highlighted areas on diagram

diagram 8271112200 88031 88645B 88691 88691C 88691C 9046400082 9046400141 9161160630 9451100800
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-36030

BY30

 1
88031-30060

LY20,30

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90405-09012

LY20,30

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95002

LY20,30

12V

 1
88690-95016

BY30

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

BY30

*H,L=450,ﾏｰｸ=#0

 1
95411-19995

BY30

*H,L=750,ﾏｰｸ=#*

 1
95411-19960

LY2#,3#

*H,L=500,ﾏｰｸ=#*,L=500

 1
90445-08163

LY2#,3#

L=1200

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

BY30

*H,L=450,ﾏｰｸ=#0

 1
95411-19995

BY30

*H,L=750,ﾏｰｸ=#*

 1
95411-19960

LY2#,3#

*H,L=500,ﾏｰｸ=#*,L=500

 1
90445-08163

LY2#,3#

L=1200

 1
Common parts
82711-12200
90464-00082
90464-00141
91611-60630
94511-00800
