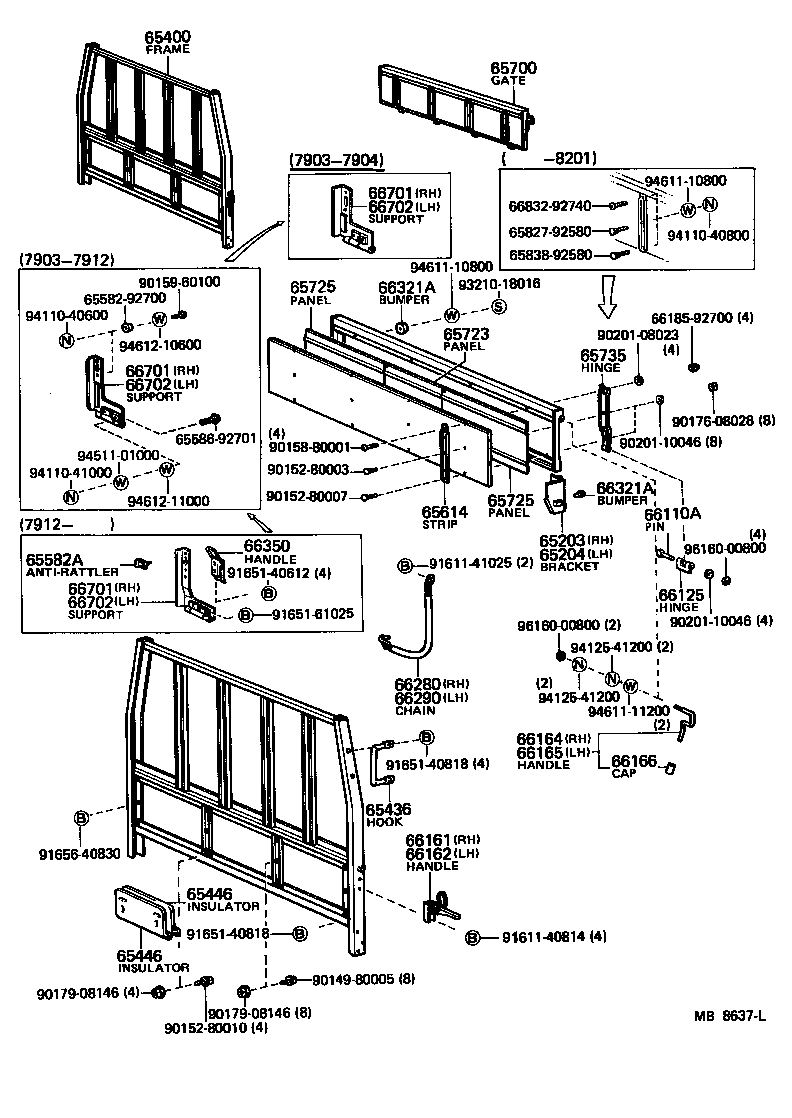

BY30-QDGHT (1982)
Toyota Toyoace
(7903-8408)TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65203 - BRACKET SUB-ASSY, GATE BUMPER, RH | ||||
| 65203-92701 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 65204 - BRACKET SUB-ASSY, GATE BUMPER, LH | ||||
| 65204-92701 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-92220 |
LY20,30,RY20,31..TB..WT..CBU |
1 | ||
| 65614 - STRIP, TAIL GATE HINGE, INSIDE | ||||
| 65716-92740 |
BY30,JY30,LY20,30,RY20,31..TB..CBU |
4 | ||
| 65723 - PANEL, TAIL GATE | ||||
| 65723-92740 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 65725 - PANEL, TAIL GATE SIDE | ||||
| 65725-92740 |
JY30,LY20,30,RY20,31..TB |
2 | ||
| 65725 - PANEL, TAIL GATE SIDE | ||||
| 65725-92740 |
JY30,LY20,30,RY20,31..TB |
2 | ||
| 65735 - HINGE, TAIL GATE MALE | ||||
| 66130-92740 |
JY30,LY20,30,RY20,31..TB |
4 | ||
| 66110A - PIN, TAIL GATE HINGE | ||||
| 66116-92703 |
BY3#,JY30,LY2#,3#,RY2#,3#..TB..CBU |
4 | ||
| 66125 - HINGE, TAIL GATE, FEMALE | ||||
| 66113-92740 |
LY31..TB;BY3#,JY30,LY2#,30,RY2#,3#..TB..(15T,20T) |
4 | ||
| 66161 - HANDLE, SIDE GATE LATCH, RH | ||||
| 65480-92700 |
BY3#,JY30,LY2#,3#,RY2#,3#..TB..CBU |
1 | ||
| 66162 - HANDLE, SIDE GATE LATCH, LH | ||||
| 65490-92701 |
BY3#,JY30,LY2#,3#,RY2#,3#..TB..CBU |
1 | ||
| 66164 - HANDLE, TAIL GATE LATCH, RH | ||||
| 66150-92700 |
BY30,JY30,LY20,30,RY20,31..TB..CBU |
1 | ||
| 66165 - HANDLE, TAIL GATE LATCH, LH | ||||
| 66160-92700 |
BY30,JY30,LY20,30,RY20,31..TB..CBU |
1 | ||
| 66166 - CAP, GATE LATCH HANDLE | ||||
| 66165-92700 |
BY30,JY30,LY20,30,RY20,31..TB..CBU |
2 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 66280-92200 |
BY30,JY30,LY20,30,RY20,31..TB..CBU |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 66290-92200 |
BY30,JY30,LY20,30,RY20,31..TB..CBU |
1 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66321-92703 |
LY31..TB;BY3#,JY30,LY2#,30,RY2#,3#..TB..(15T,20T) FRAME |
2 | ||
| 66322-92800 |
LY31..TB;BY3#,JY30,LY2#,30,RY2#,3#..TB..(15T,20T) GATE |
2 | ||
| 66321A - BUMPER, GATE RUBBER | ||||
| 66321-92703 |
LY31..TB;BY3#,JY30,LY2#,30,RY2#,3#..TB..(15T,20T) FRAME |
2 | ||
| 66322-92800 |
LY31..TB;BY3#,JY30,LY2#,30,RY2#,3#..TB..(15T,20T) GATE |
2 | ||
| 66701 - SUPPORT SUB-ASSY, SIDE GATE, RH | ||||
| 65570-92200 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 66701 - SUPPORT SUB-ASSY, SIDE GATE, RH | ||||
| 65570-92200 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 66701 - SUPPORT SUB-ASSY, SIDE GATE, RH | ||||
| 65570-92200 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 66702 - SUPPORT SUB-ASSY, SIDE GATE, LH | ||||
| 65580-92200 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 66702 - SUPPORT SUB-ASSY, SIDE GATE, LH | ||||
| 65580-92200 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| 66702 - SUPPORT SUB-ASSY, SIDE GATE, LH | ||||
| 65580-92200 |
JY30,LY20,30,RY20,31..TB |
1 | ||
| Common parts | ||||
| 65582-92700 | ||||
| 65586-92701 | ||||
| 65827-92580 | ||||
| 65838-92580 | ||||
| 66185-92700 | ||||
| 66832-92740 | ||||
| 90149-80005 | ||||
| 90152-80003 | ||||
| 90152-80007 | ||||
| 90152-80010 | ||||
| 90158-80001 | ||||
| 90159-60100 | ||||
| 90176-08028 | ||||
| 90179-08146 | ||||
| 90201-08023 | ||||
| 90201-10046 | ||||
| 91611-40814 | ||||
| 91611-41025 | ||||
| 91651-40612 | ||||
| 91651-40818 | ||||
| 91651-61025 | ||||
| 91656-40830 | ||||
| 93210-18016 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94125-41200 | ||||
| 94511-01000 | ||||
| 94611-10800 | ||||
| 94611-11200 | ||||
| 94612-10600 | ||||
| 94612-11000 | ||||
| 96160-00800 | ||||
