BY30-QDDHT (1980)

Toyota Toyoace

Production Sep 1980 - Aug 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8308)B

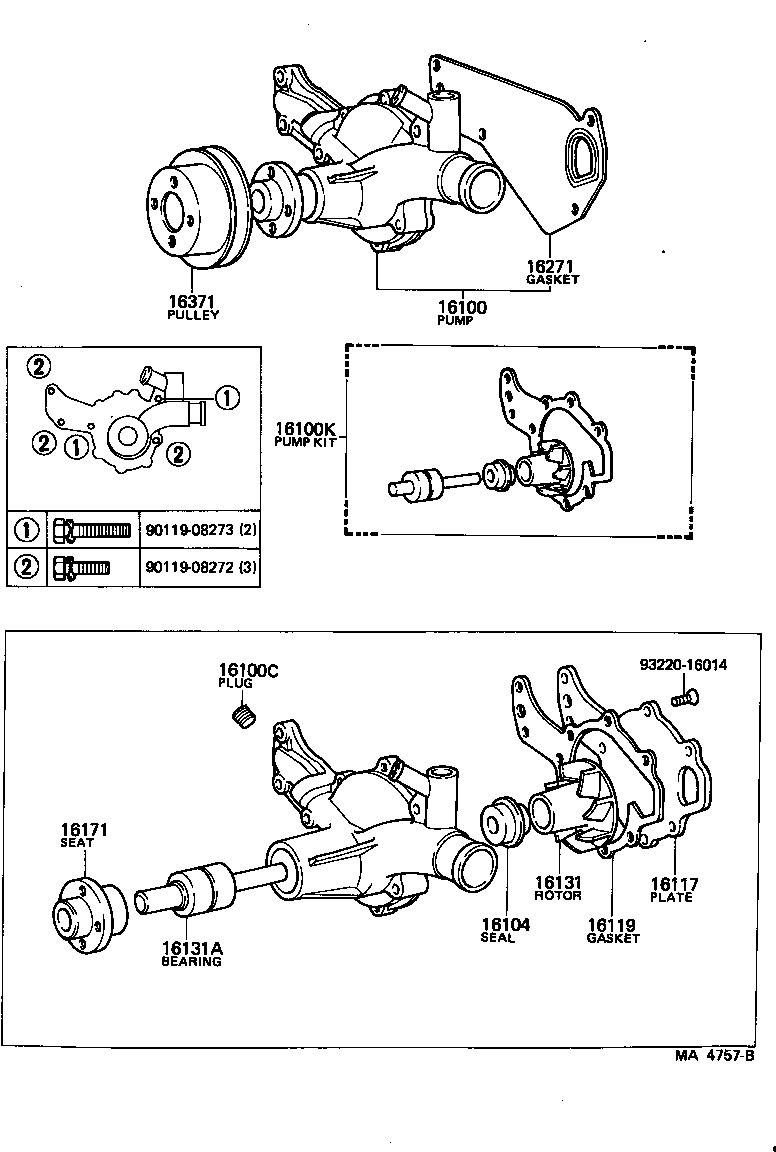

Click highlighted areas on diagram

diagram 16100 16100C 16100K 16104 16117 16119 16131 16131A 16171 16271 16371 9011908272 9011908273 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59065

B..BY30

 1
16100K - PUMP KIT, WATER
04161-56060

B..BY30

 1
16131A - BEARING, WATER PUMP
90369-30028

B..BY3#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-56010

B..BY30

 1
16371 - PULLEY, FAN
16371-56021

B..BY30

 1
16371-56020

B..BY30

 1
Common parts
90119-08272
90119-08273
93220-16014
