BY30-QDBHT (1980)

Toyota Toyoace

Production Sep 1980 - Aug 1983
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8308)

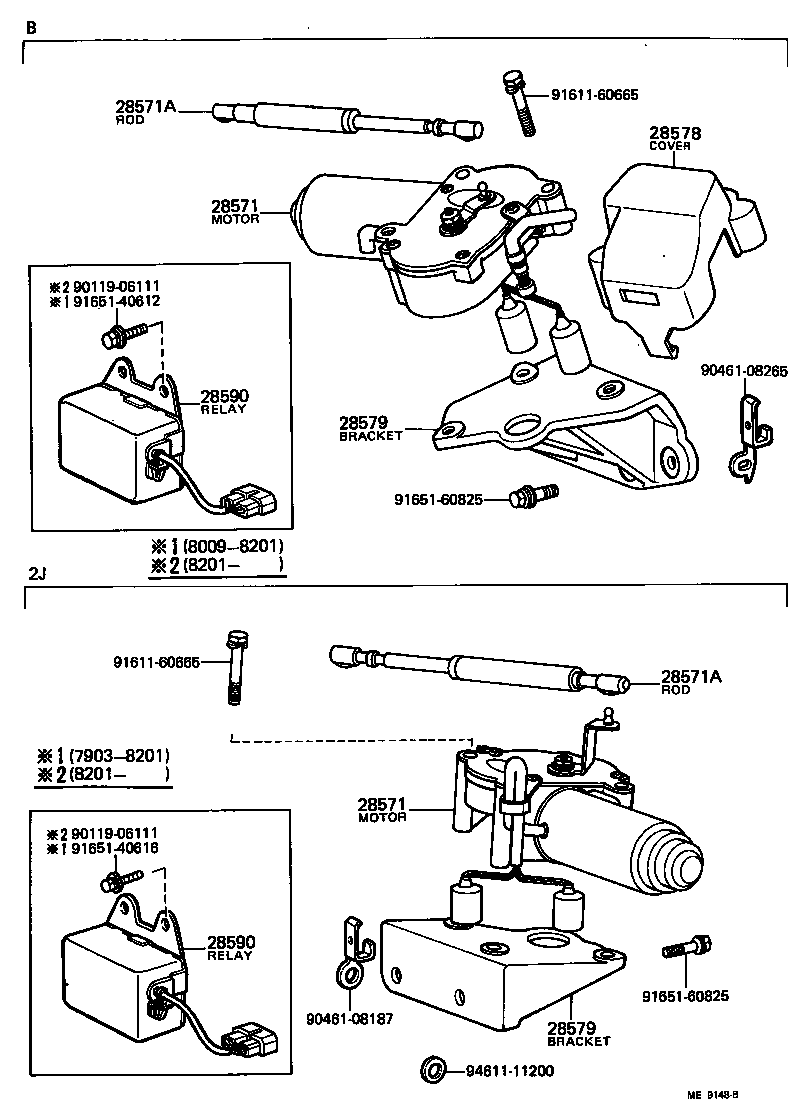

Click highlighted areas on diagram

diagram 28571 28571 28571A 28571A 28578 28579 28579 28590 28590 9011906111 9011906111 9046108187 9046108265 9161160665 9161160665 9165140612 9165140616 9165160825 9165160825 9461111200
Part # Description Qty Price
28571 - MOTOR, FUEL CONTROL
28571-56130

B..BY30

24V

 1
28571 - MOTOR, FUEL CONTROL
28571-56130

B..BY30

24V

 1
28571A - ROD, FUEL CONTROL MOTOR
84580-36021

B..BY30

 1
28571A - ROD, FUEL CONTROL MOTOR
84580-36021

B..BY30

 1
28578 - COVER, FUEL CONTROL MOTOR
28578-56010

B..BY30

 1
28579 - BRACKET, FUEL CONTROL MOTOR
28579-56030

B..BY30

 1
28579 - BRACKET, FUEL CONTROL MOTOR
28579-56030

B..BY30

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-56100

B..BY30

24V

 1
28590-25020

B,2J..BY30,JY30

24V

 1
28590 - RELAY ASSY, FUEL CONTROL
28590-56100

B..BY30

24V

 1
28590-25020

B,2J..BY30,JY30

24V

 1
Common parts
90119-06111
90461-08187
90461-08265
91611-60665
91651-40612
91651-40616
91651-60825
94611-11200
