YY61-MDRTJ (1985)
Toyota Toyoace/Dyna

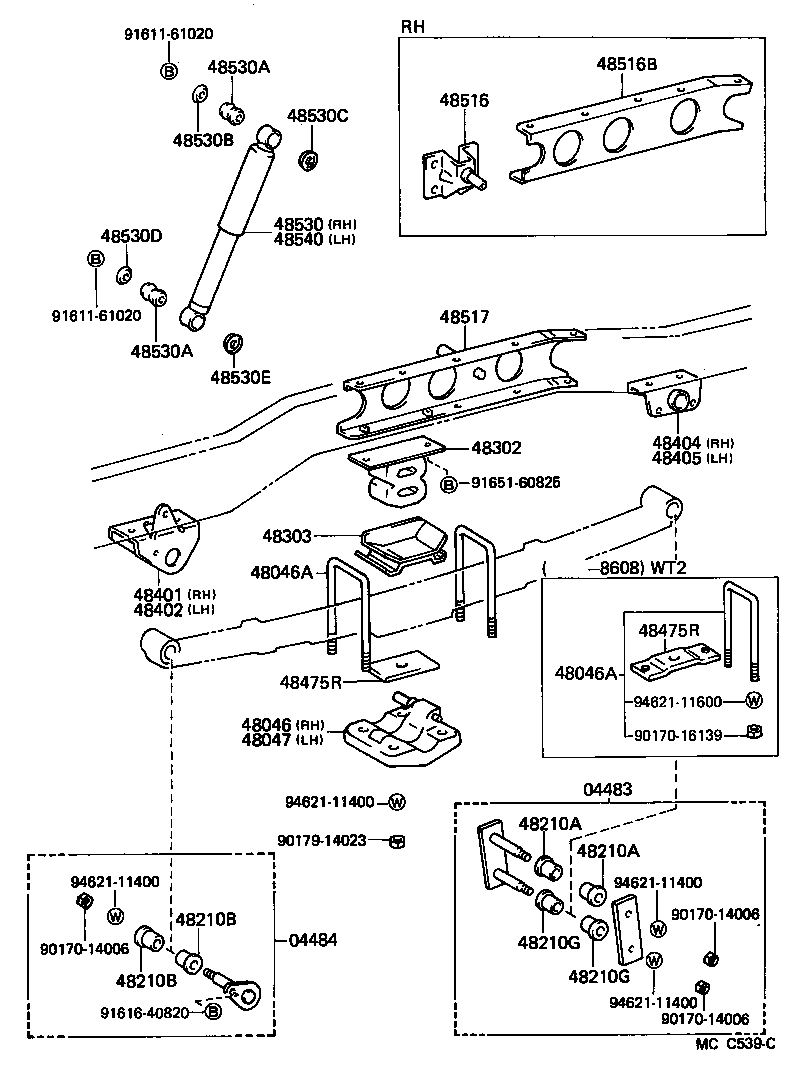

ILLUST NO. 1 OF 2(8508- )WT1,WT2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-25011 |
LY50,60,YY5#,61 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-25011 |
LY50,60,YY5#,61 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-25070 |
LY60,YY61..WT2 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16221 |
LY60,YY61..WT2 L=190 |
4 | ||
| 90118-16241 |
LY60,YY61..WT2 長さ=200 |
2 | ||
| 90117-16031 |
LY60,YY61..WT2 長さ=200 |
2 | ||
| 90117-16062 |
LY60,YY61..WT2 長さ=190 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-16221 |
LY60,YY61..WT2 L=190 |
4 | ||
| 90118-16241 |
LY60,YY61..WT2 長さ=200 |
2 | ||
| 90117-16031 |
LY60,YY61..WT2 長さ=200 |
2 | ||
| 90117-16062 |
LY60,YY61..WT2 長さ=190 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-25070 |
LY60,YY61..WT2 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY50,60,YY5#,61 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY50,60,YY5#,61 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY50,60,YY5#,61 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY50,60,YY5#,61 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY50,60,YY5#,61 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY50,60,YY5#,61 |
4 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-25050 |
LY50,60,YY5#,61..WT1,WT2 |
2 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48303-25060 |
LY60,YY61..WT2 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-25050 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48415-25020 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-25080 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-25060 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
LY60,YY61..WT2 |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-36051 |
LY60,YY61..WT2 |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-25040 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48516B - STIFFENER, FRAME SIDE RAIL, REAR RH | ||||
| 51155-25050 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-25040 |
LY50,60,YY5#,61..WT1,WT2 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-25090 |
LY60,YY61..WT2 ﾏｰｸ 48531−28490 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LY50,60,YY5#,61 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16004 |
LY50,60,YY5#,61 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
LY50,60,YY5#,61 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LY50,60,YY5#,61 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
LY50,60,YY5#,61..WT1,WT2 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
LY50,60,YY5#,61..WT1,WT2 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-25090 |
LY60,YY61..WT2 ﾏｰｸ 48531−28490 |
1 | ||
| Common parts | ||||
| 90170-14006 | ||||
| 90170-16139 | ||||
| 90179-14023 | ||||
| 91611-61020 | ||||
| 91616-40820 | ||||
| 91651-60825 | ||||
| 94621-11400 | ||||
| 94621-11600 | ||||

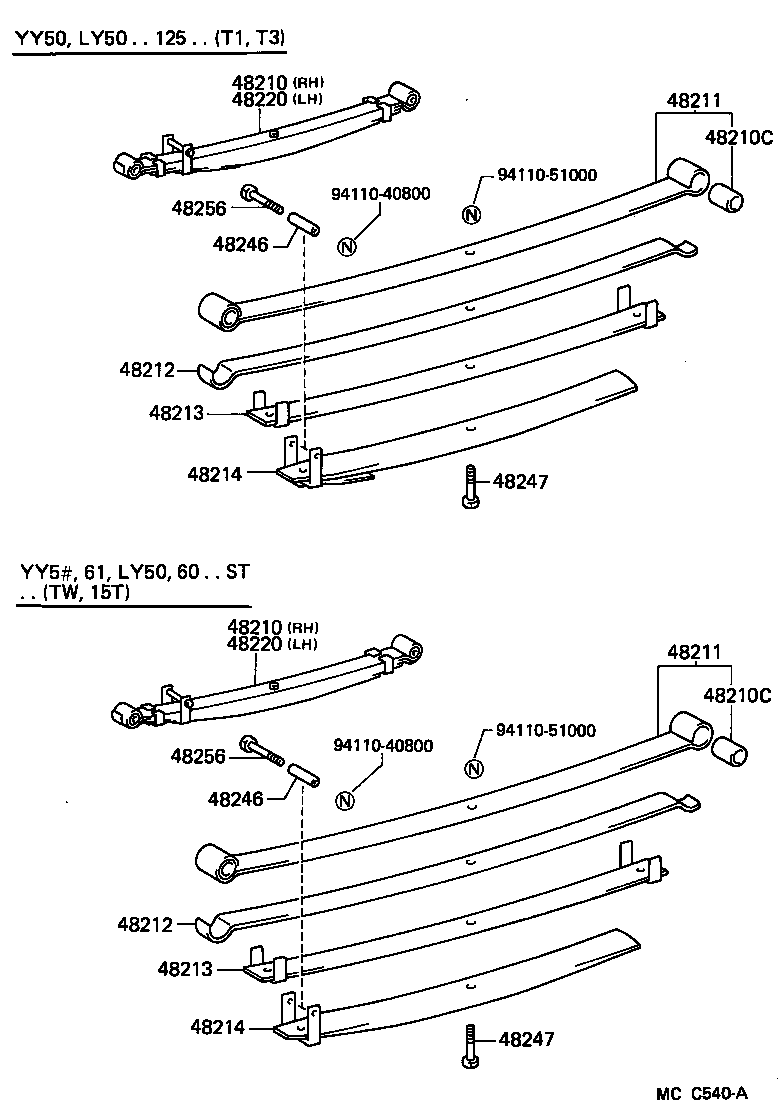

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||

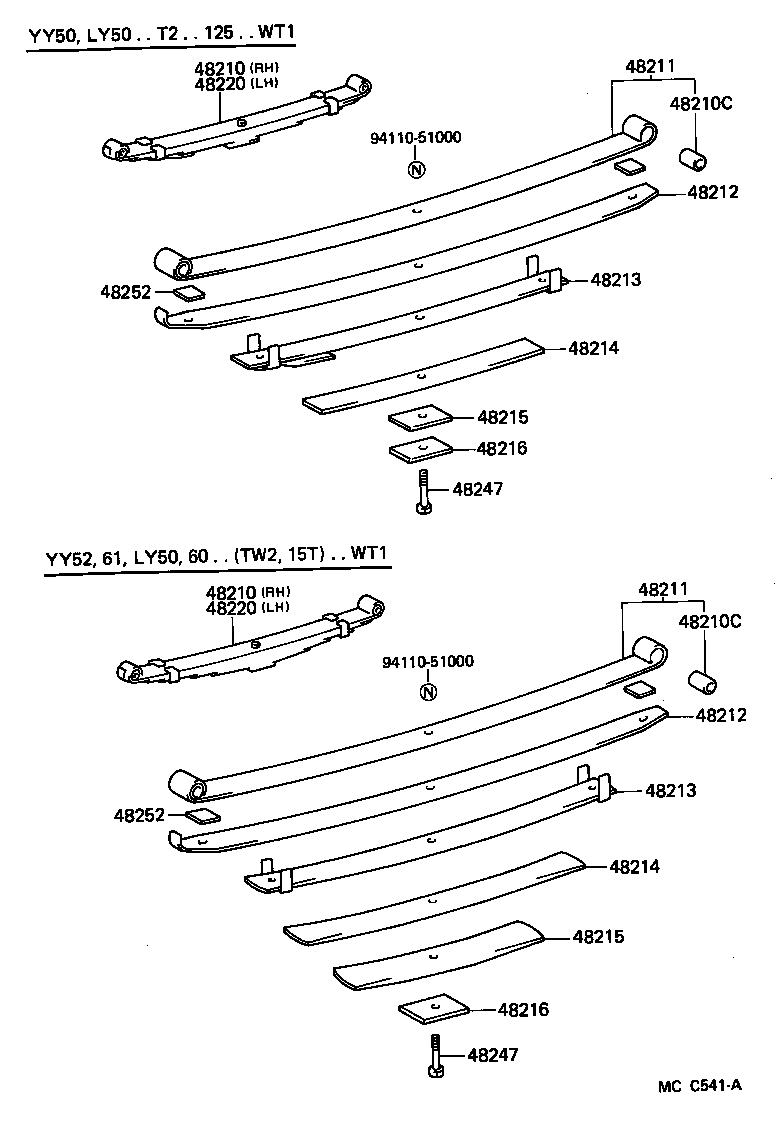

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48215-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48215-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48215-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48215-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48215-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48215-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY50,60,YY5#,61..WT1,WT2 |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY50,60,YY5#,61..WT1,WT2 |
4 | ||
| Common parts | ||||
| 94110-51000 | ||||

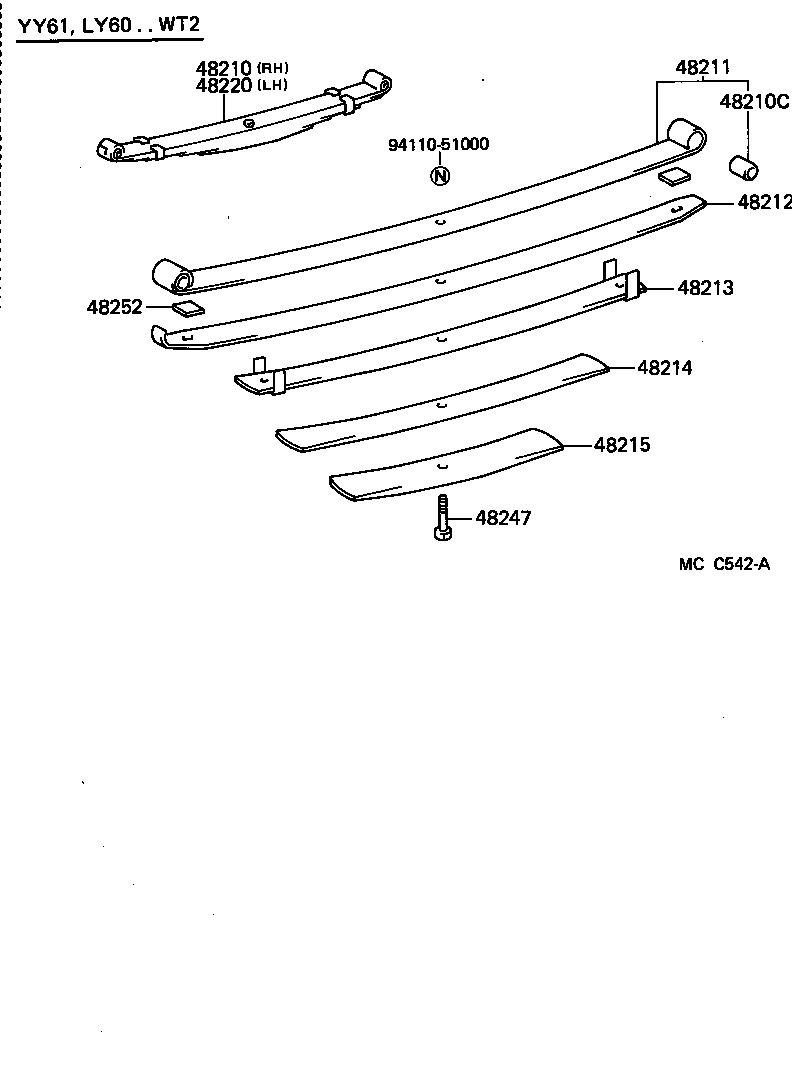

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48215-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48215-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48215-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY50,60,YY5#,61..WT1,WT2 |
4 | ||
| Common parts | ||||
| 94110-51000 | ||||

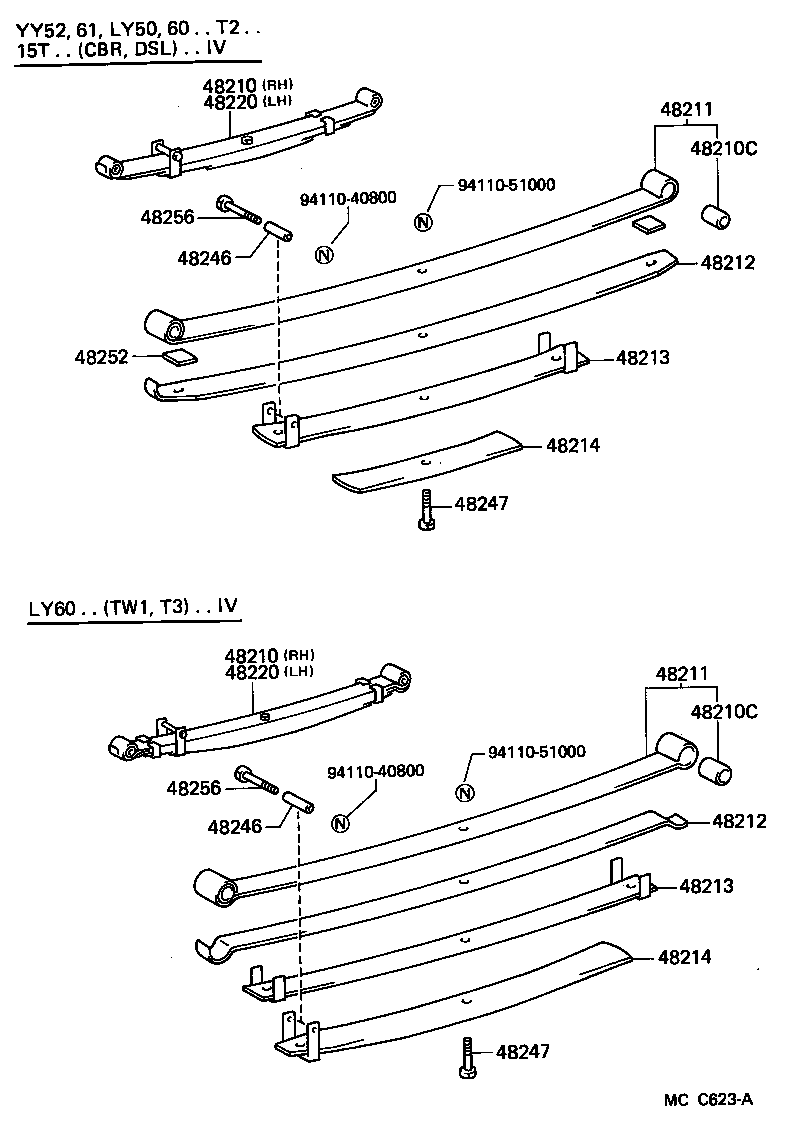

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25430 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 48299-25140 |
LY50,60,YY5#,61 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 右側 |
1 | ||
| 48201-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 左側 |
1 | ||
| 48201-25420 |
LY60,YY61..WT2 左側 |
1 | ||
| 48201-25410 |
LY60,YY61..WT2 右側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48212-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48212-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48212-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48202-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48202-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48202-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25400 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 LH |
1 | ||
| 48214-25420 |
LY60,YY61..WT2 LH |
1 | ||
| 48214-25410 |
LY50..15T..WT1;LY60,YY52,61..WT1,WT2 RH |
1 | ||
| 48214-25410 |
LY60,YY61..WT2 RH |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25420 |
LY60,YY61..WT2 5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25140 |
LY60,YY61..WT2 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LY50,60,YY5#,61..WT1,WT2 |
4 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
