YY61-MDPJ (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )TW

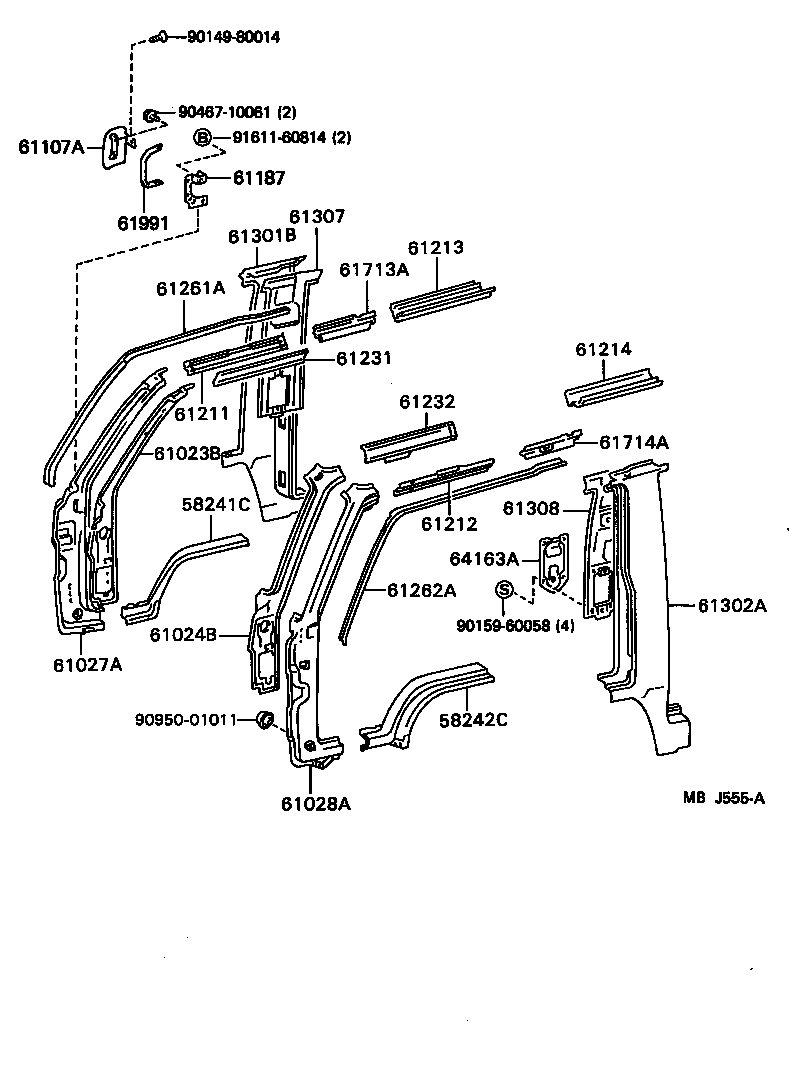

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58241C - PANEL, FLOOR SIDE, RH | ||||
| 58241-92603 |
LY50,60,YY50,61..TW |
1 | ||
| 58242C - PANEL, FLOOR SIDE, LH | ||||
| 58242-92603 |
LY50,60,YY50,61..TW |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95400 |
LY50,60,YY5#,61 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95400 |
LY50,60,YY5#,61 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95400 |
LY50,60,YY5#,61 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95400 |
LY50,60,YY5#,61 |
1 | ||
| 61107A - COVER SUB-ASSY, FRONT PILLAR DOOR HINGE | ||||
| 61107-95415 |
LY50,60,YY5#,61 |
1 | ||
| 61187 - BRACKET, FRONT PILLAR DOOR HINGE COVER, RH | ||||
| 61187-95400 |
LY50,60,YY5#,61 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-95403 |
LY50,60,YY5#,61 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-95403 |
LY50,60,YY5#,61 |
1 | ||
| 61213 - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61310-95400 |
LY50,60,YY50,61..TW |
1 | ||
| 61214 - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61310-95400 |
LY50,60,YY50,61..TW |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-92601 |
LY50,60,YY50,61..TW |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-92600 |
LY50,60,YY50,61..TW |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61261-92601 |
LY50,60,YY50,61..TW |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61262-92601 |
LY50,60,YY50,61..TW |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-92603 |
LY50,60,YY50,61..TW |
1 | ||
| 61302A - PILLAR, CENTER BODY, OUTER LH | ||||
| 61302-92607 |
LY50,60,YY50,61..TW |
2 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-92602 |
LY50,60,YY50,61..TW |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-92604 |
LY50,60,YY50,61..TW |
1 | ||
| 61308-92603 |
LY50,60,YY50,61..TW W/RR HEATER |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-92602 |
LY50,60,YY50,61..TW |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-92602 |
LY50,60,YY50,61..TW |
1 | ||
| 61991 - PROTECTOR, FRONT PILLAR DOOR HINGE | ||||
| 61991-95400 |
LY50,60,YY5#,61 |
1 | ||
| 64163A - COVER, BACK CORNER, INNER | ||||
| 64163-95404 |
LY50,60,YY5#,61 |
2 | ||
| Common parts | ||||
| 90149-80014 | ||||
| 90159-60058 | ||||
| 90467-10061 | ||||
| 90950-01011 | ||||
| 91611-60814 | ||||
