YY61-MDPJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

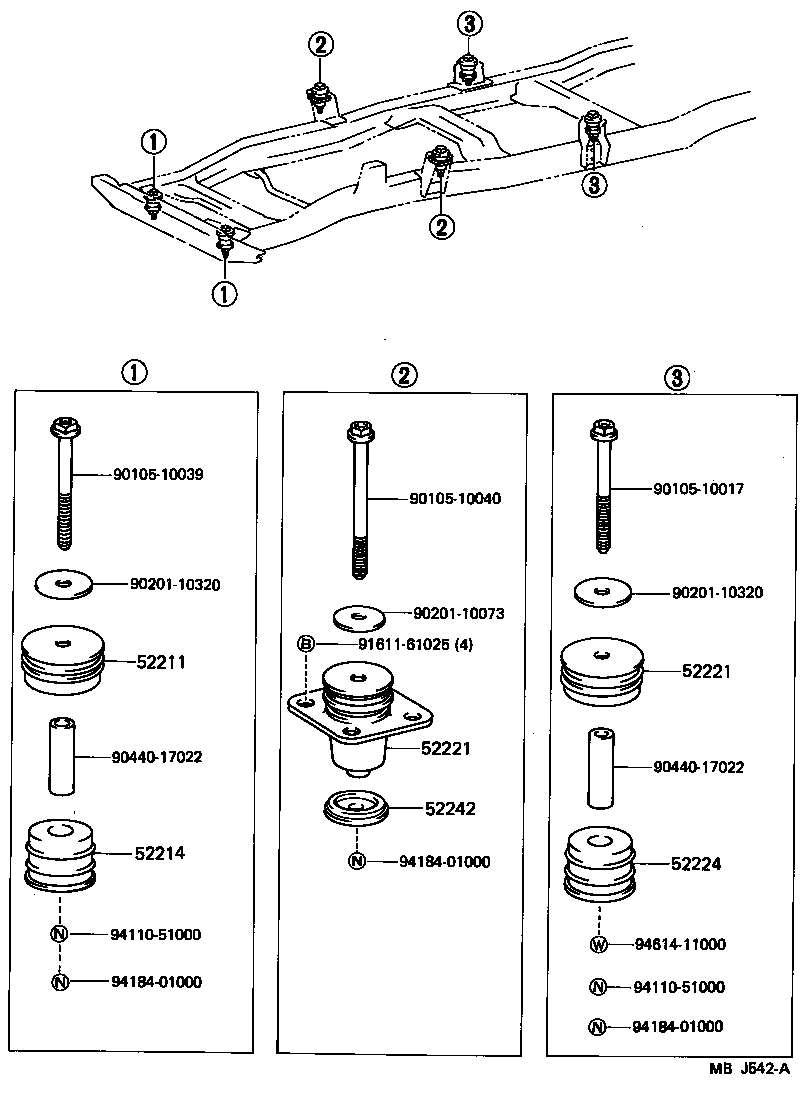

Click highlighted areas on diagram

diagram 52211 52214 52221 52221 52224 52242 9010510017 9010510039 9010510040 9020110073 9020110320 9020110320 9044017022 9044017022 9161161025 9411051000 9411051000 9418401000 9418401000 9418401000 9461411000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-25030

LY50,60,YY5#,61

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-25030

LY50,60,YY5#,61

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-25030

LY50,60,YY50,61..TW

NO.3

 2
52203-25040

LY50,60,YY5#,61

NO.2

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-25030

LY50,60,YY50,61..TW

NO.3

 2
52203-25040

LY50,60,YY5#,61

NO.2

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-25020

LY50,60,YY50,61..TW

 2
52242 - CUSHION, CAB REAR MOUNTING REBOUND
52242-25030

LY50,60,YY5#,61

 2
Common parts
90105-10017
90105-10039
90105-10040
90201-10073
90201-10320
90440-17022
91611-61025
94110-51000
94184-01000
94614-11000
