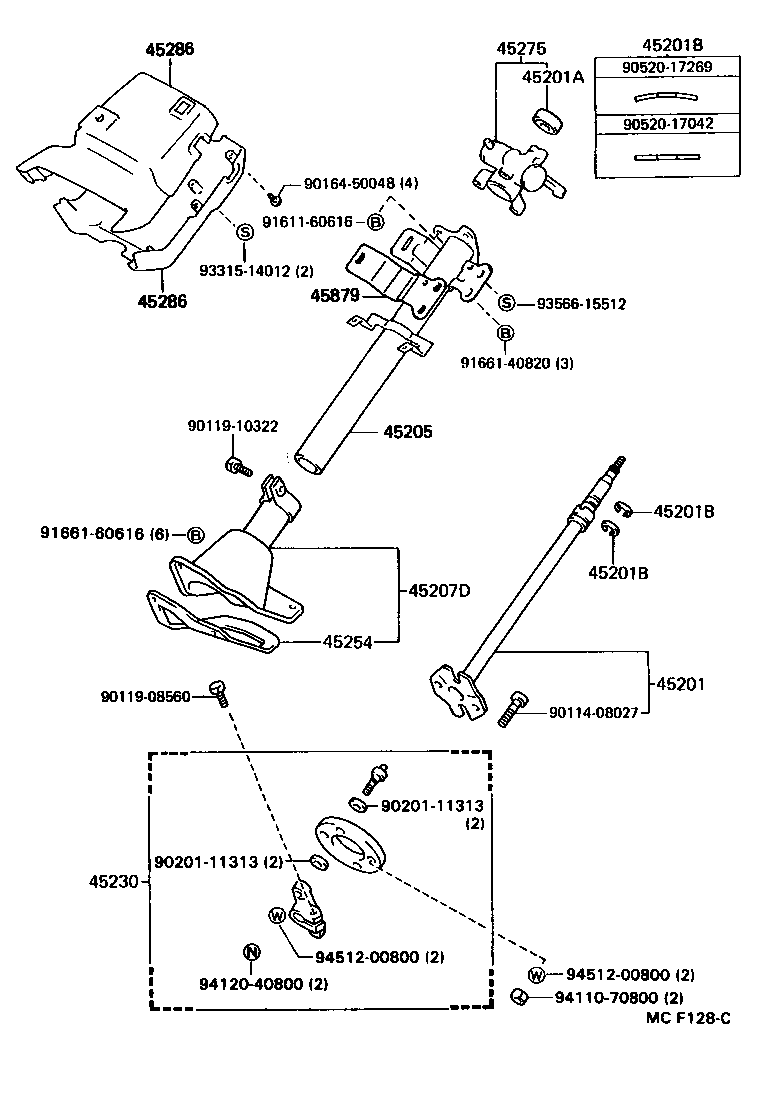

Toyota Toyoace/dyna YY61 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45201 - SHAFT SUB-ASSY, STEERING MAIN
45201-26080	LY5#,61,YY5#,61	09/1992 - 05/1995	1
45201-25090	LY5#,6#,YY5#,61	08/1987 - 09/1992	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038	LY5#,6#,YY5#,61..MTM	08/1987 - 05/1995	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	LY5#,6#,YY5#,61 厚さ=1.20,下側	08/1987 - 05/1995	1
90520-17269	LY5#,6#,YY5#,61 厚さ=1.20,上側	08/1987 - 05/1995	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	LY5#,6#,YY5#,61 厚さ=1.20,下側	08/1987 - 05/1995	1
90520-17269	LY5#,6#,YY5#,61 厚さ=1.20,上側	08/1987 - 05/1995	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	LY5#,6#,YY5#,61 厚さ=1.20,下側	08/1987 - 05/1995	1
90520-17269	LY5#,6#,YY5#,61 厚さ=1.20,上側	08/1987 - 05/1995	1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-25121	LY5#,6#,YY5#,61	08/1987 - 05/1995	1
45207D - COVER SUB-ASSY, MAIN SHAFT JOINT
45207-25021	LY5#,6#,YY5#,61	08/1987 - 03/1993	1
45207-25022	LY5#,61,YY5#,61	03/1993 - 05/1995	1
45230 - COUPLING ASSY, FLEXIBLE
45230-25020	LY5#,61,YY5#,61 ﾅｼ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	09/1991 - 09/1992	1
45230-25011	LY5#,6#,YY5#,61	08/1987 - 10/1989	1
45230-25011	LY5#,61,YY5#,61 ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	10/1989 - 09/1991	1
45230-25022	LY5#,61,YY52,61	07/1994 - 05/1995	1
45230-25011	LY5#,61,YY5#,61	09/1991 - 09/1992	1
45230-25021	LY5#,61,YY5#,61	09/1992 - 07/1994	1
45230-25020	LY5#,61,YY5#,61	10/1989 - 09/1991	1
45254 - SHIELD, STEERING COLUMN HOLE
45254-36090	LY5#,6#,YY5#,61	08/1987 - 05/1995	1
45275 - BRACKET, STEERING COLUMN, UPPER
45307-36190	LY5#,61,YY5#,61..MTM	09/1991 - 05/1995	1
45307-36150	LY5#,6#,YY5#,61	08/1987 - 09/1991	1
45286 - COVER, STEERING COLUMN
45286-3668004	LY50,60,YY5#,61..TOY BLUE,TRIM8#,上側	08/1987 - 08/1988	1
45286-2515004	LY5#,61,YY5#,61..TOY BLUE,TRIM8#,上側	08/1988 - 09/1991	1
45287-36270B0	LY5#,61,YY5#,61 GRAY,TRIM1#,下側	09/1991 - 05/1995	1
45286-25150B0	LY5#,61,YY5#,61 GRAY,TRIM1#,上側	09/1991 - 05/1995	1
45287-3627004	LY5#,6#,YY5#,61..TOY BLUE,TRIM8#,下側	08/1987 - 09/1991	1
45286 - COVER, STEERING COLUMN
45286-3668004	LY50,60,YY5#,61..TOY BLUE,TRIM8#,上側	08/1987 - 08/1988	1
45286-2515004	LY5#,61,YY5#,61..TOY BLUE,TRIM8#,上側	08/1988 - 09/1991	1
45287-36270B0	LY5#,61,YY5#,61 GRAY,TRIM1#,下側	09/1991 - 05/1995	1
45286-25150B0	LY5#,61,YY5#,61 GRAY,TRIM1#,上側	09/1991 - 05/1995	1
45287-3627004	LY5#,6#,YY5#,61..TOY BLUE,TRIM8#,下側	08/1987 - 09/1991	1
45879 - BRACKET, STEERING COLUMN UPPER SUPPORT, NO.2
45879-25011	LY5#,6#,YY5#,61	08/1987 - 05/1995	1
Common parts
90114-08027
90119-08560
90119-10322
90164-50048
90201-11313
90520-17042
90520-17269
91611-60616
91661-40820
91661-60616
93315-14012
93566-15512
94110-70800
94120-40800
94512-00800

YY61-MDPJ (1987)

(8708- )
