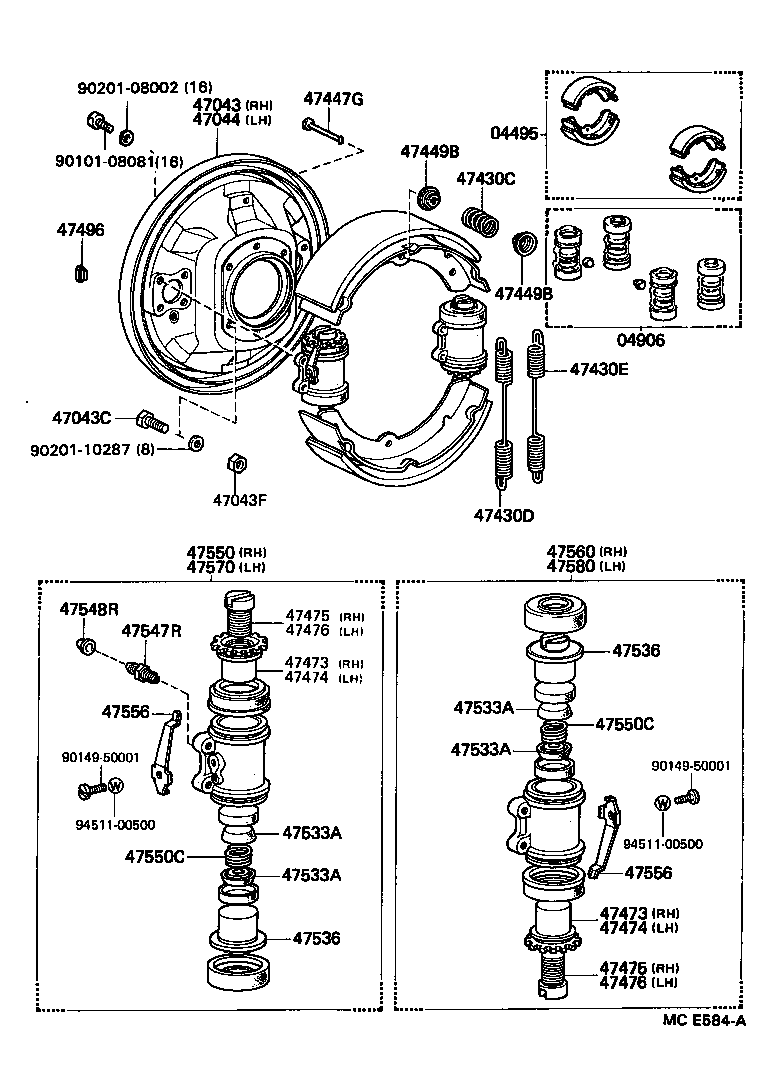

YY61-MDPGTJ3 (1987)
Toyota Toyoace/Dyna
(8708- )YY52..15T..WT1 ; (8708- )LY5#,6#,YY61..WT1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04497-25020 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 REBUILT |
1 | ||
| 04495-25020 |
LY50..15T..WT1;LY51,6#,YY52,61..WT1 |
1 | ||
| 04494-25040 |
YY52..15T..WT1;LY51,61,YY61..MTM..WT1 ﾏｰｸ NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-25050 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-25080 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90101-10028 |
LY5#,6#,YY5#,61..WT1 *10−1.25PX27−18 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10021 |
LY5#,61,YY5#,61..WT1 |
8 | ||
| 94110-71000 |
LY50,60,YY5#,61..WT1 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-25050 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..(WT1,WT2) |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26007 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26007 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
LY5#,6#,YY5#,61 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY5#,6#,YY5#,61 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
LY5#,6#,YY5#,61 |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-25040 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
YY52..15T;LY51,61,YY61..MTM..(ST,WT1) |
4 | ||
| 47491-36010 |
LY60,YY61..ST,WT1;LY50,YY5#..10T,15T |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-60011 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-25020 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47051-25020 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
YY52..15T;LY51,61,YY61..MTM |
2 | ||
| 47547-12010 |
LY60,YY61;LY50,YY5#..10T,15T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
LY5#,6#,YY5#,61 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
LY60,YY61;LY50,YY5#..10T,15T |
4 | ||
| 90501-09735 |
YY52..15T;LY51,61,YY61..MTM |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
LY60,YY61;LY50,YY5#..10T,15T |
4 | ||
| 90501-09735 |
YY52..15T;LY51,61,YY61..MTM |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36030 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36030 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-25070 |
LY50,YY52..15T..WT1;LY51,6#,YY61..MTM..WT1 |
1 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-10287 | ||||
| 94511-00500 | ||||
