YY61-MDPGTJ (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

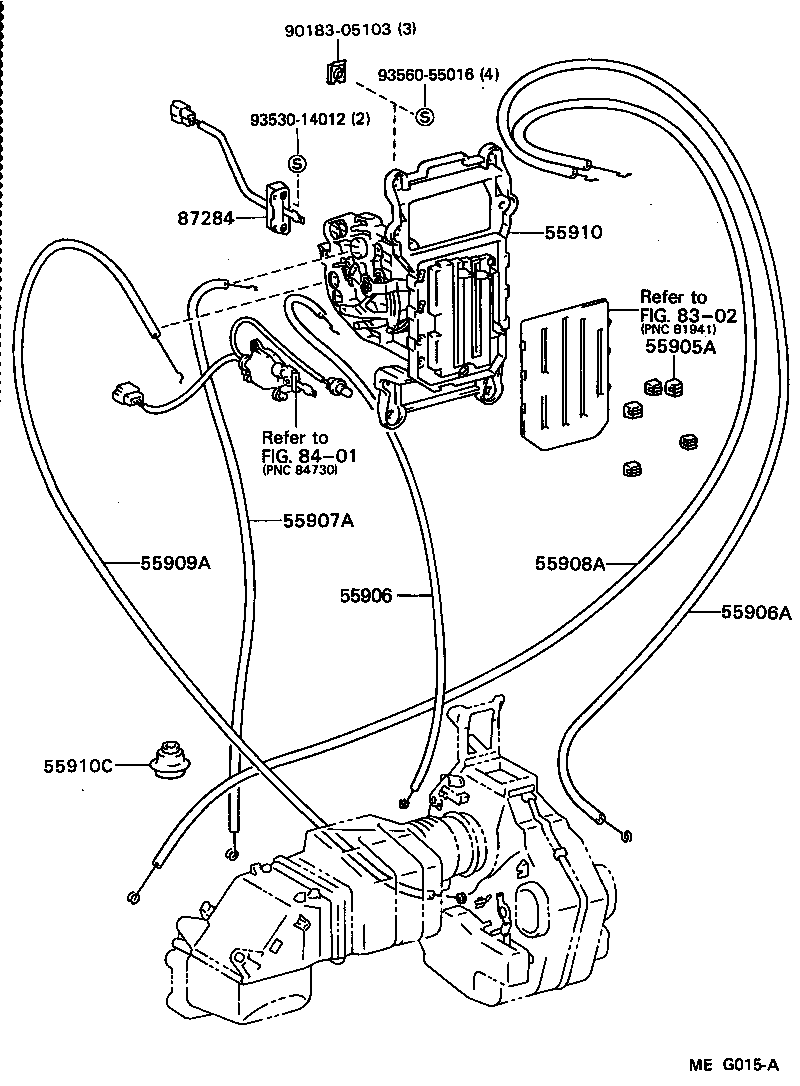

ILLUST NO. 1 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-10110 |
LY50,60,YY5#,61 CABLE LEVER |
3 | ||
| 55905-95707 |
LY50,60,YY5#,61 BLOWER SW OR VARIABLE RESISTOR |
2 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55905-95401 |
LY50,60,YY5#,61 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95404 |
LY50,60,YY5#,61 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95404 |
LY50,60,YY5#,61 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95402 |
LY50,60,YY5#,61 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95404 |
LY50,60,YY5#,61 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95407 |
LY50,60,YY5#,61 |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-24215 |
LY50,60,YY5#,61 |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-95400 |
LY50,60,YY5#,61 |
1 | ||
| Common parts | ||||
| 90183-05103 | ||||
| 93530-14012 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

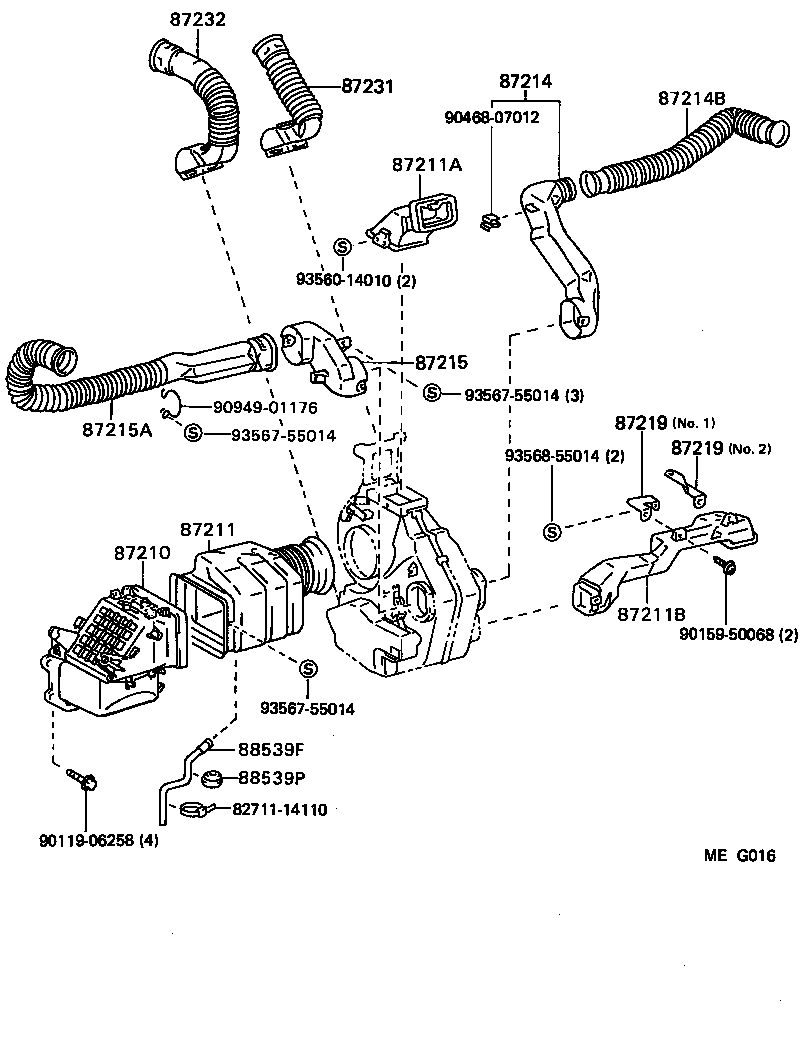

ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-95402 |
LY50,60,YY5#,61 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95404 |
LY50,60,YY5#,61 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-95402 |
LY50,60,YY5#,61 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-95408 |
LY50,60,YY5#,61 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55843-95405 |
LY50,60,YY5#,61 |
1 | ||
| 87214B - DUCT, AIR, SIDE NO.3 RH | ||||
| 55863-95405 |
LY50,60,YY5#,61 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55848-95400 |
LY50,60,YY5#,61 |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55847-95400 |
LY50,60,YY5#,61 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
LY50,60,YY5#,61 NO.1 |
1 | ||
| 87214-95403 |
LY50,60,YY5#,61 NO.2 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87214-95402 |
LY50,60,YY5#,61 NO.1 |
1 | ||
| 87214-95403 |
LY50,60,YY5#,61 NO.2 |
1 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-95405 |
LY50,60,YY5#,61 |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87231-95406 |
LY50,60,YY5#,61 |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-95403 |
LY50,60,YY5#,61 |
1 | ||
| 88539P - GROMMET(FOR DRAIN HOSE) | ||||
| 88897-30580 |
LY50,60,YY5#,61 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06258 | ||||
| 90159-50068 | ||||
| 90468-07012 | ||||
| 90949-01176 | ||||
| 93560-14010 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 2(8708-9110)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05103 | ||||
| 93530-14012 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
