YY61-MDPGTJ (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
3Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

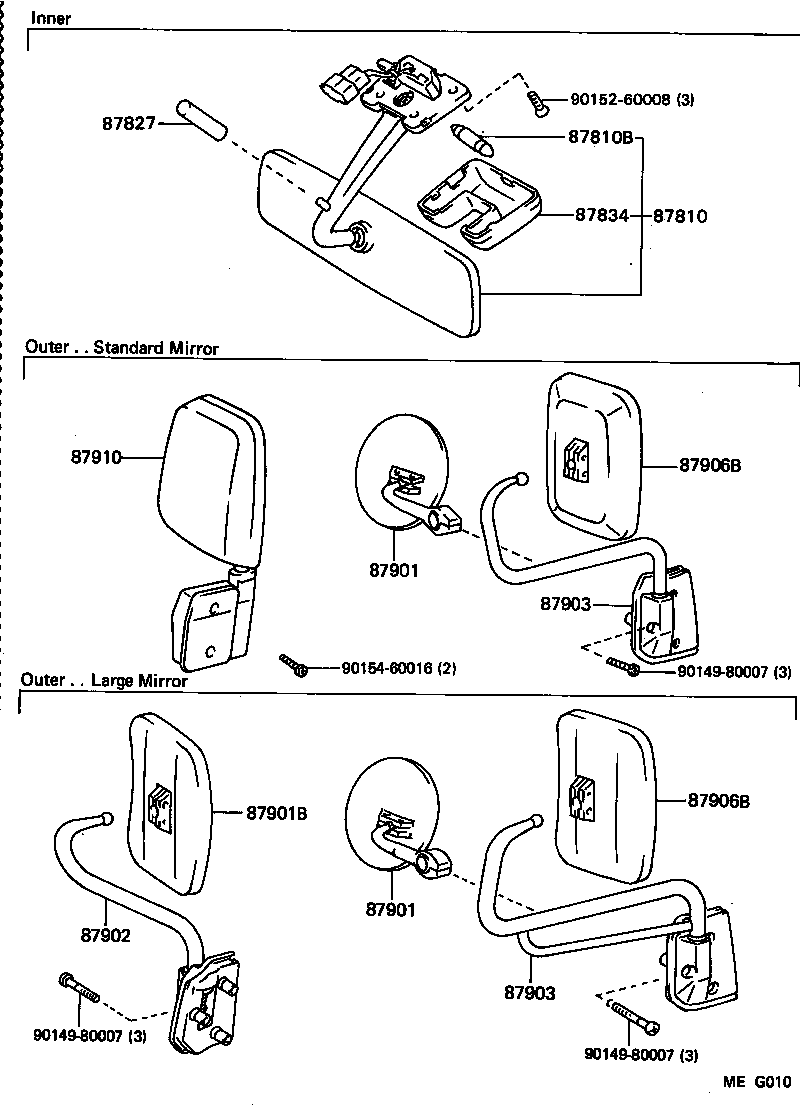

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-9541801 |
LY50,60,YY5#,61 BLACK,BLACK |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LY50,60,YY5#,61 12V 10W |
1 | ||
| 87827 - ABSORBER, INNER REAR VIEW MIRROR | ||||
| 87828-30010 |
LY50,60,YY5#,61 L=43.5 |
1 | ||
| 87828-23010 |
LY50,60,YY5#,61 L=38.5 |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95701 |
LY50,60,YY5#,61 |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95A00 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95A00 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| 87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH | ||||
| 87094-95A00 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| 87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH | ||||
| 87094-95A00 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87901-95A00 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-95A10 |
LY50,60,YY5#,61 STD TYPE |
1 | ||
| Common parts | ||||
| 90149-80007 | ||||
| 90152-60008 | ||||
| 90154-60016 | ||||
