YY61-MDPGTJ (1987)
Toyota Toyoace/Dyna

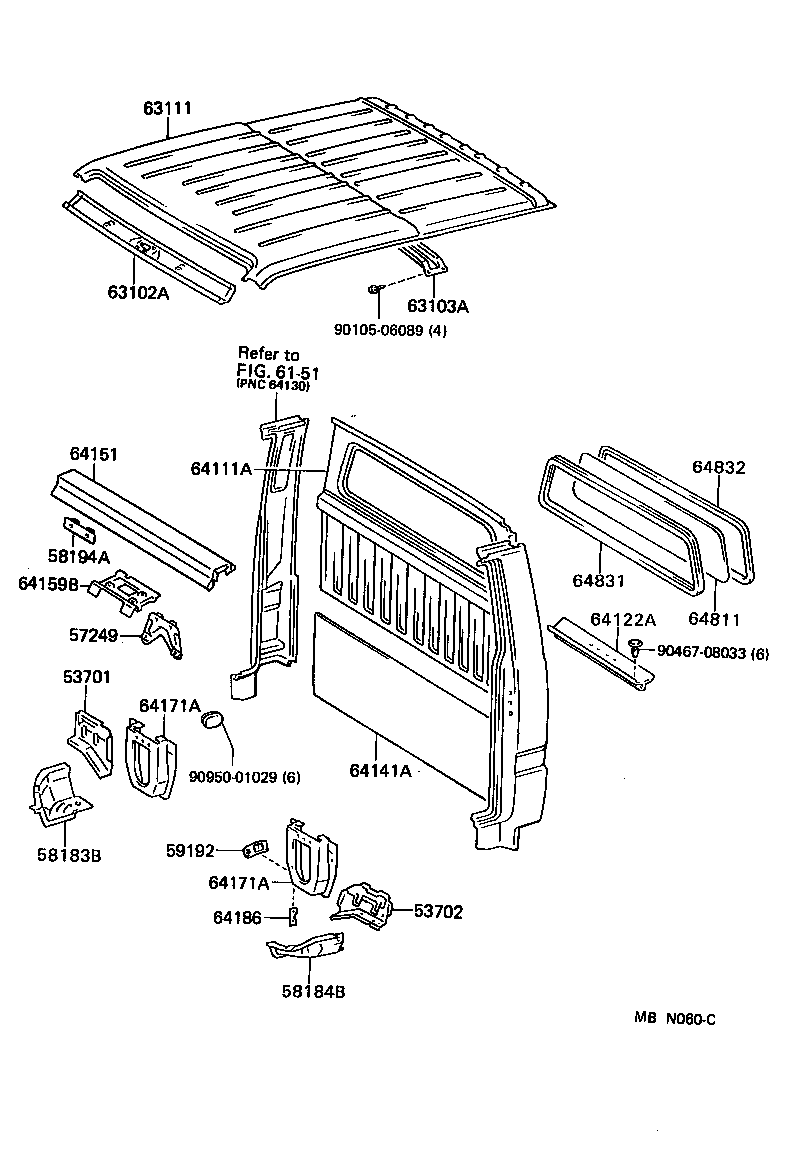

(8708- )T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-95411 |
LY50,60,YY51,61..TW |
1 | ||
| 53717-95A03 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53717-95413 |
LY50,61,YY51,61..TW |
1 | ||
| 53717-95A05 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53717-95A03 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53717-95411 |
LY50,61,YY5#,61..TW |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-95A02 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53718-95A02 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53718-95A03 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53718-95412 |
LY50,61,YY5#,61..TW |
1 | ||
| 53718-95414 |
LY50,61,YY51,61..TW |
1 | ||
| 53718-95412 |
LY50,60,YY51,61..TW |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-95A00 |
YY5#,61 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-95405 |
LY50,60,YY5#,61 |
1 | ||
| 58183-95405 |
LY5#,61,YY5#,61 |
1 | ||
| 58183-95406 |
LY5#,61,YY5#,61 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-95405 |
LY5#,61,YY5#,61 |
1 | ||
| 58184-95404 |
LY50,60,YY5#,61 |
1 | ||
| 58184-95404 |
LY5#,61,YY5#,61 |
1 | ||
| 58194A - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95400 |
LY5#,61 |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-95A00 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 59191 - BRACKET, NOISE SHUTTER | ||||
| 59191-95A00 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 59192 - BRACKET, NOISE SHUTTER, NO.2 | ||||
| 59192-95A00 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95420 |
LY5#,61,YY5#,61 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63132-95418 |
LY5#,6#,YY5#,61 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95417 |
LY50,6#,YY5#,61..TW |
1 | ||
| 63111-95409 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63111-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63111-37020 |
LY61..15T..CBU;LY61..DYN..15T..IV;LY51,YY52,61..T1,T2,T3,T4;LY61..TOY..15T..(ST,WT2)..IV ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-95400 |
LY61..15T..CBU;LY61..DYN..15T..IV;LY51,YY52,61..T1,T2,T3,T4;LY61..TOY..15T..(ST,WT2)..IV |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-95040 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-95040 |
YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-25040 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-25010 |
YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-95450 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64100-25050 |
LY5#,61..T1,T2,T3,T4 ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 64100-25030 |
YY52,61..T1,T2,T3,T4 ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 64100-95041 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95A06 |
LY50,6#,YY51,61..TW |
1 | ||
| 64122-25010 |
LY5#,61,YY5#,61..T1,T2,T4 |
1 | ||
| 64122-37060 |
LY50,61,YY5#,61..TW |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-25020 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64151-95409 |
LY50,61,YY51,61..TW |
1 | ||
| 64151-37010 |
LY50,61,YY51,61..TW |
1 | ||
| 64151-95028 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64151-25021 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 64151-37011 |
LY50,61,YY52,61..TW |
1 | ||
| 64154A - RETAINER, BACK FRAME SHIFT CONTROL LINK | ||||
| 64154-95A00 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64159B - BRACKET, BACK FRAME SHIFT CONTROL LINK | ||||
| 64159-95A00 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64159-95A01 |
LY50,61,YY5#,61..TW |
1 | ||
| 64160A - CLIP(FOR BACK PANEL UPPER SILENCER) | ||||
| 90467-06171C0 |
LY5#,61..T1,T2,T3,T4 BLACK,TRIM1# |
5 | ||
| 90467-06171C0 |
YY52,61..T1,T2,T3,T4 BLACK,TRIM1# |
5 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64171-95408 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64025-25020 |
LY50,61,YY5#,61..TW |
2 | ||
| 64171-95410 |
LY50,6#,YY51,61..TW |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64171-95408 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64025-25020 |
LY50,61,YY5#,61..TW |
2 | ||
| 64171-95410 |
LY50,6#,YY51,61..TW |
2 | ||
| 64189 - CLAMP, BACK PANEL SILENCER | ||||
| 64189-95400 |
LY5#,6#..T1,T2,T3,T4 |
4 | ||
| 64189-95400 |
YY52,61..T1,T2,T3,T4 |
4 | ||
| 64189 - CLAMP, BACK PANEL SILENCER | ||||
| 64189-95400 |
LY5#,6#..T1,T2,T3,T4 |
4 | ||
| 64189-95400 |
YY52,61..T1,T2,T3,T4 |
4 | ||
| 64190 - SILENCER ASSY, BACK PANEL | ||||
| 64190-95015 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 64190-9501403 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｶｽﾀﾑ ｼﾖｳ,GRAY,TRIM1# |
1 | ||
| 64219C - STAY, BACK PANEL | ||||
| 64219-25010 |
LY5#,61..T1,T2,T3,T4 |
2 | ||
| 64270D - TRIM ASSY, BACK PANEL | ||||
| 64270-25010B0 |
LY5#,61..T1,T2,T3,T4 GRAY,TRIM1# |
1 | ||
| 64270-9540003 |
YY52,61..T1,T2,T3,T4 GRAY,TRIM1# |
1 | ||
| 64270E - CLIP | ||||
| 90467-0705413 |
LY5#,61,YY52,61..T1,T2,T3,T4 GRAY,TRIM1# |
6 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 *TT,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37020 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64812-95402 |
LY50,6#,YY51,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64811-95409 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37050 |
LY50,61,YY51,61..TW *TT,厚さ=4.0 |
2 | ||
| 64812-95402 |
LY50,61,YY52,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95406 |
LY5#,61,YY52,61 |
1 | ||
| 64831-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64832-95010 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 64832-95013 |
LY50,6#,YY5#,61..TW |
1 | ||
| 75299 - BASE, JACK HOLDER | ||||
| 75299-95A00 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| Common parts | ||||
| 67772-95J01 | ||||
| 90119-08079 | ||||
| 90159-50206 | ||||
| 90467-08033 | ||||
| 93560-15010 | ||||
| 94613-10400 | ||||
| 95111-80413 | ||||
(8708- )T1,T2,T3,T4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63072 - DEFLECTOR SET, ROOF AIR | ||||
| 63072-95401 |
LY5#,61,YY52,61..T1,T2,T3,T4 ***,ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63072-95401 |
LY5#,6#,YY5#,61..T1,T3 ***,ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63072-95400 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 *** |
1 | ||
| 63701A - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, FRONT | ||||
| 63701-95400 |
LY5#,6#,YY5#,61..T1,T3 右側 |
1 | ||
| 63702-95400 |
LY5#,6#,YY5#,61..T1,T3 左側 |
1 | ||
| 63702-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 左側 |
1 | ||
| 63701-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 右側 |
1 | ||
| 63706 - BRACKET SUB-ASSY, ROOF AIR DEFLECTOR, REAR | ||||
| 63706-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
2 | ||
| 63706-95400 |
LY5#,6#,YY5#,61..T1,T3 |
2 | ||
| 63707B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63707-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 63707-95400 |
LY5#,6#,YY5#,61..T1,T3 |
1 | ||
| 63708B - HOLDER SUB-ASSY, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63708-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 63708-95400 |
LY5#,6#,YY5#,61..T1,T3 |
1 | ||
| 63709A - HOLDER SUB-ASSY, ROOF DEFLECTOR, REAR | ||||
| 63709-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
2 | ||
| 63709-95400 |
LY5#,6#,YY5#,61..T1,T3 |
2 | ||
| 63760 - PANEL ASSY, ROOF AIR DEFLECTOR | ||||
| 63760-95401 |
LY5#,6#,YY5#,61..T1,T3 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63760-95400 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63760-95401 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63781 - STAY, ROOF AIR DEFLECTOR | ||||
| 63781-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
2 | ||
| 63781-95400 |
LY5#,6#,YY5#,61..T1,T3 |
2 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-95401 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
2 | ||
| 63782-95400 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63782-95401 |
LY5#,6#,YY5#,61..T1,T3 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
2 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-95401 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
2 | ||
| 63782-95400 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63782-95401 |
LY5#,6#,YY5#,61..T1,T3 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
2 | ||
| 63782 - SEAL, ROOF AIR DEFLECTOR | ||||
| 63782-95401 |
LY5#,61,YY52,61..T1,T2,T3,T4 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
2 | ||
| 63782-95400 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63782-95401 |
LY5#,6#,YY5#,61..T1,T3 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
2 | ||
| 63785A - PAD, ROOF AIR DEFLECTOR, FRONT RH | ||||
| 63785-95400 |
LY5#,6#,YY5#,61..T1,T3 |
1 | ||
| 63785-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 63786A - PAD, ROOF AIR DEFLECTOR, FRONT LH | ||||
| 63786-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 63786-95400 |
LY5#,6#,YY5#,61..T1,T3 |
1 | ||
| 63787 - PAD, ROOF AIR DEFLECTOR, NO.1 | ||||
| 63787-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
4 | ||
| 63787-95400 |
LY5#,6#,YY5#,61..T1,T3 |
4 | ||
| 63788 - PAD, ROOF AIR DEFLECTOR, NO.2 | ||||
| 63788-95400 |
LY5#,6#,YY5#,61..T1,T3 |
2 | ||
| 63788-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
2 | ||
| 63789 - PAD, ROOF AIR DEFLECTOR, NO.3 | ||||
| 63789-95400 |
LY5#,6#,YY5#,61..T1,T3 |
2 | ||
| 63789-95400 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
2 | ||
| Common parts | ||||
| 86391-95700 | ||||
| 90101-08078 | ||||
| 90101-08106 | ||||
| 90159-40206 | ||||
| 90170-08026 | ||||
| 90179-05032 | ||||
| 90179-06091 | ||||
| 90201-08055 | ||||
| 90269-03025 | ||||
| 90950-01258 | ||||
| 90959-01214 | ||||
| 93219-15020 | ||||
| 94171-20600 | ||||
| Linked diagrams | ||||
| 7551 | ||||
(8708- )TW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53717-95411 |
LY50,60,YY51,61..TW |
1 | ||
| 53717-95A03 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53717-95413 |
LY50,61,YY51,61..TW |
1 | ||
| 53717-95A05 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53717-95A03 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53717-95411 |
LY50,61,YY5#,61..TW |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53718-95A02 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53718-95A02 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53718-95A03 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 53718-95412 |
LY50,61,YY5#,61..TW |
1 | ||
| 53718-95414 |
LY50,61,YY51,61..TW |
1 | ||
| 53718-95412 |
LY50,60,YY51,61..TW |
1 | ||
| 57249 - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 57249-95A00 |
YY5#,61 |
1 | ||
| 58183B - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-95405 |
LY50,60,YY5#,61 |
1 | ||
| 58183-95405 |
LY5#,61,YY5#,61 |
1 | ||
| 58183-95406 |
LY5#,61,YY5#,61 |
1 | ||
| 58184B - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58184-95405 |
LY5#,61,YY5#,61 |
1 | ||
| 58184-95404 |
LY50,60,YY5#,61 |
1 | ||
| 58184-95404 |
LY5#,61,YY5#,61 |
1 | ||
| 58194A - RETAINER, ENGINE COVER HINGE | ||||
| 58194-95400 |
LY5#,61 |
1 | ||
| 59192 - BRACKET, NOISE SHUTTER, NO.2 | ||||
| 59192-95A00 |
LY5#,6#..T1,T2,T3,T4 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63132-95420 |
LY5#,61,YY5#,61 ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 63132-95418 |
LY5#,6#,YY5#,61 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-95412 |
LY50,6#,YY5#,61..TW |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-95417 |
LY50,6#,YY5#,61..TW |
1 | ||
| 63111-95409 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63111-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 63111-37020 |
LY61..15T..CBU;LY61..DYN..15T..IV;LY51,YY52,61..T1,T2,T3,T4;LY61..TOY..15T..(ST,WT2)..IV ｱﾘ(ﾙ-ﾌ ﾍﾞﾝﾁﾚ-ﾀ) |
1 | ||
| 64111A - PANEL, BACK | ||||
| 64100-95040 |
LY50,60,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-95040 |
YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-25040 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-25010 |
YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64100-95450 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64100-25050 |
LY5#,61..T1,T2,T3,T4 ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 64100-25030 |
YY52,61..T1,T2,T3,T4 ｶｽﾀﾑ ｼﾖｳ |
1 | ||
| 64100-95041 |
LY5#,61..T1,T2,T3,T4 |
1 | ||
| 64122A - BAFFLE, DUST REAR BODY | ||||
| 64122-95A06 |
LY50,6#,YY51,61..TW |
1 | ||
| 64122-25010 |
LY5#,61,YY5#,61..T1,T2,T4 |
1 | ||
| 64122-37060 |
LY50,61,YY5#,61..TW |
1 | ||
| 64141A - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-9502103 |
LY50,6#,YY51,61..TOY..TW GRAY,TRIM8# |
1 | ||
| 64141-9502103 |
LY50,61,YY5#,61..TW GRAY,TRIM1# |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-25020 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64151-95409 |
LY50,61,YY51,61..TW |
1 | ||
| 64151-37010 |
LY50,61,YY51,61..TW |
1 | ||
| 64151-95028 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64151-25021 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 64151-37011 |
LY50,61,YY52,61..TW |
1 | ||
| 64159B - BRACKET, BACK FRAME SHIFT CONTROL LINK | ||||
| 64159-95A00 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64159-95A01 |
LY50,61,YY5#,61..TW |
1 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64171-95408 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64025-25020 |
LY50,61,YY5#,61..TW |
2 | ||
| 64171-95410 |
LY50,6#,YY51,61..TW |
2 | ||
| 64171A - BRACKET SUB-ASSY, REAR MOUNTING | ||||
| 64025-25010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64171-95408 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
2 | ||
| 64025-25020 |
LY50,61,YY5#,61..TW |
2 | ||
| 64171-95410 |
LY50,6#,YY51,61..TW |
2 | ||
| 64186 - RETAINER, REAR MOUNTING BRACKET | ||||
| 64186-95A00 |
LY5#,6#,YY5#,61 |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 *TT,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37020 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64812-95402 |
LY50,6#,YY51,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64811-95409 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37050 |
LY50,61,YY51,61..TW *TT,厚さ=4.0 |
2 | ||
| 64812-95402 |
LY50,61,YY52,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95406 |
LY5#,61,YY52,61 |
1 | ||
| 64831-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64832-95010 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 64832-95013 |
LY50,6#,YY5#,61..TW |
1 | ||
| Common parts | ||||
| 90105-06089 | ||||
| 90467-08033 | ||||
| 90950-01029 | ||||
| Linked diagrams | ||||
| 6151 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 *TT,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37020 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64812-95402 |
LY50,6#,YY51,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64811-95409 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37050 |
LY50,61,YY51,61..TW *TT,厚さ=4.0 |
2 | ||
| 64812-95402 |
LY50,61,YY52,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-37010 |
LY5#,61,YY5#,61..T1,T2,T3,T4 *TT,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-95409 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37020 |
LY5#,61,YY52,61..T1,T2,T3,T4 *TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64812-95402 |
LY50,6#,YY51,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64811-95409 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 *TEM,厚さ=3.5 |
1 | ||
| 64811-37050 |
LY50,61,YY51,61..TW *TT,厚さ=4.0 |
2 | ||
| 64812-95402 |
LY50,61,YY52,61..TW *TEM,厚さ=4.0 |
2 | ||
| 64813 - GLASS, BACK WINDOW CORNER, RH | ||||
| 64814-37010 |
LY50,61,YY51,61..TW *TT,厚さ=4.0 |
1 | ||
| 64814-95400 |
LY50,6#,YY51,61..TW *TEM,厚さ=4.0 |
1 | ||
| 64814-95400 |
LY50,61,YY52,61..TW *TEM,厚さ=4.0 |
1 | ||
| 64814 - GLASS, BACK WINDOW CORNER, LH | ||||
| 64814-95400 |
LY50,6#,YY51,61..TW *TEM,厚さ=4.0 |
1 | ||
| 64814-95400 |
LY50,61,YY52,61..TW *TEM,厚さ=4.0 |
1 | ||
| 64814-37010 |
LY50,61,YY51,61..TW *TT,厚さ=4.0 |
1 | ||
| 64831 - WEATHERSTRIP, BACK WINDOW GLASS | ||||
| 64831-95406 |
LY5#,61,YY52,61 |
1 | ||
| 64831-95406 |
LY5#,6#,YY5#,61 |
1 | ||
| 64831A - WEATHERSTRIP, BACK WINDOW GLASS, UPPER | ||||
| 64831-95404 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64832 - KEY, BACK WINDOW WEATHERSTRIP | ||||
| 64832-95010 |
LY5#,6#,YY5#,61..T1,T2,T3,T4 |
1 | ||
| 64832-95010 |
LY5#,61,YY52,61..T1,T2,T3,T4 |
1 | ||
| 64832-95013 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64832A - WEATHERSTRIP, BACK WINDOW VERTICAL | ||||
| 64834-37010 |
LY50,61,YY5#,61..TW |
2 | ||
| 64832-95400 |
LY50,6#,YY51,61..TW |
2 | ||
| 64832A - WEATHERSTRIP, BACK WINDOW VERTICAL | ||||
| 64834-37010 |
LY50,61,YY5#,61..TW |
2 | ||
| 64832-95400 |
LY50,6#,YY51,61..TW |
2 | ||
| 64833A - WEATHERSTRIP, BACK WINDOW CENTER CHANNEL | ||||
| 64833-95400 |
LY50,6#,YY5#,61..TW 下側 |
1 | ||
| 64833-95401 |
LY50,6#,YY5#,61..TW 上側 |
1 | ||
| 64834C - WEATHERSTRIP, BACK WINDOW GLASS, LOWER | ||||
| 64834-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64835A - WEATHERSTRIP, BACK WINDOW GLASS, CENTER | ||||
| 64835-37010 |
LY50,61,YY5#,61..TW |
6 | ||
| 64835-37010 |
LY50,61,YY51,61..TW |
7 | ||
| 64837C - WEATHERSTRIP, BACK WINDOW CORNER GLASS | ||||
| 64837-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64837C - WEATHERSTRIP, BACK WINDOW CORNER GLASS | ||||
| 64837-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89101 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64839A - PACKING, BACK WINDOW | ||||
| 64839-89101 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64851 - STOP, BACK WINDOW SLIDE GLASS | ||||
| 64851-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64882 - FRAME, BACK WINDOW VERTICAL | ||||
| 64882-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64882 - FRAME, BACK WINDOW VERTICAL | ||||
| 64882-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64883 - FRAME, BACK WINDOW | ||||
| 64881-95400 |
LY50,6#,YY5#,61..TW |
1 | ||
| 64883A - CHANNEL, BACK WINDOW SLIDE | ||||
| 64883-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 64883A - CHANNEL, BACK WINDOW SLIDE | ||||
| 64883-95400 |
LY50,6#,YY5#,61..TW |
2 | ||
| 69370A - LOCK ASSY, BACK WINDOW | ||||
| 69370-89101 |
LY50,6#,YY5#,61..TW |
1 | ||
| 69374 - CATCH, BACK WINDOW LOCK | ||||
| 69374-89101 |
LY50,6#,YY5#,61..TW |
1 | ||
| 69375A - RETAINER, BACK WINDOW LOCK | ||||
| 69375-89102 |
LY50,6#,YY5#,61..TW |
2 | ||
| 69376B - PACKING, BACK WINDOW LOCK | ||||
| 69376-89101 |
LY50,6#,YY5#,61..TW |
2 | ||
| Common parts | ||||
| 93249-23008 | ||||
| 93520-54010 | ||||
| 93540-24012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
