YY61-MDPGT3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

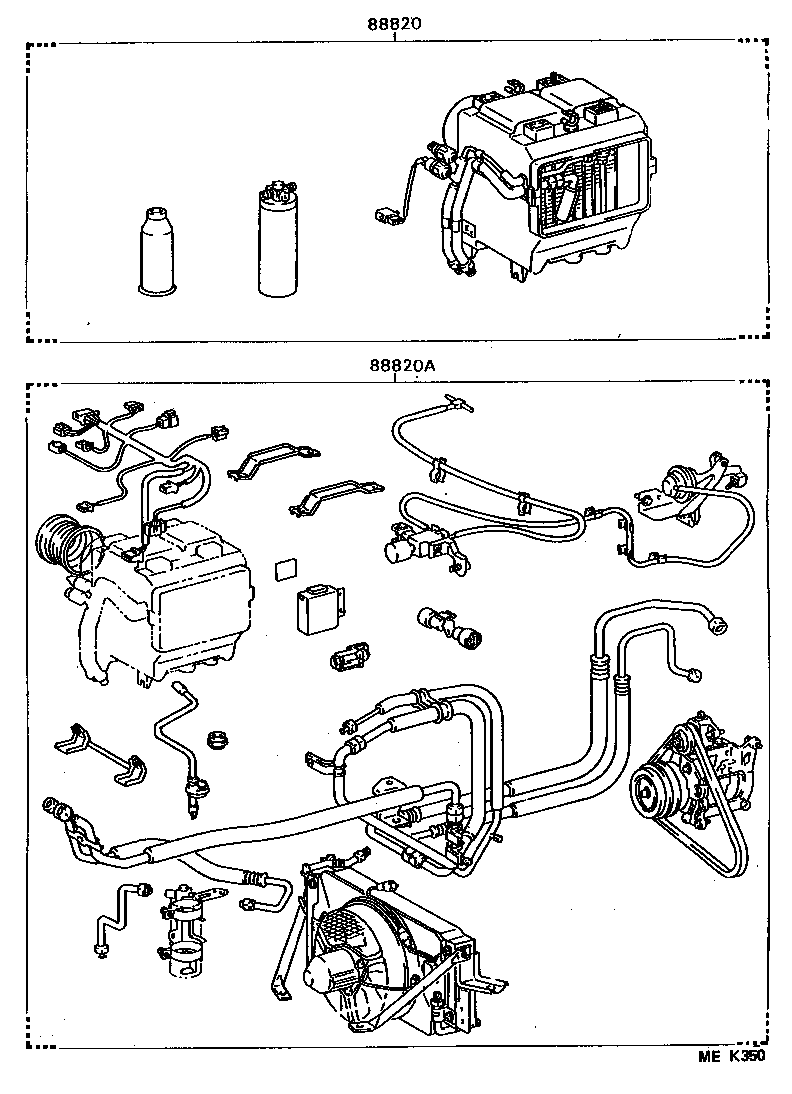

diagram 88820 88820A
Part # Description Qty Price
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-95004

LY5#,61

 1
88820-95003

YY5#,61

 1
88820-95003

LY50,60,YY5#,61

 1
88820-25080

LY5#,61,YY52,61

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-25010

YY5#,61

 1
88830-95005

YY5#,61

 1
88830-95007

LY5#,61

 1
88830-25130

LY5#,61

 1
88830-25080

YY52,61

 1

(8708- )

Click highlighted areas on diagram

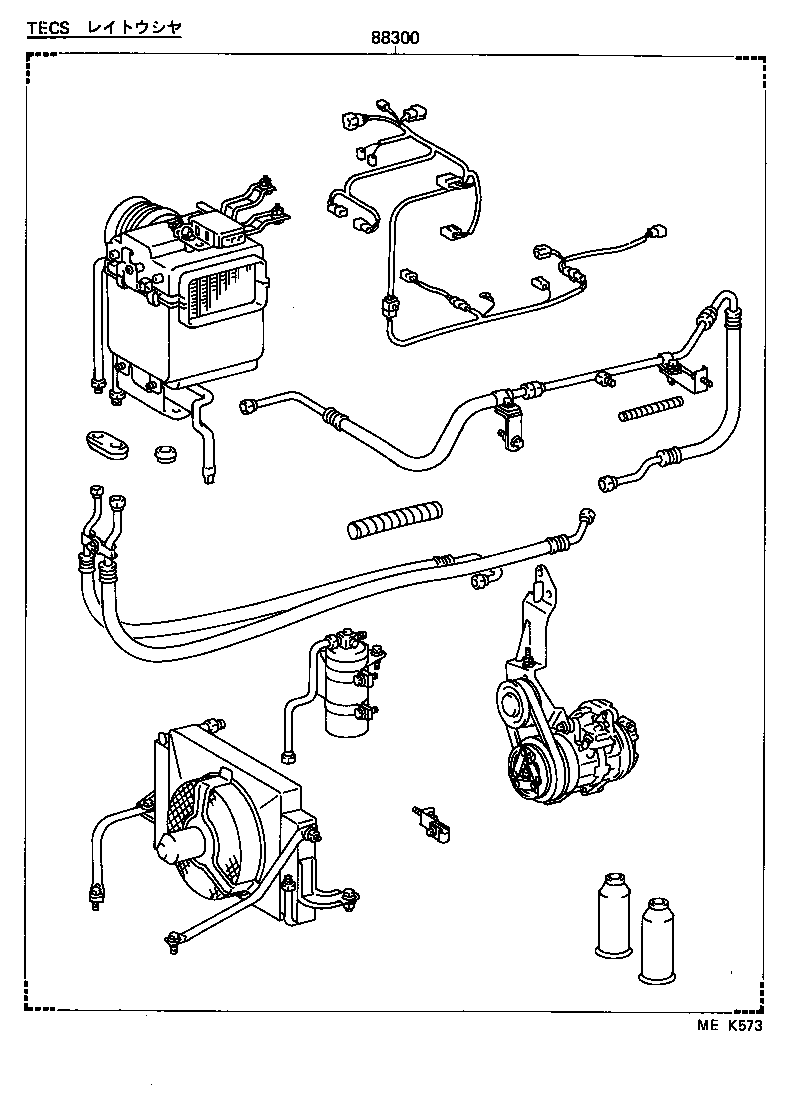

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-95072

LY50..WT1;LY51..CBU;LY51..ST..IV;LY50,61..T1,T3,TW;LY50..T2..ST..CBU;LY61..(T2,T4)..CBU

 1
