YY61-MDPGT3 (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 3Y
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

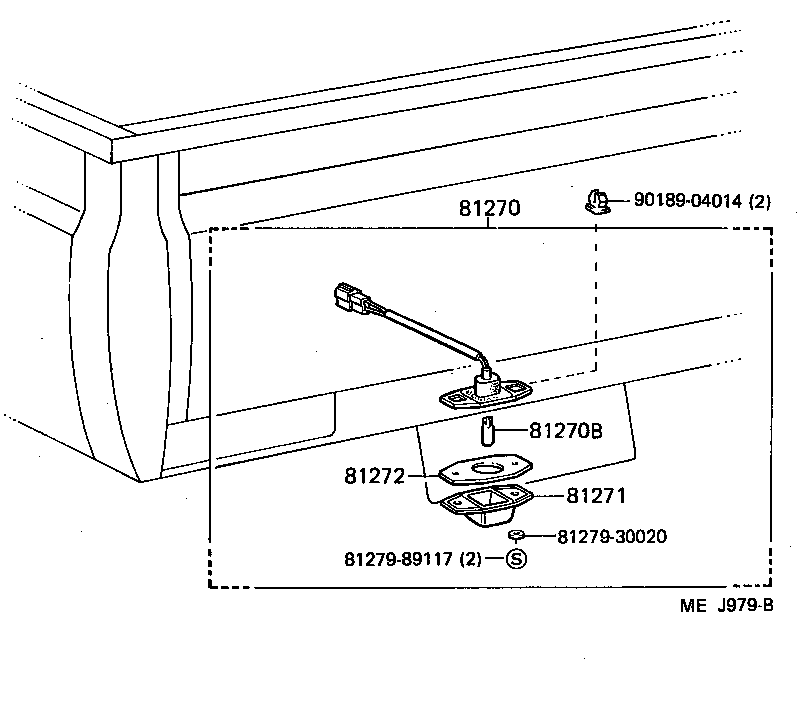

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 8127930020 8127989117 9018904014
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-95014

LY5#,6#,YY5#,61

 2
81270-25030

LY5#,61,YY5#,61

 2
81270-95014

LY5#,61,YY5#,61..IV

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

LY5#,6#,YY5#,61

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

LY5#,6#,YY5#,61

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

LY5#,6#,YY5#,61

 2
Common parts
81279-30020
81279-89117
90189-04014
