YY61-MDPGT (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LY60,YY61..125..WT1

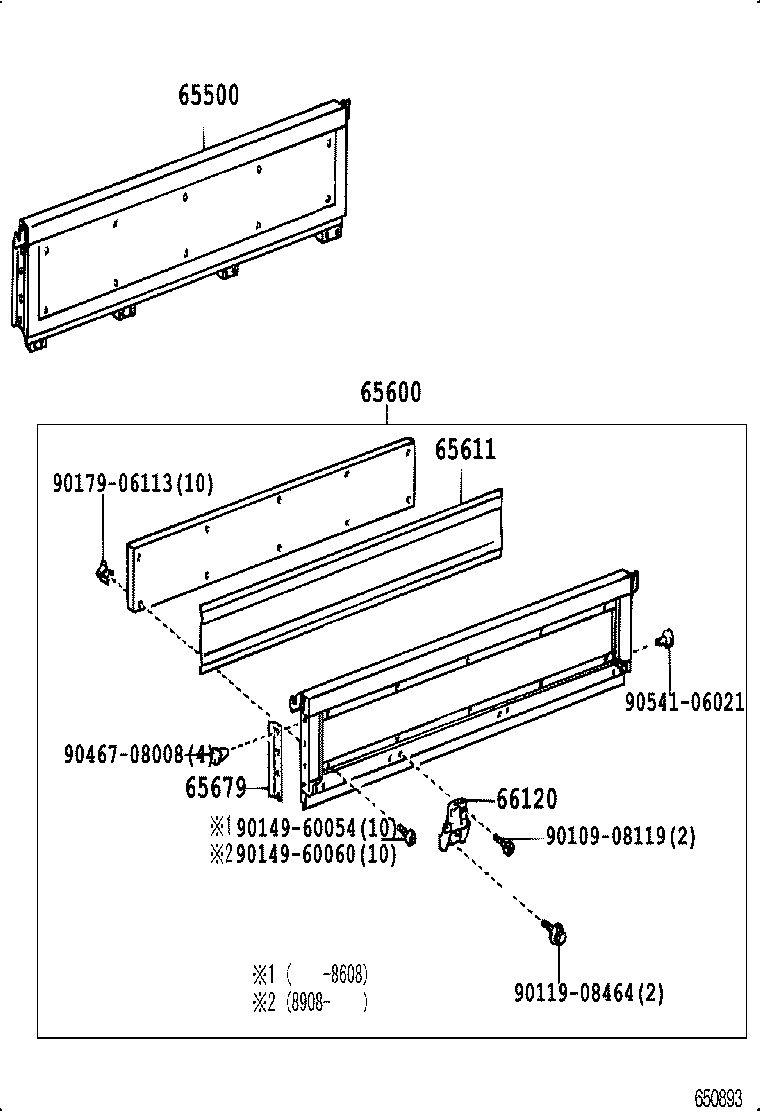

Click highlighted areas on diagram

diagram 65500 65600 65611 65679 66120 9010908119 9011908464 9014960054 9014960060 9017906113 9046708008 9054106021
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-92214

LY60,YY61..125..WT1

 1
65500-92217

LY60,YY61..125..WT1

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-92209

LY60,YY61..125..WT1

 1
65600-92214

LY60,YY61..125..WT1

 1
65600-92217

LY60,YY61..125..WT1

 1
65611 - PANEL, SIDE GATE
65621-92706

LY60,YY61..125..WT1

 2
65621-92712

LY60,YY61..125..WT1

 2
65679 - DRIP, SIDE GATE
65679-92706

LY50,60,YY52,61..TB

 2
65679-92701

LY50,60,YY52,61..TB

 2
66120 - HINGE ASSY, SIDE GATE
65010-92202

LY50,60,YY52,61..TB

RH,1ST,5TH

 2
65010-92702

LY50,60,YY52,61..TB

RH,2ND,3RD,4TH

 3
65020-92202

LY50,60,YY52,61..TB

LH,1ST,5TH

 2
65010-92701

LY50,60,YY52,61..TB

RH,2ND,3RD,4TH

 3
65020-92203

LY50,60,YY52,61..TB

LH,1ST,5TH

 2
65010-92203

LY50,60,YY52,61..TB

RH,1ST,5TH

 2
65020-92701

LY50,60,YY52,61..TB

LH,2ND,3RD,4TH

 3
65020-92700

LY50,60,YY52,61..TB

LH,2ND,3RD,4TH

 3
Common parts
90109-08119
90119-08464
90149-60054
90149-60060
90179-06113
90467-08008
90541-06021
