YY61-MDP (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T1,TW..ST

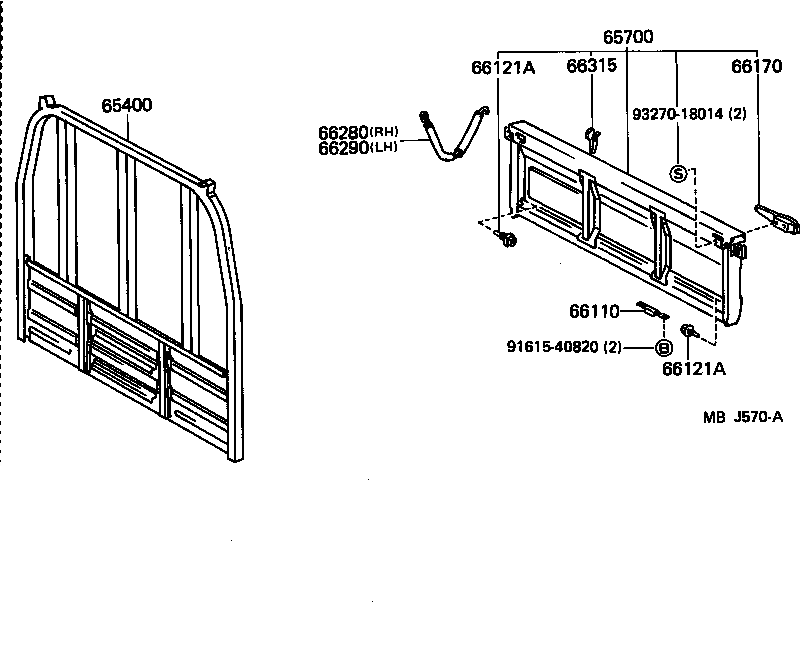

Click highlighted areas on diagram

diagram 65400 65700 66110 66121A 66121A 66170 66280 66290 66315 9161540820 9327018014
Part # Description Qty Price
65400 - FRAME ASSY, REAR BODY GUARD
65400-95058

LY50,60,YY50,61..TW1

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95030

LY50,60,YY50,61..(T1,TW)..ST

 1
66110 - HINGE ASSY, TAIL GATE
66110-95014

LY50,60,YY50,61..(T1,TW)..ST

 2
66121A - BOLT, TAIL GATE MALE
66121-95012

LY50,60,YY50,61..(T1,TW)..ST

 2
66121A - BOLT, TAIL GATE MALE
66121-95012

LY50,60,YY50,61..(T1,TW)..ST

 2
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-95402

LY50,60,YY50,61..(T1,TW)..ST

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95403

LY50,60,YY50,61..(T1,TW)..ST

 2
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95403

LY50,60,YY50,61..(T1,TW)..ST

 2
66315 - HOOK, ROPE
66311-95010

LY50,60,YY50,61..(T1,TW)..ST

TAIL GATE

 3
Common parts
91615-40820
93270-18014
