YY61-MDLTUJ (1985)
Toyota Toyoace/Dyna
Production
Aug 1985
-
Aug 1987
Engine
3YP
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )15T..CBR ; (8508- )YY50..DYN..IV ;(8508- )YY50..125..CBU ; (8508-

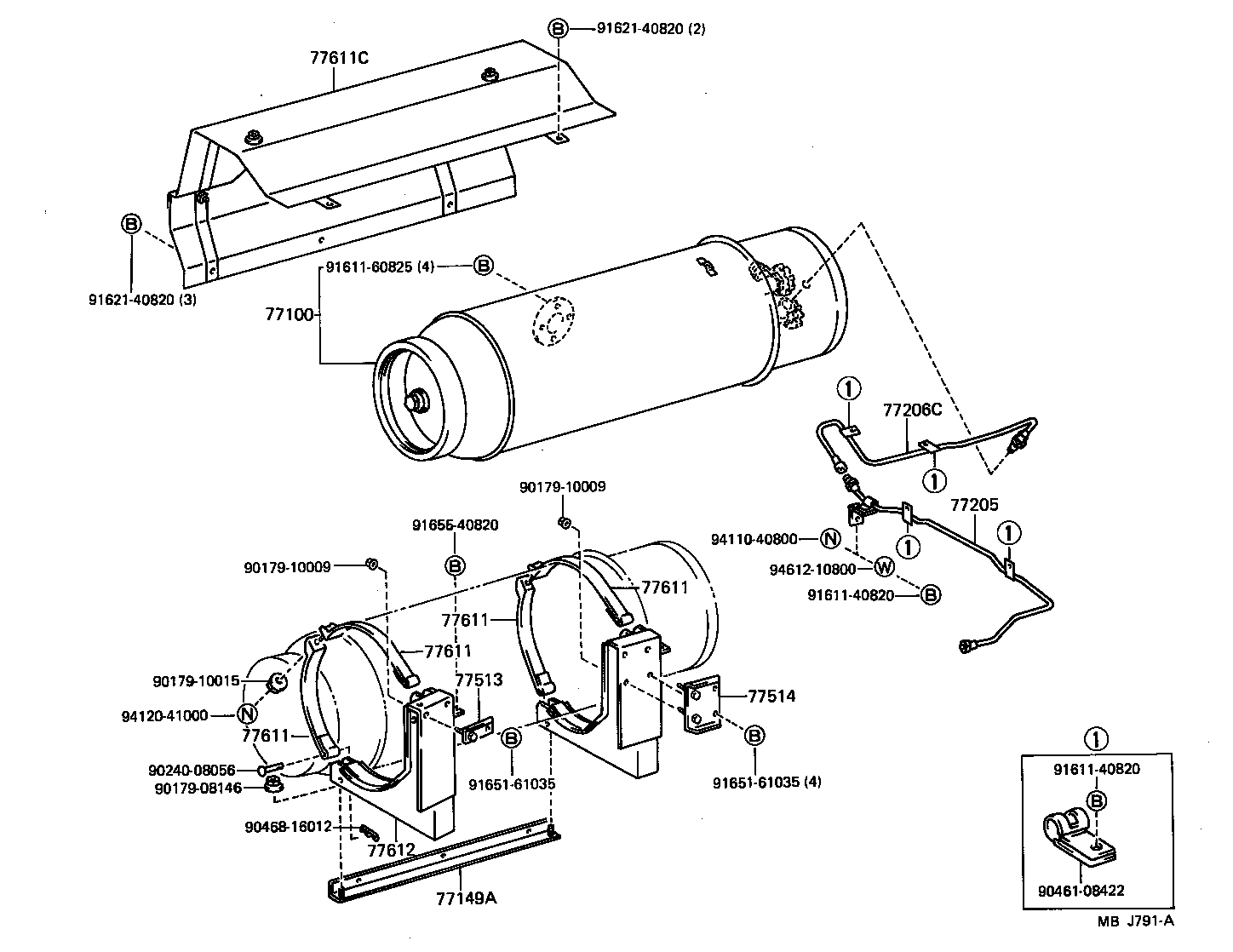

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77100-25290 |
YY61..LPG |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77252-25010 |
YY61..LPG |
1 | ||
| 77513A - RETAINER, TANK BRACKET | ||||
| 77513-25020 |
LY60,YY61 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-25020 |
YY61..LPG |
2 | ||
| 77603-25030 |
YY61..LPG |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-25020 |
YY61..LPG RR |
1 | ||
| 77501-25080 |
YY61..LPG FR |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90179-08143 | ||||
| 90179-08146 | ||||
| 90179-10016 | ||||
| 90179-12046 | ||||
| 90461-10616 | ||||
| 90464-00295 | ||||
| 90464-00314 | ||||
| 90467-12011 | ||||
| 90467-13007 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 91611-61030 | ||||
| 91651-40616 | ||||
| 91656-40816 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30400 | ||||
(8508- )LPG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77100-25290 |
YY61..LPG |
1 | ||
| 77149A - REINFORCEMENT, FUEL TANK SIDE | ||||
| 77149-25010 |
YY61..LPG |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77252-25010 |
YY61..LPG |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-25080 |
YY61..LPG |
1 | ||
| 77513 - RETAINER, LPG TANK BRACKET, FRONT | ||||
| 77513-25010 |
YY61..LPG |
1 | ||
| 77514 - RETAINER, LPG TANK BRACKET, REAR | ||||
| 77514-25010 |
YY61..LPG |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-25020 |
YY61..LPG |
2 | ||
| 77603-25030 |
YY61..LPG |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-25020 |
YY61..LPG |
2 | ||
| 77603-25030 |
YY61..LPG |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-25020 |
YY61..LPG |
2 | ||
| 77603-25030 |
YY61..LPG |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77603-25020 |
YY61..LPG |
2 | ||
| 77603-25030 |
YY61..LPG |
2 | ||
| 77611C - COVER, FUEL TANK GUARD | ||||
| 77601-25110 |
YY61..LPG..CBU |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-25020 |
YY61..LPG RR |
1 | ||
| 77501-25080 |
YY61..LPG FR |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 90179-10009 | ||||
| 90179-10015 | ||||
| 90240-08056 | ||||
| 90461-08422 | ||||
| 90468-16012 | ||||
| 91611-40820 | ||||
| 91611-60825 | ||||
| 91621-40820 | ||||
| 91651-61035 | ||||
| 91655-40820 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94612-10800 | ||||
