YY61-MDLTUJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3YP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3YP

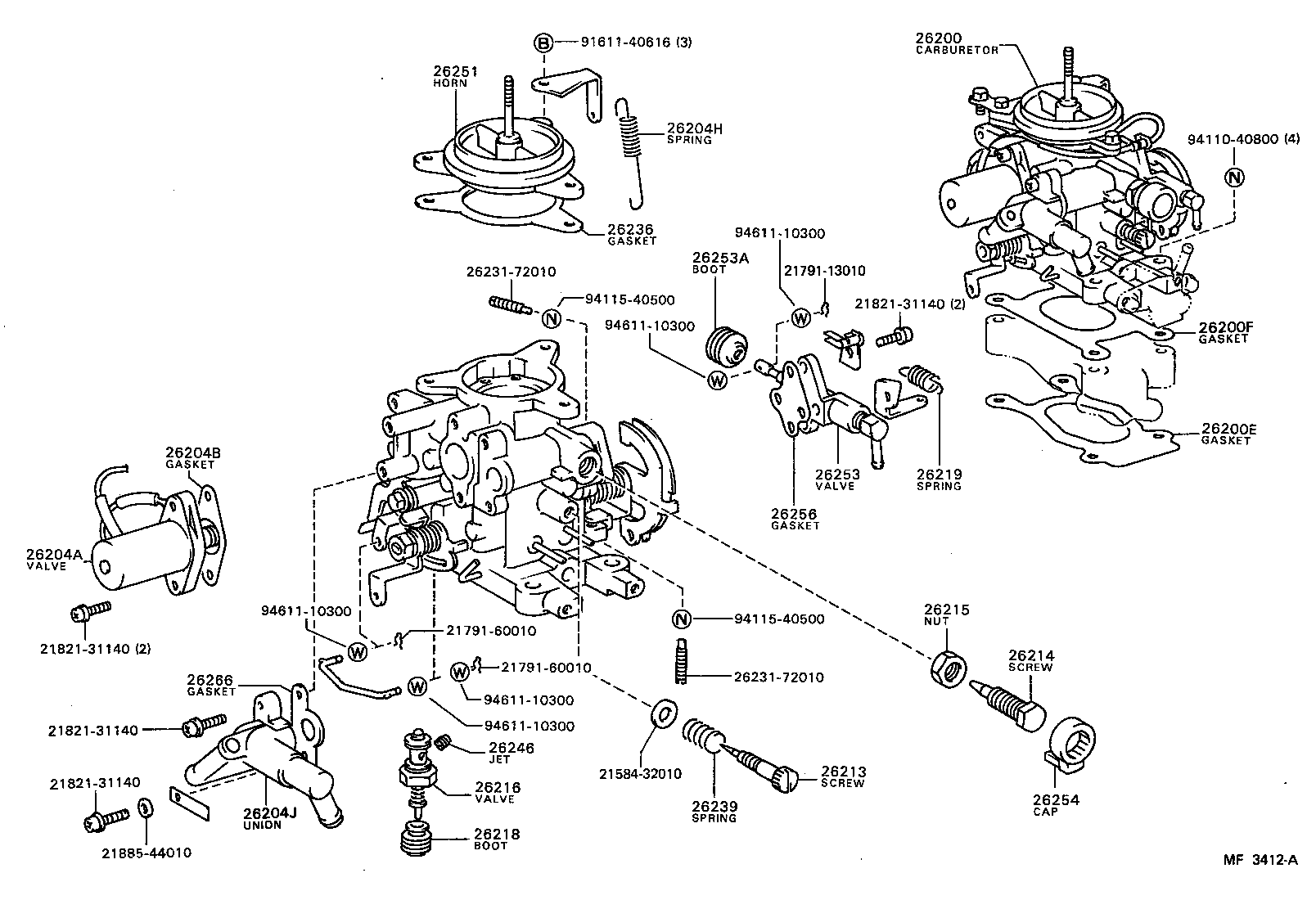

Click highlighted areas on diagram

diagram 2158432010 2179113010 2179160010 2179160010 2182131140 2182131140 2182131140 2182131140 2188544010 26200 26200E 26200F 26204A 26204B 26204H 26204J 26213 26214 26215 26216 26218 26219 2623172010 2623172010 26236 26239 26246 26251 26253 26253A 26254 26256 26266 9161140616 9411040800 9411540500 9411540500 9461110300 9461110300 9461110300 9461110300 9461110300
Part # Description Qty Price
26200 - CARBURETOR ASSY, LPG
26200-73030

3YP..YY61

 1
26200E - GASKET, CARBURETOR, NO.1
21911-72010

3YP..YY61

 1
26200F - GASKET, CARBURETOR, NO.2
21916-72010

3YP..YY61

 1
26204A - VALVE, THROTTLE SOLENOID(FOR LPG)
26208-41050

3YP..YY61

 1
26204B - GASKET, SOLENOID VALVE(FOR LPG)
26236-44020

3YP..YY61

 1
26204H - SPRING, THROTTLE RETURN(FOR LPG)
26248-72010

3YP..YY61

 1
26204J - UNION, NO.2 FUEL HOSE(FOR LPG)
26249-73030

3YP..YY61

 1
26213 - SCREW, ADJUST
26214-44060

3YP..YY61

 1
26214 - SCREW, POWER ADJUST
26214-72010

3YP..YY61

 1
26215 - NUT, POWER ADJUST
26215-41010

3YP..YY61

 1
26216 - VALVE, POWER
26216-73010

3YP..YY61

 1
26218 - BOOT(FOR POWER VALVE)
26218-44061

3YP..YY61

 1
26219 - SPRING, POWER VALVE
26219-72010

3YP..YY61

 1
26236 - GASKET, AIR HORN
26236-72010

3YP..YY61

 1
26239 - SPRING
26239-44060

3YP..YY61

 1
26246 - JET
26246-73030

3YP..YY61

 1
26251 - HORN, AIR
26251-72010

3YP..YY61

 1
26253 - VALVE, CHANGE(FOR SLOW)
26253-73030

3YP..YY61

 1
26253A - BOOT(FOR CHANGE VALVE)
26218-44061

3YP..YY61

 1
26254 - CAP, POWER SCREW LIMIT
26254-44060

3YP..YY61

 1
26256 - GASKET, CHANGE VALVE
26256-72010

3YP..YY61

 1
26266 - GASKET, FUEL INLET UNION
26266-44060

3YP..YY61

 1
Common parts
21584-32010
21791-13010
21791-60010
21821-31140
21885-44010
26231-72010
91611-40616
94110-40800
94115-40500
94611-10300
