YY61-MDLTU3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3YP
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )3YP

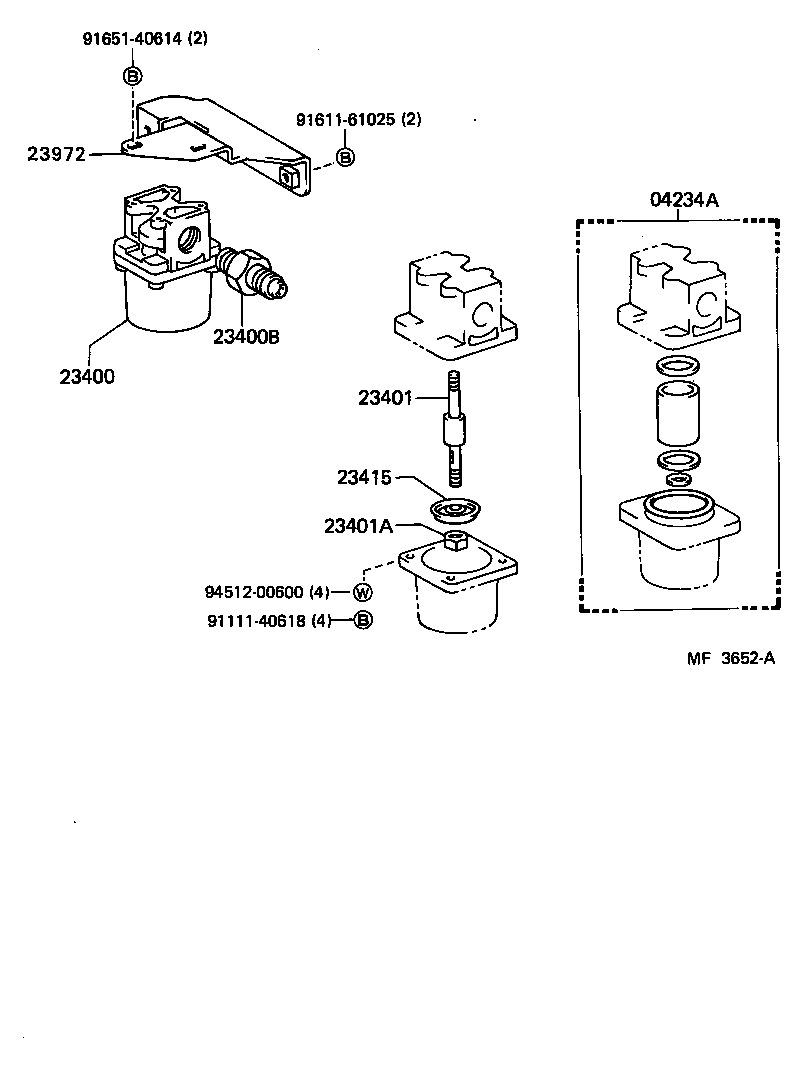

Click highlighted areas on diagram

diagram 04234A 23400 23400B 23401 23401A 23415 23972 9111140618 9161161025 9165140614 9451200600
Part # Description Qty Price
04234A - ELEMENT KIT, LPG
04234-44012

3YP..YY61

 1
23400 - FILTER ASSY, LPG
23400-40024

3YP..YY61

 1
23400B - UNION, LPG FILTER INLET
90404-14064

3YP..YY61

 1
23401 - BOLT SUB-ASSY, STUD(FOR LPG FILTER)
23401-40020

3YP..YY61

 1
23401A - NUT(FOR LPG FILTER STUD BOLT SET)
94115-40500

3YP..YY61

 1
23415 - PLATE, ELEMENT
23415-40010

3YP..YY61

 1
23972 - BRACKET, FILTER & SOLENOID VALVE
23972-73050

3YP..YY61

 1
Common parts
91111-40618
91611-61025
91651-40614
94512-00600
