YY61-MDLTJ3 (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

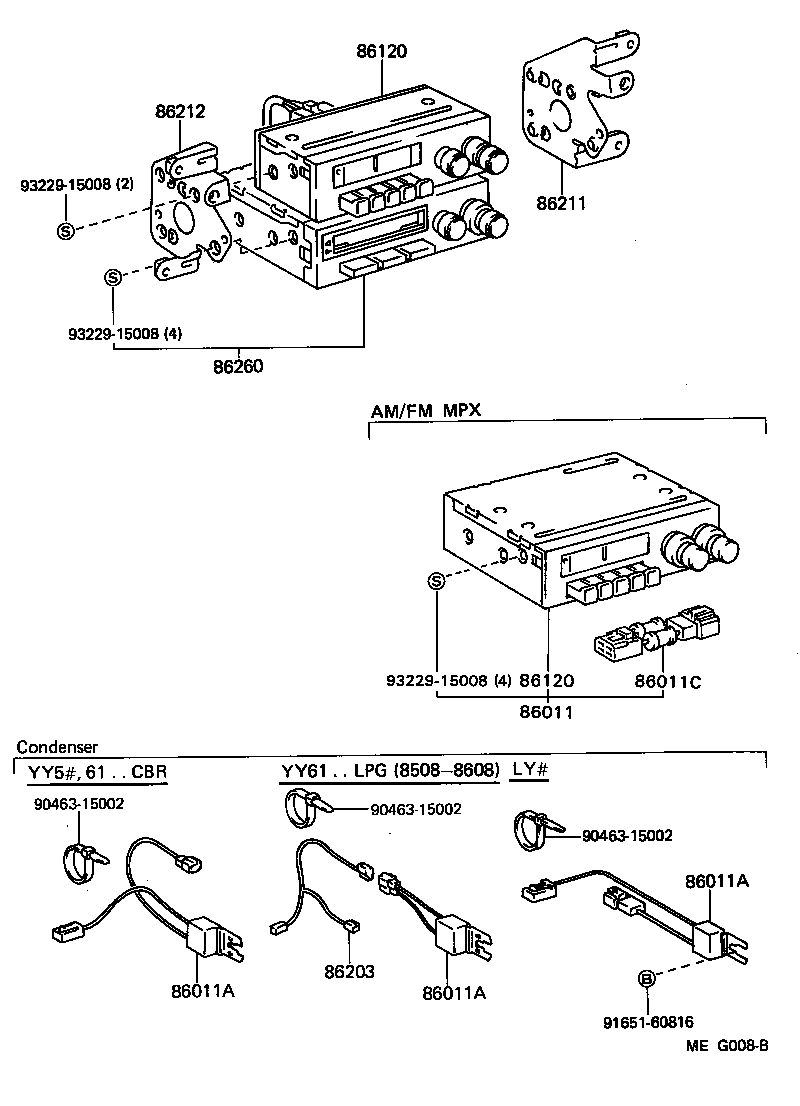

Click highlighted areas on diagram

diagram 86011 86011A 86011A 86011A 86011C 86120 86120 86203 86211 86212 86260 9046315002 9046315002 9046315002 9165160816 9322915008 9322915008 9322915008
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-95423

LY50,60,YY5#,61

AM/FM MPX

 1
86011-95425

LY50,60,YY5#,61

AM/FM MPX

 1
86011A - CONDENSER, RADIO SETTING
90980-04059

YY5#,61..CBR

 1
86011A - CONDENSER, RADIO SETTING
90980-04059

YY5#,61..CBR

 1
86011A - CONDENSER, RADIO SETTING
90980-04059

YY5#,61..CBR

 1
86011C - FILTER, NOISE
90980-05049

LY50,60,YY5#,61

 1
86120 - RECEIVER ASSY, RADIO
86120-16530

LY50,60,YY5#,61

MATSUSHITA,ID=5010,AM

 1
86120-17010

LY50,60,YY5#,61

AM

 1
86120-17020

LY50,60,YY5#,61

AM/FM MPX

 1
86120-89131

LY50,60,YY5#,61

MATSUSHITA,AM/FM MPX

 1
86120 - RECEIVER ASSY, RADIO
86120-16530

LY50,60,YY5#,61

MATSUSHITA,ID=5010,AM

 1
86120-17010

LY50,60,YY5#,61

AM

 1
86120-17020

LY50,60,YY5#,61

AM/FM MPX

 1
86120-89131

LY50,60,YY5#,61

MATSUSHITA,AM/FM MPX

 1
86211 - BRACKET, RADIO, NO.1
86211-95406

LY50,60,YY5#,61

 1
86212 - BRACKET, RADIO, NO.2
86212-95406

LY50,60,YY5#,61

 1
86260 - TAPE PLAYER ASSY
86021-95413

LY50,60,YY5#,61

 1
86021-95411

LY50,60,YY5#,61

 1
Common parts
90463-15002
91651-60816
93229-15008
