YY61-MDLTJ (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

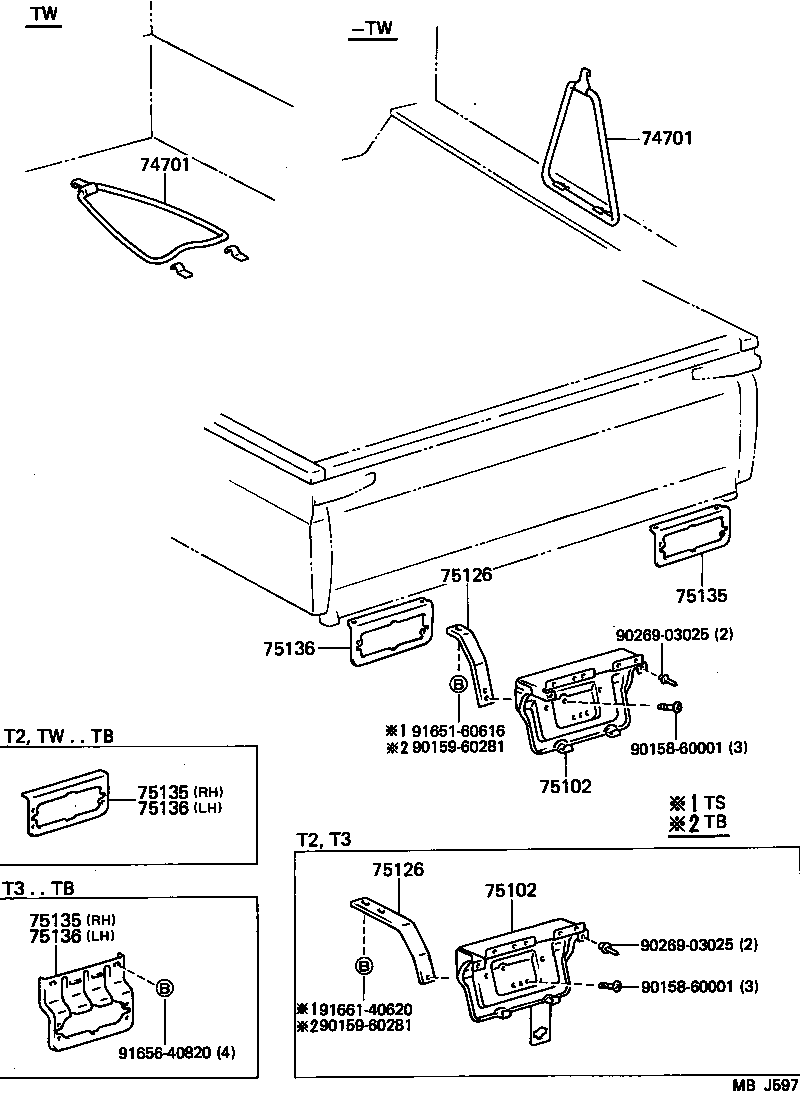

Click highlighted areas on diagram

diagram 74701 74701 75102 75102 75126 75126 75135 75135 75135 75136 75136 75136 9015860001 9015860001 9015960281 9015960281 9026903025 9026903025 9165160616 9165640820 9166140620
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
58705-95A01

LY50,60,YY5#,61

 1
74701 - CLAMP SUB-ASSY, TOOL BAG
58705-95A01

LY50,60,YY5#,61

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY50,60,YY5#,61..T1,T2,TW

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY50,60,YY5#,61..T1,T2,TW

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95020

LY50,60,YY5#,61..TS..WT1

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95020

LY50,60,YY5#,61..TS..WT1

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LY50,60,YY5#,61..(T2,T3)..TS

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LY50,60,YY5#,61..(T2,T3)..TS

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75135-95A02

LY50,60,YY5#,61..(T2,T3)..TS

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LY50,60,YY5#,61..(T2,T3)..TS

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LY50,60,YY5#,61..(T2,T3)..TS

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75135-95A02

LY50,60,YY5#,61..(T2,T3)..TS

 1
Common parts
90158-60001
90159-60281
90269-03025
91651-60616
91656-40820
91661-40620
